Replace Komatsu excavator filter element

Komatsu excavator filter element supporting models are available from stock: Komatsu oil filter element, Komatsu diesel filter element, Komatsu air filter element, Komatsu hydraulic oil filter element, Komatsu oil-water separator filter element and other types of filter elements, ensuring low price, fast supply and quality in the industry comparison excellent.

Care and maintenance of Komatsu excavator filter elements

1. Daily maintenance: check, clean or replace the air filter element; clean the inside of the cooling system; check and tighten the track shoe bolts; check and adjust the back tension of the track; check the excavator air intake heater; replace the bucket teeth; adjust the excavator shovel Bucket clearance; check the front window cleaning fluid level; check and adjust the excavator air conditioner; clean the floor in the cab; replace the crusher filter element (optional).

2. After the new excavator works for 250 hours, the fuel filter element and the additional fuel filter element should be replaced; check the clearance of the excavator engine valve.

3. When cleaning the inside of the cooling system, after the engine is fully cooled, slowly loosen the water injection port cover to release the internal pressure of the water tank, and then water can be discharged; do not clean the engine while the engine is working, the high-speed rotating fan will cause danger; when cleaning or When replacing the coolant, the machine should be parked on a level surface; the coolant and corrosion inhibitor should be replaced according to the table.

Precautions for installing filter elements in Komatsu excavators

1. Before installation, check whether the filter element is damaged and whether the O-ring is in good condition.

2. When installing the filter element, keep your hands clean, or wear clean gloves.

3. Before installation, apply Vaseline on the outside of the O-ring to facilitate installation.

4. When installing the filter element, do not remove the packaging plastic bag. Pull the plastic bag backwards. After the upper head is leaked out, hold the lower head of the filter element with the left hand and the filter element body with the right hand, and put the filter element into the filter element seat of the tray. , press down firmly, remove the plastic bag after installation.

The Komatsu excavator air filter should be replaced or cleaned at least every 2000 hours or when the warning light is on. The outer filter element can be washed up to 6 times and must then be replaced. The inner filter element is a one-time item, which cannot be cleaned and should be replaced directly. If the filter is damaged, it must also be replaced.

Use clean, dry compressed air with a maximum pressure of 5 BAR for compressed air. Do not bring the nozzle closer to 3 – 5 cm. Blow the filter clean from the inside along the pleats.

Komatsu diesel filter 6732-71-6111 Excavator filter is suitable for PC200/200-7/200-8/220-8/240-8 and other models

Komatsu excavator filter element model

6610-70-6202 175-60-27380 154-19-12130 600-411-1010 600-181-5430 600-181-5450 3313279 3313283 3315844 154-19-12130 600-461-010 6 50-5150 6610-51-5050 6610-72-8600 175-43-14130 6710-61-8211 600-181-4200 600-181-5450 6120-51-5103(3) 6610-51-5050 6127-71- 6090 175-60-27380 175-49-11580 6128-81-7041 6127-81-7412 CULF670 600-311-7110/1 07063-01100 600-181-4400 6127-81-7412 600-211-1 600-311-8291 175-49-11580 600-411-1010 600-181-4400 6127-81-7412 600-311-8291(2) 6128-81-7051 600-181-5450 6120-51-5103(3 ) 6110-70-6202 07063-01142 175-49-11580 6128-81-7042 6127-81-7412 600-211-1230(2)07063-01142 175-49-11580 600-411-1010 600-18 6127-81-7412 600-181-5480 6127-81-7412 600-311-8291 175-49-11580 600-411-1010 600-181-5480 6127-81-7412 6610-51-5050 6610-72-8 195-60-16320 6128-81-7042(2) 6127-81-7412

Komatsu Excavator Filter Features

1. High-quality filter paper, high filtration efficiency and large ash capacity.

2. The number of folds of the filter element meets the service life requirements.

3. The first and last folds of the filter element are connected by clips or special glue.

4. The material of the central tube is excellent, and it is processed into a spiral shape, which is not easy to deform.

5. High-quality filter glue, so that the filter paper and the end cap are well sealed.

Komatsu filter element involves: Komatsu oil filter element, Komatsu diesel filter element, Komatsu air filter element, Komatsu hydraulic oil filter element, Komatsu oil-water separator filter element and other types of filter elements, ensuring low price, fast supply and excellent quality in the industry comparison.

Product description

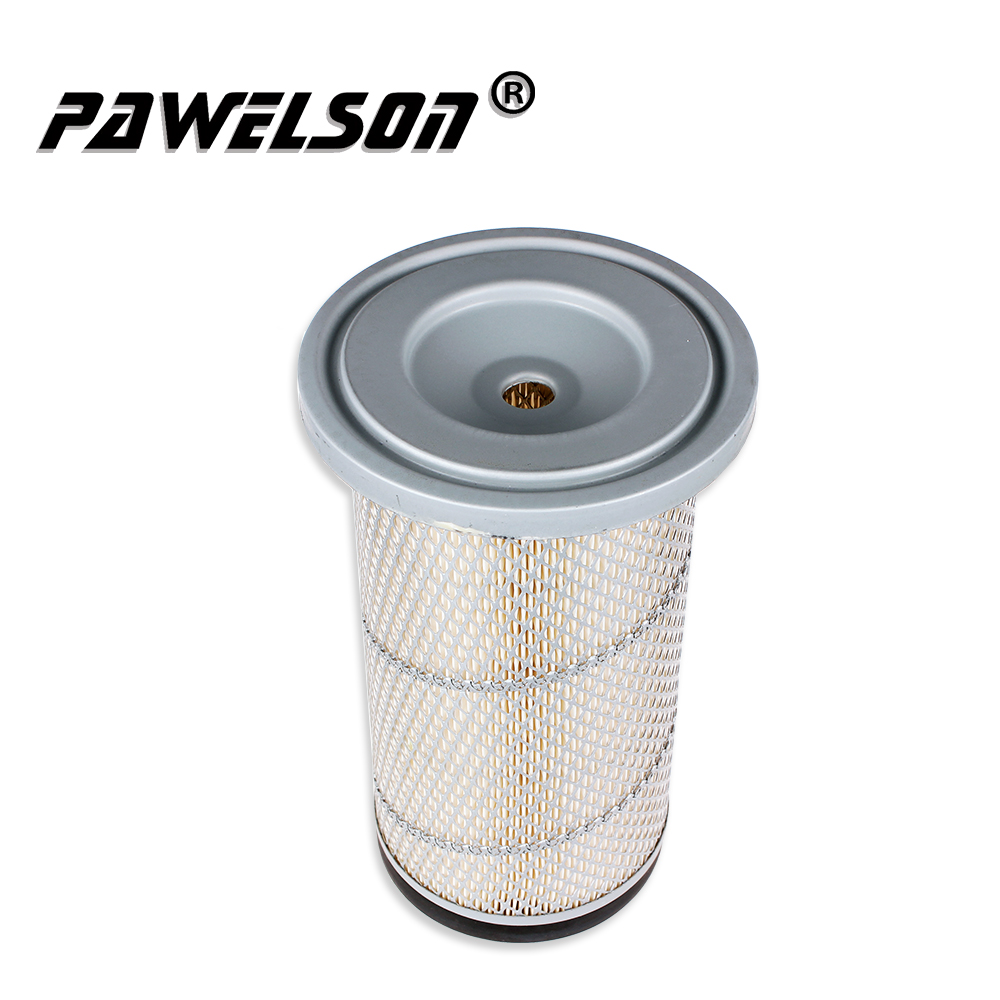

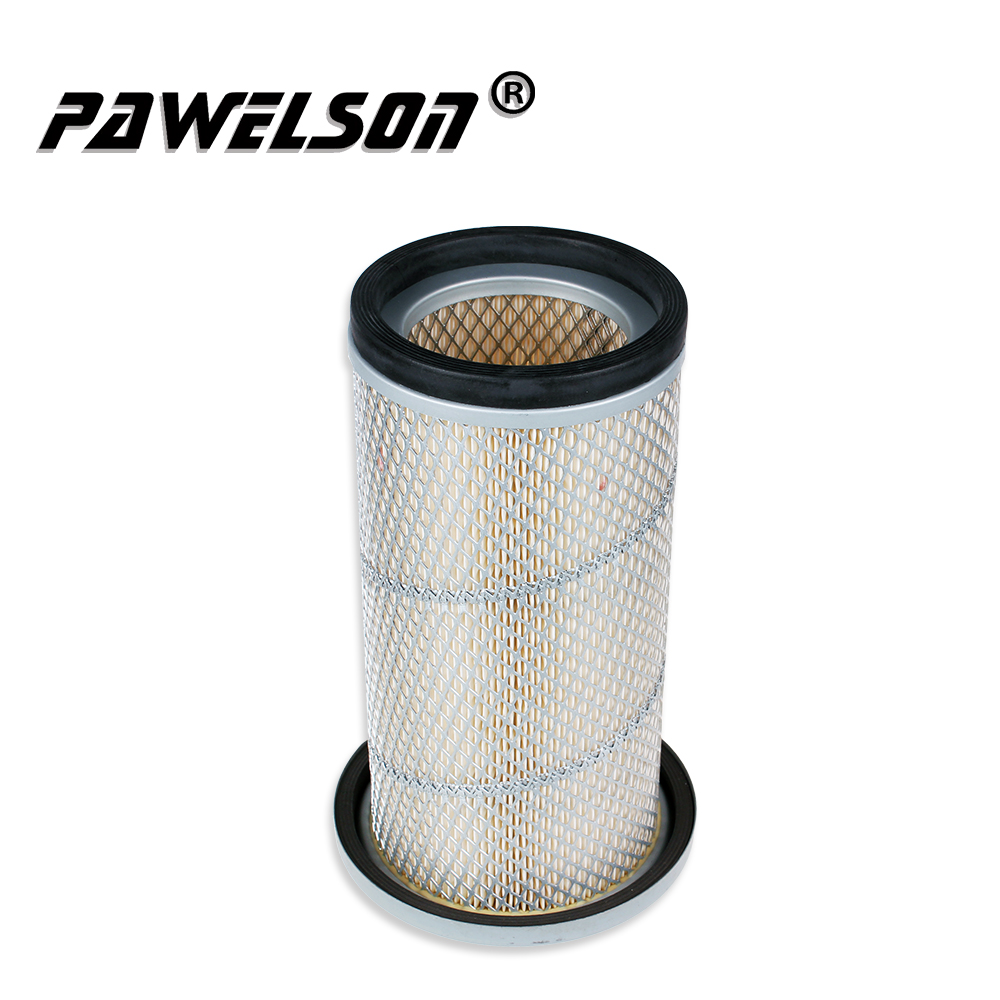

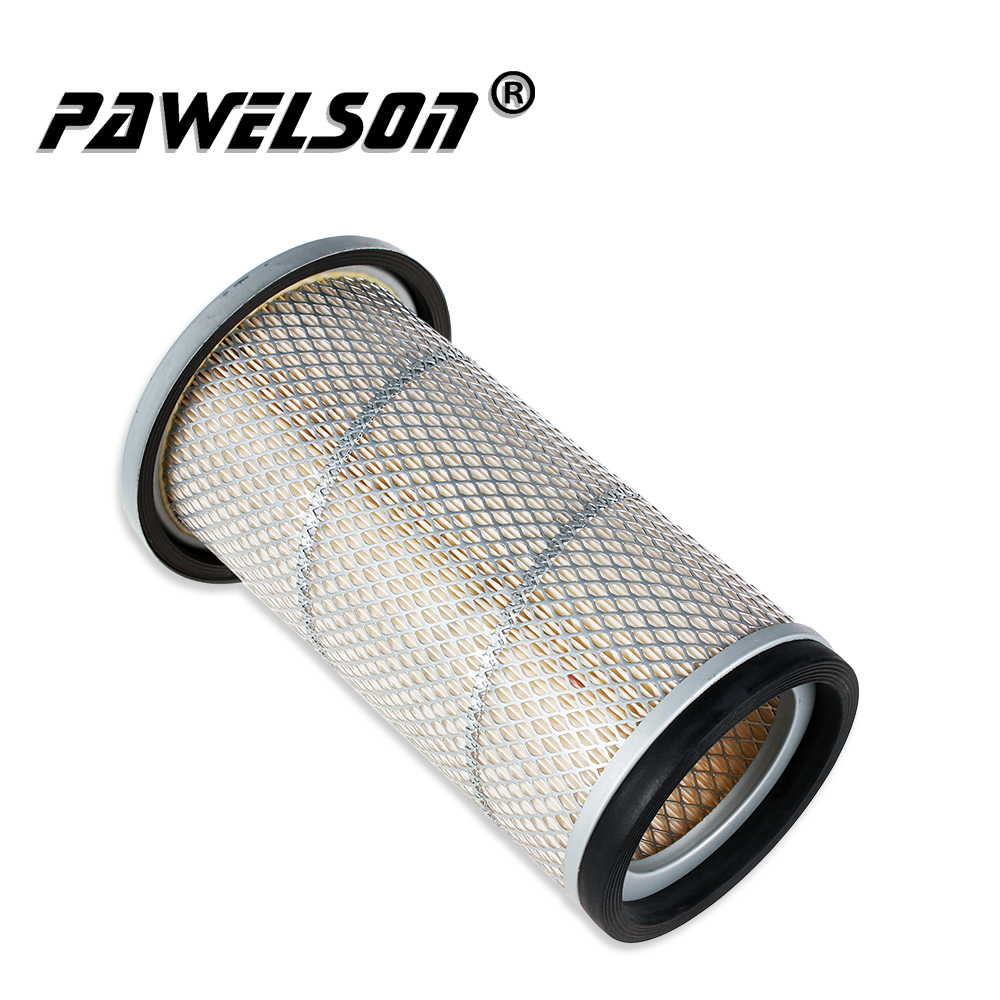

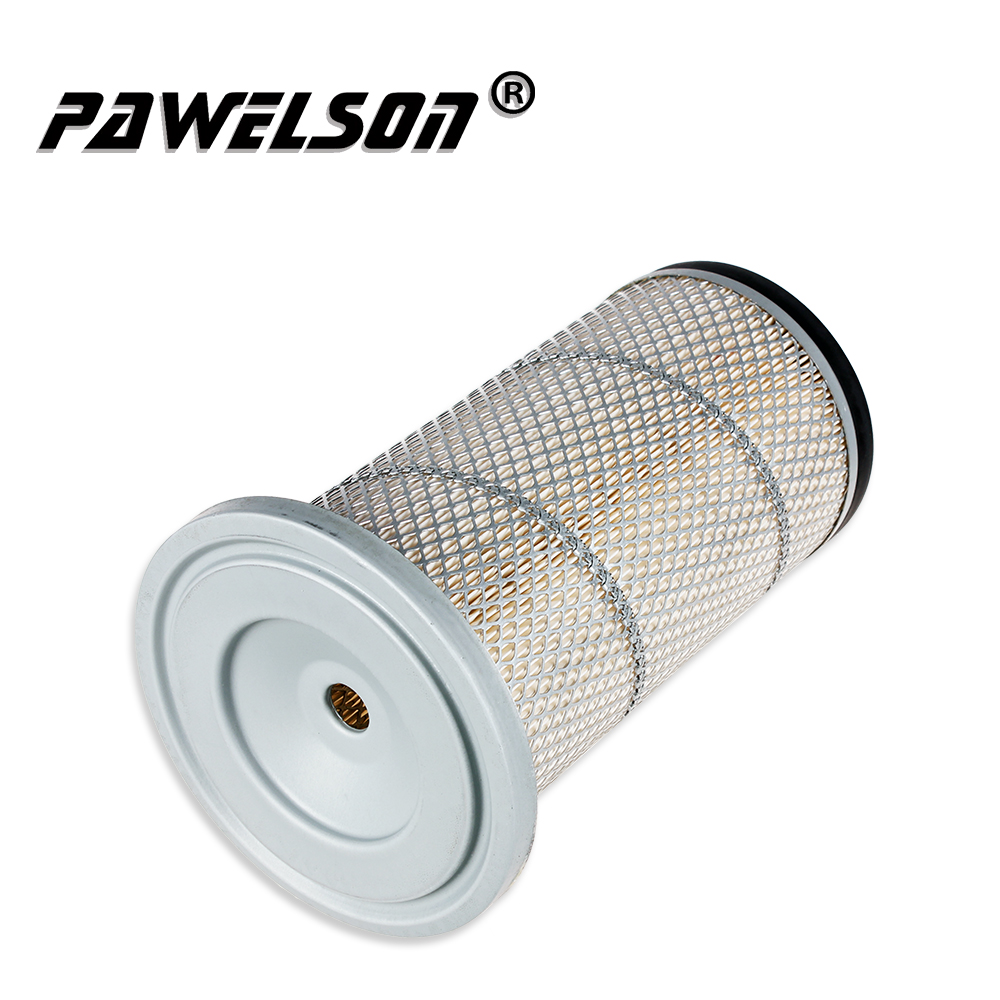

SK-1028A Replace Komatsu excavator air filter element 600-181-6340 600-181-6350 3214308300 9126106200
