What are the advantages of an air filter?
The engine needs to suck in a lot of air during the working process. If the air is not filtered, the dust suspended in the air will be sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious “pulling the cylinder”, which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or intake pipe to filter out dust and sand in the air, ensuring that sufficient and clean air enters the cylinder
According to the filtration principle, air filters can be divided into filter type, centrifugal type, oil bath type and composite type.
During maintenance, the paper filter element must not be cleaned in oil, otherwise the paper filter element will fail, and it is easy to cause a speeding accident. During maintenance, only the vibration method, the soft brush removal method (to brush along the wrinkle) or the compressed air blowback method can only be used to remove the dust and dirt attached to the surface of the paper filter element. For the coarse filter part, the dust in the dust collecting part, the blades and the cyclone pipe should be removed in time. Even if it can be carefully maintained every time, the paper filter element cannot fully restore its original performance, and its air intake resistance will increase. Therefore, generally, when the paper filter element needs to be maintained for the fourth time, it should be replaced with a new filter element. If the paper filter element is cracked, perforated, or the filter paper and end cap are degummed, they should be replaced immediately.

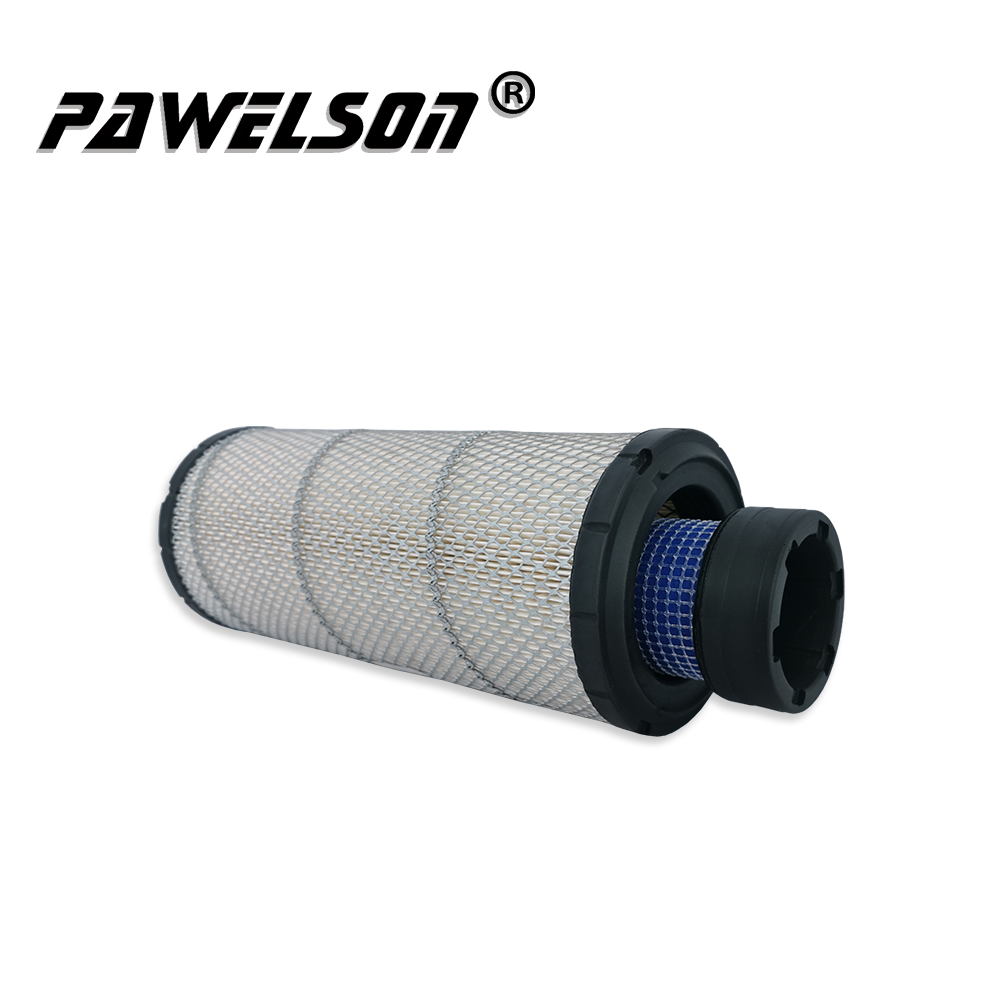

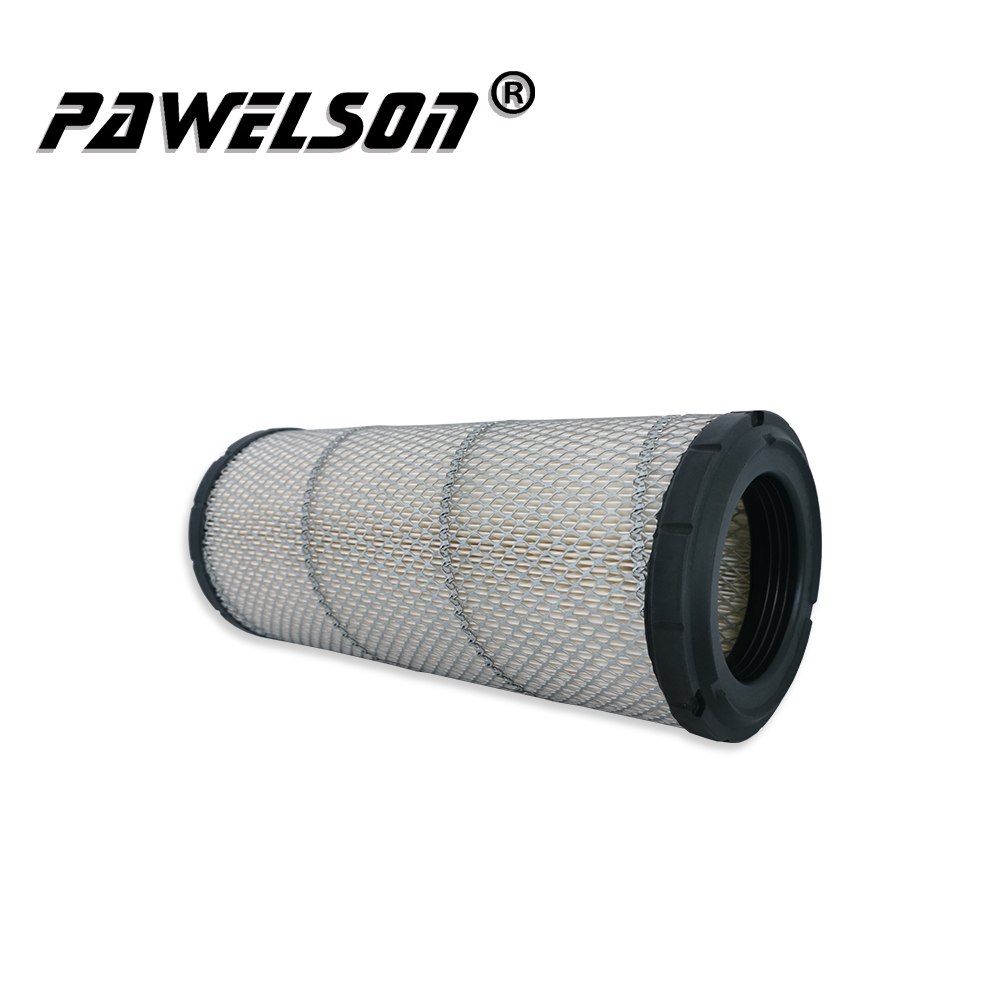

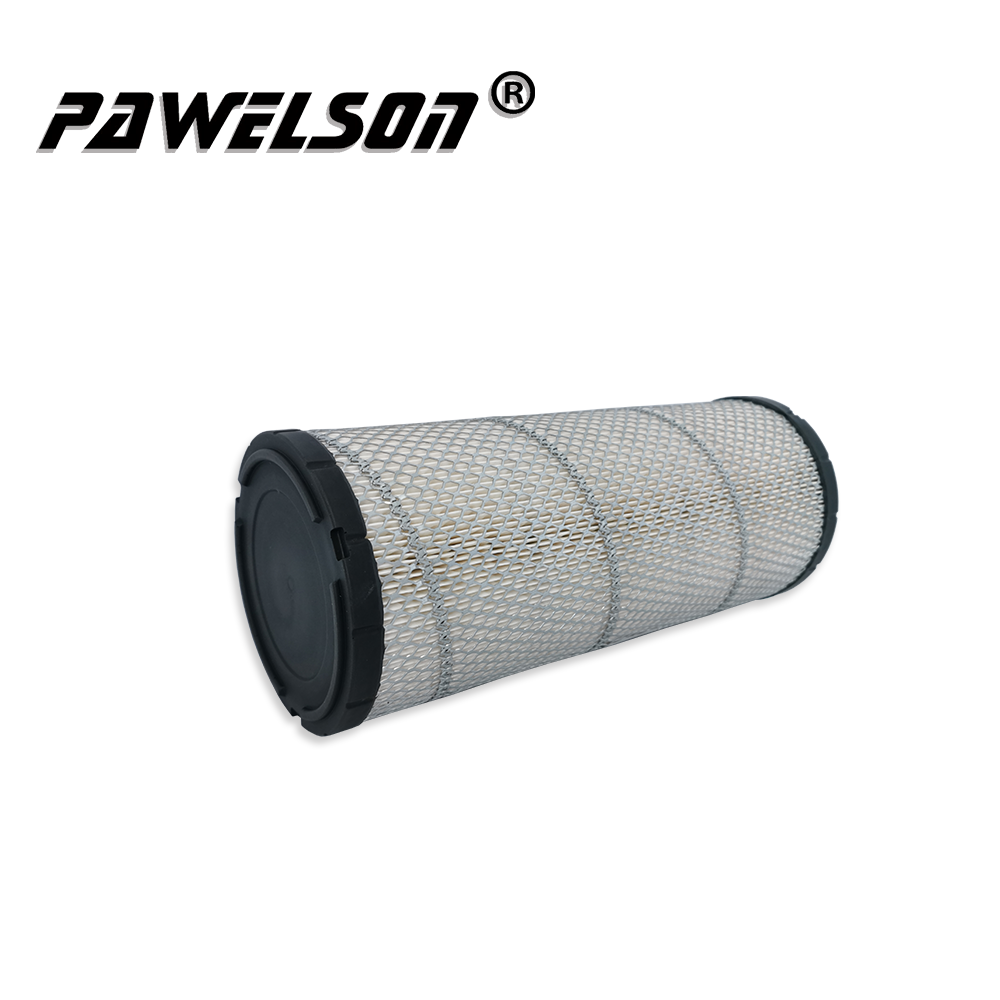

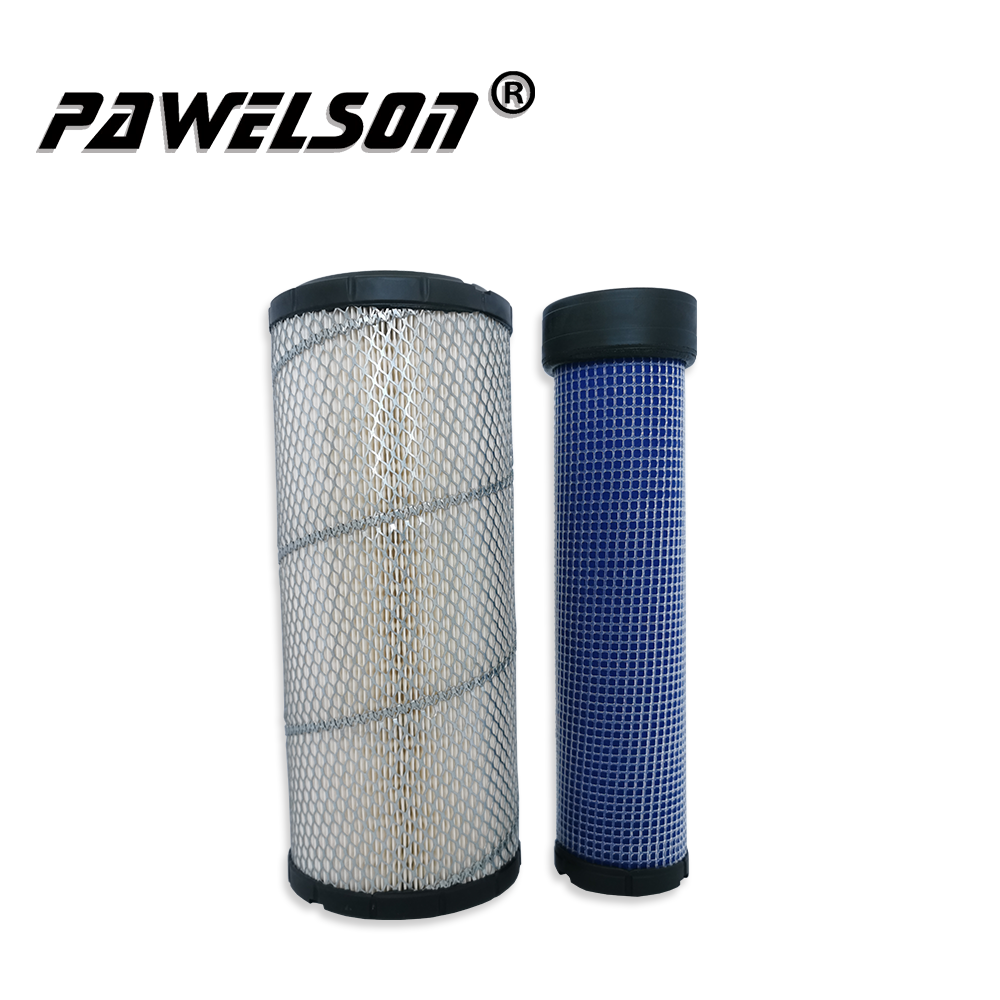

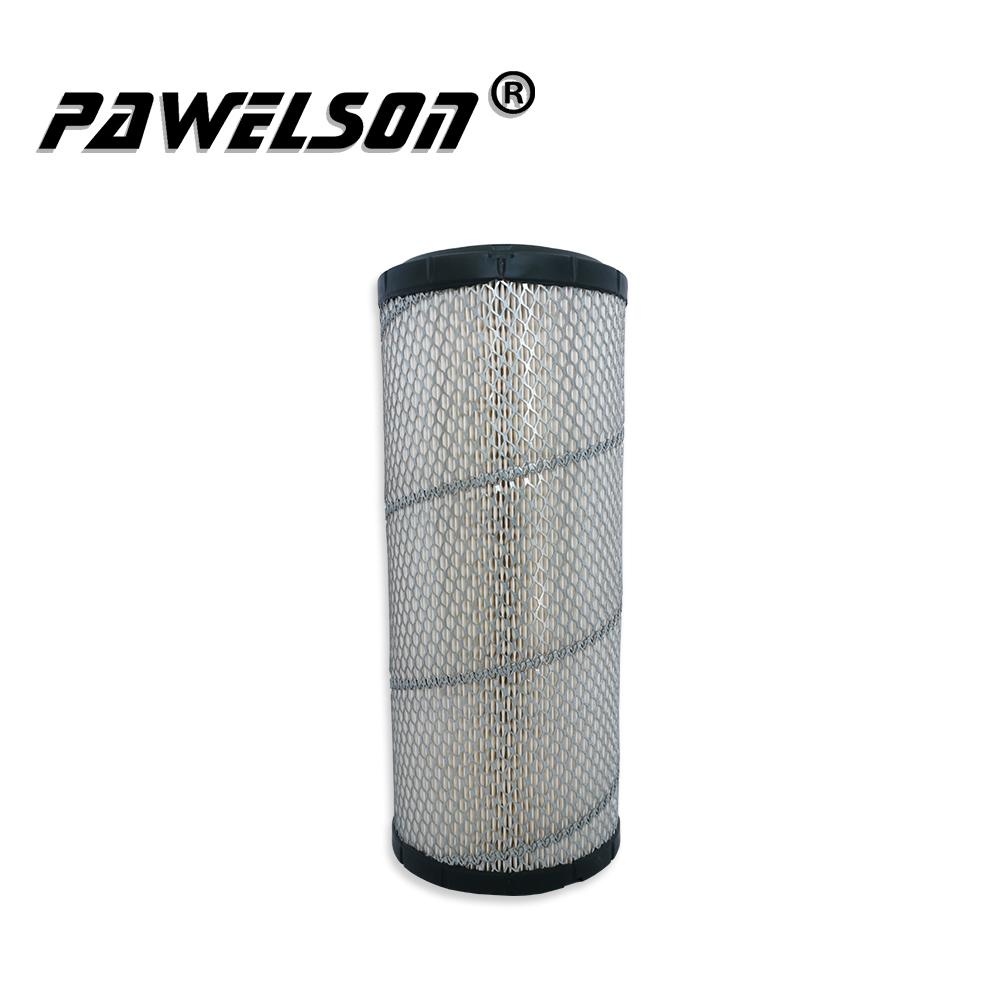

QS NO. | SK-1009A |
OEM NO. | KOMATSU 600-185-2200 KOMATSU 600-185-2210 BOBCAT 666375 CASE 222425A1 CASE 1930587 JOHN DEERE RE508449 VOLVO 11711497 HITACHI 1930587 CATERPILLAR 2310167 |
CROSS REFERENCE | AF25291 AF25588 AF25526 AF25555 P772579 P827653 C14202/1 |
APPLICATION | KOMATSU (PC56-7、PC56-8、PC60-8、PC70-8、PC60-8M0、PC70-8M0、PC88MR-8) HYUNDAI (R60WVS、R60-9VS) KOBELCO (SK75-8) LOVOL (FR80E) SANY(SY55、SY60、SY55C-9、SY60/60C、SY60C-9、SY65/65C、SY65-9、SY65C-9、SY75/75C、SY75C-8/9、SY75-9、SY55-60、SY65、SY75C-10) |
OUTER DIAMETER | 136 (MM) |
INNER DIAMETER | 83 (MM) |
OVERALL HEIGHT | 321/329 (MM) |

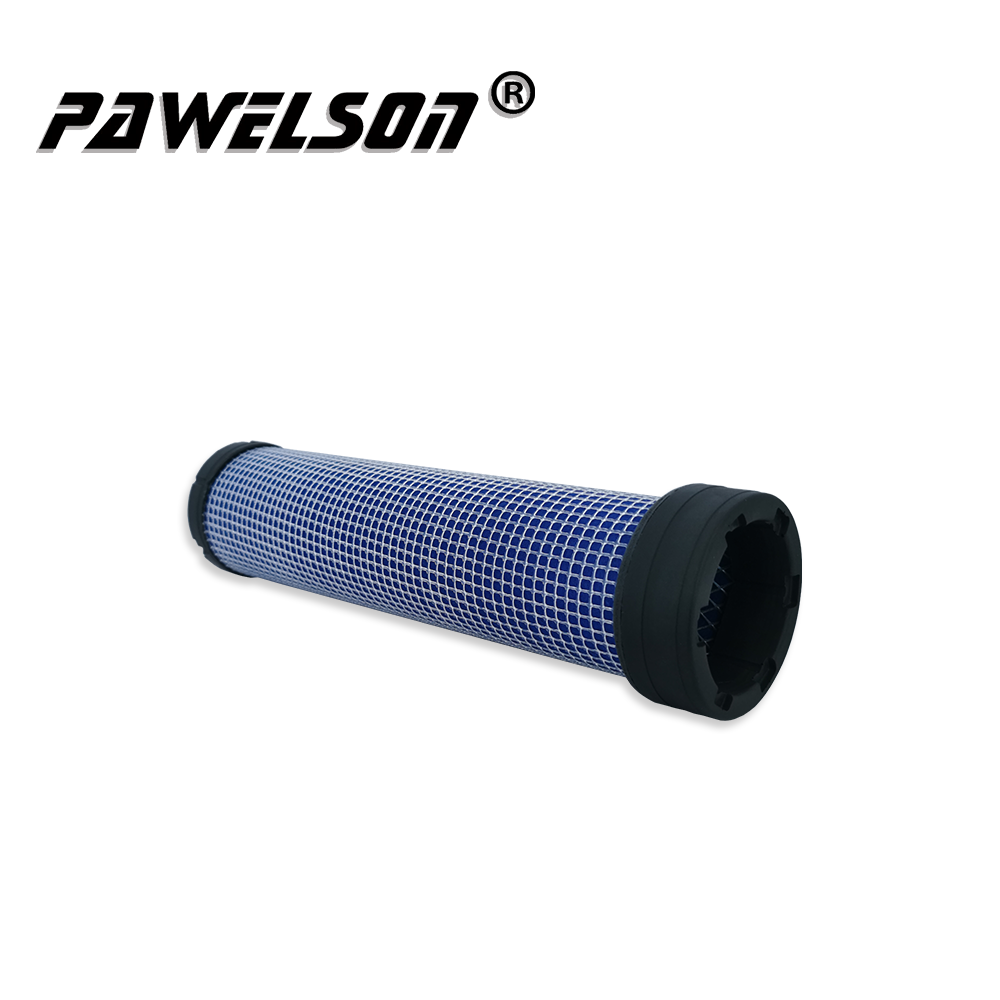

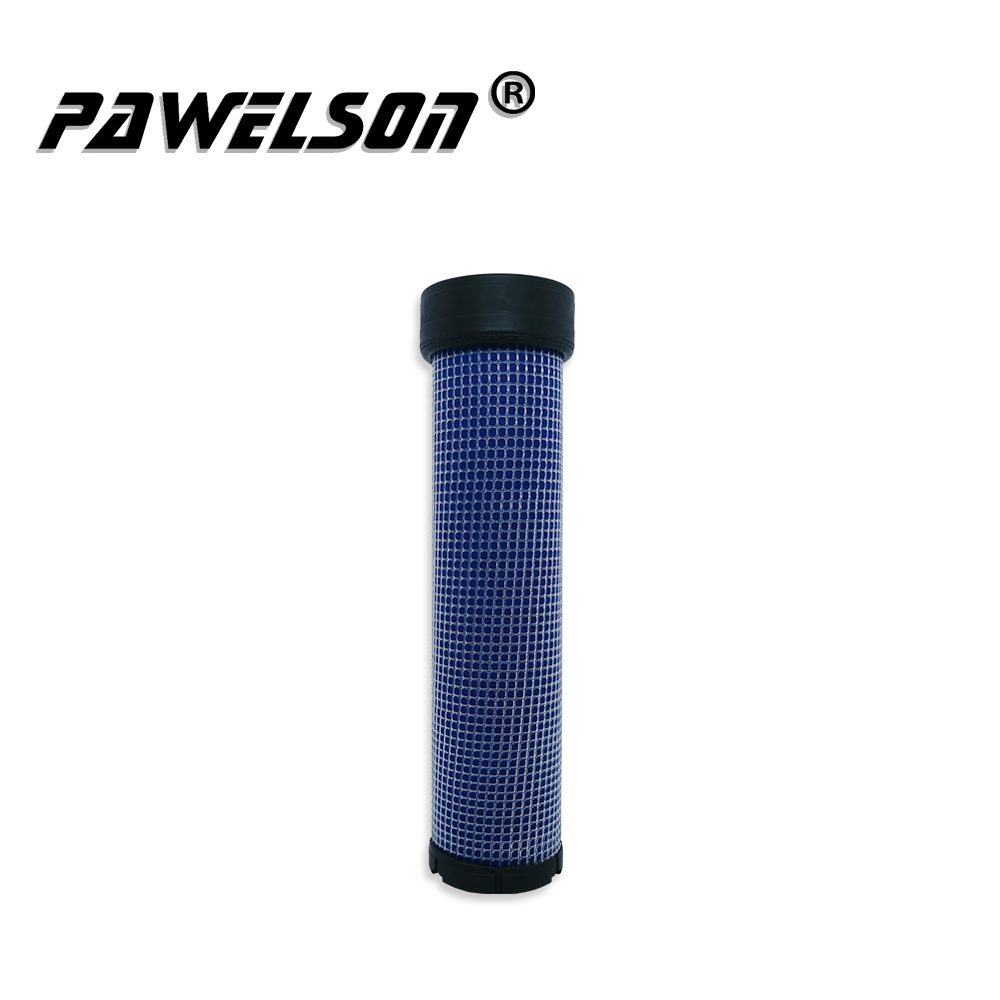

QS NO. | SK-1009B |
OEM NO. | AGCO 0700718076 BOBCAT 666376 VOLVO 11711496 KOMATSU 600-185-2220 CATERPILLAR 91K6102300 HITACHI 4684350 HITACHI 72180342 JOHN DEERE RE504145 CASE 222429A1 YANMAR 119160-12570 |
CROSS REFERENCE | P829332 P775300 P781589 AF25484 CF850/2 CF850 |
APPLICATION | KOMATSU (PC56-7、PC56-8、PC60-8、PC70-8、PC60-8M0、PC70-8M0、PC88MR-8) HYUNDAI (R60WVS、R60-9VS) KOBELCO (SK75-8) LOVOL (FR80E) SANY(SY55、SY60、SY55C-9、SY60/60C、SY60C-9、SY65/65C、SY65-9、SY65C-9、SY75/75C、SY75C-8/9、SY75-9、SY55-60、SY65、SY75C-10) |
OUTER DIAMETER | 83/75 (MM) |
INNER DIAMETER | 62 (MM) |
OVERALL HEIGHT | 313/318 (MM) |
