Hitachi excavator filter element matching models are available from stock: Hitachi oil filter element, Hitachi diesel filter element, Hitachi air filter element, Hitachi hydraulic oil filter element, Hitachi oil-water separator filter element and other types of filter elements, ensuring low price, fast supply and high quality in the industry comparison. excellent.
Maintenance and maintenance of Hitachi excavator filter elements:
1. Daily maintenance: check, clean or replace the air filter element; clean the inside of the cooling system; check and tighten the track shoe bolts; check and adjust the back tension of the track; check the excavator air intake heater; replace the bucket teeth; adjust the excavator shovel Bucket clearance; check the front window cleaning fluid level; check and adjust the excavator air conditioner; clean the floor in the cab; replace the crusher filter element (optional).
2. After the new excavator works for 250 hours, the fuel filter element and the additional fuel filter element should be replaced; check the clearance of the excavator engine valve.
3. When cleaning the inside of the cooling system, after the engine is fully cooled, slowly loosen the water injection port cover to release the internal pressure of the water tank, and then water can be discharged; do not clean the engine while the engine is working, the high-speed rotating fan will cause danger; when cleaning or When replacing the coolant, the machine should be parked on a level surface; the coolant and corrosion inhibitor should be replaced according to the table.
Precautions for installing filter elements in Hitachi excavators
1. Before installation, check whether the filter element is damaged and whether the O-ring is in good condition.
2. When installing the filter element, keep your hands clean, or wear clean gloves.
3. Before installation, apply Vaseline on the outside of the O-ring to facilitate installation.
4. When installing the filter element, do not remove the packaging plastic bag. Pull the plastic bag backwards. After the upper head is leaked out, hold the lower head of the filter element with the left hand and the filter element body with the right hand, and put the filter element into the filter element seat of the tray. , press down firmly, remove the plastic bag after installation.
The air-conditioning filter element of Hitachi excavator should be replaced every 1000 hours or 5 months of operation. If the air filter is clogged, the air intake will be reduced and the cooling/heating capacity will be reduced. Therefore, it should be cleaned or replaced regularly (some brands of air conditioner filters are located at the bottom of the rear of the cab).
Use clean, dry compressed air with a maximum pressure of 5 BAR for compressed air. Do not bring the nozzle closer to 3 – 5 cm. Blow the filter clean from the inside along the pleats.
Hitachi excavator filter adapter models:
ZX130H-5A ZX55USR-5A ZX70-5A ZX60-5A ZX130-5A ZH200-5A ZX170LC-5A ZX210H-5A
ZX210LC-5A ZX200-5A ZX210K-5A ZX250K-5A ZX260LCH-5A ZX250LC-5A ZX250H-5A ZX240-5A ZX490LCH-5A ZX400LCH-5A ZX360K-5A ZX300-5A ZX360H-5A ZX530-5A ZX5A ZX5A ZX60
Hitachi Excavator Filter Features:
1. High-quality filter paper, high filtration efficiency and large ash capacity.
2. The number of folds of the filter element meets the service life requirements.
3. The first and last folds of the filter element are connected by clips or special glue.
4. The material of the central tube is excellent, and it is processed into a spiral shape, which is not easy to deform.
5. High-quality filter glue, so that the filter paper and the end cap are well sealed.
Hitachi filter element involves: Hitachi oil filter element, Hitachi diesel filter element, Hitachi heavy industry air filter element, Hitachi hydraulic oil filter element, Hitachi oil-water separator filter element and other types of filter elements, ensuring low price, fast supply and excellent quality in the industry comparison.

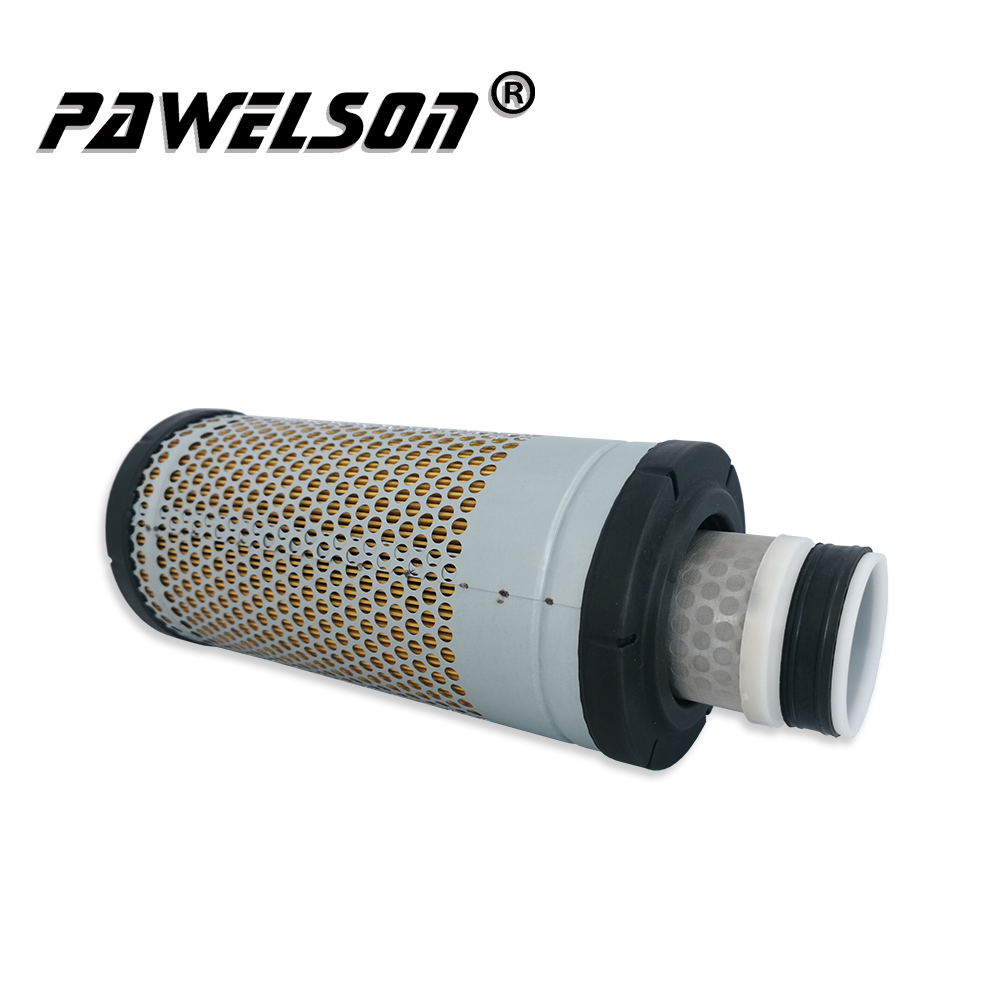

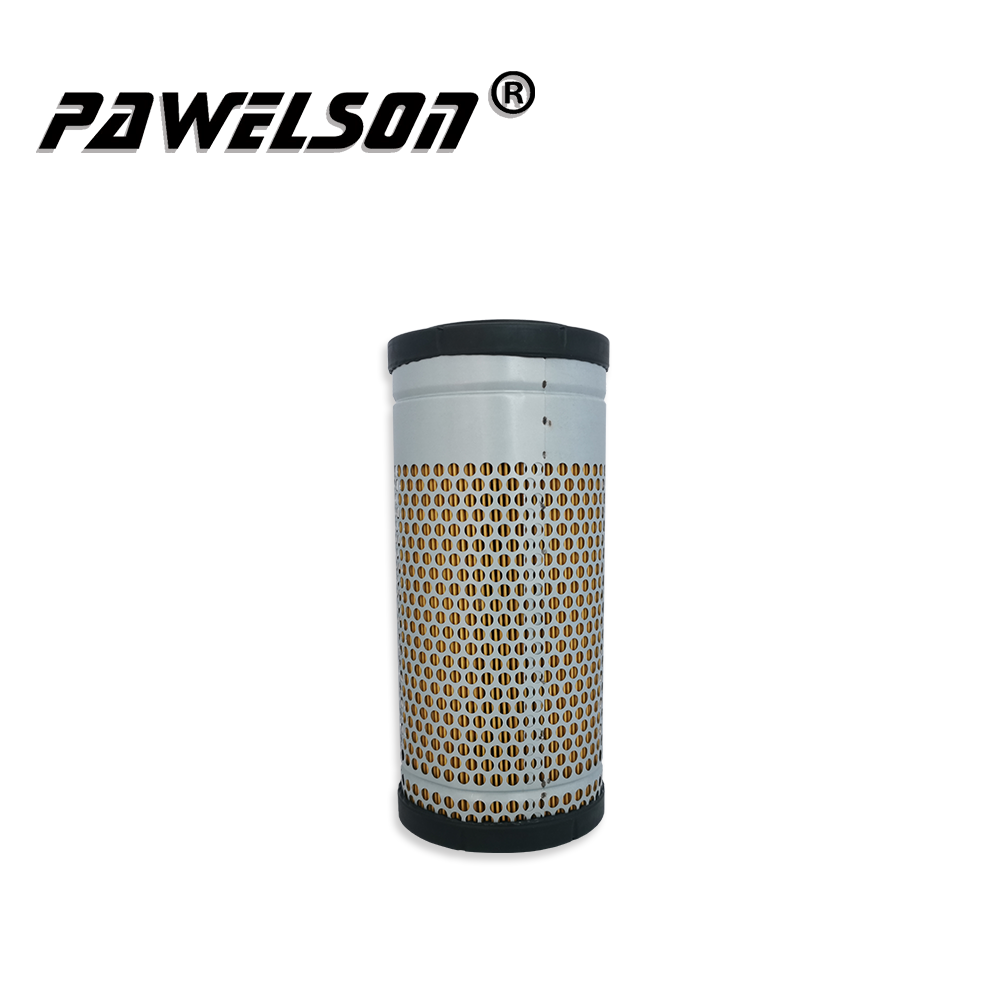

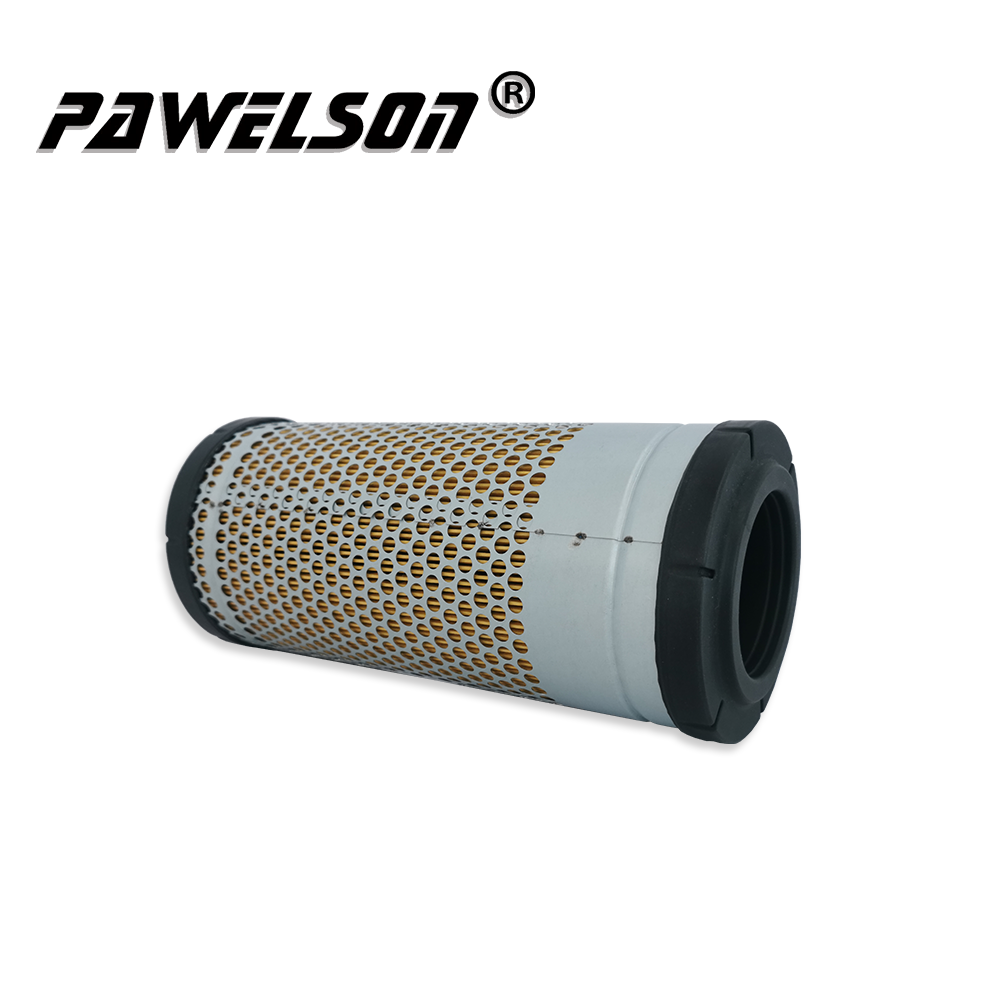

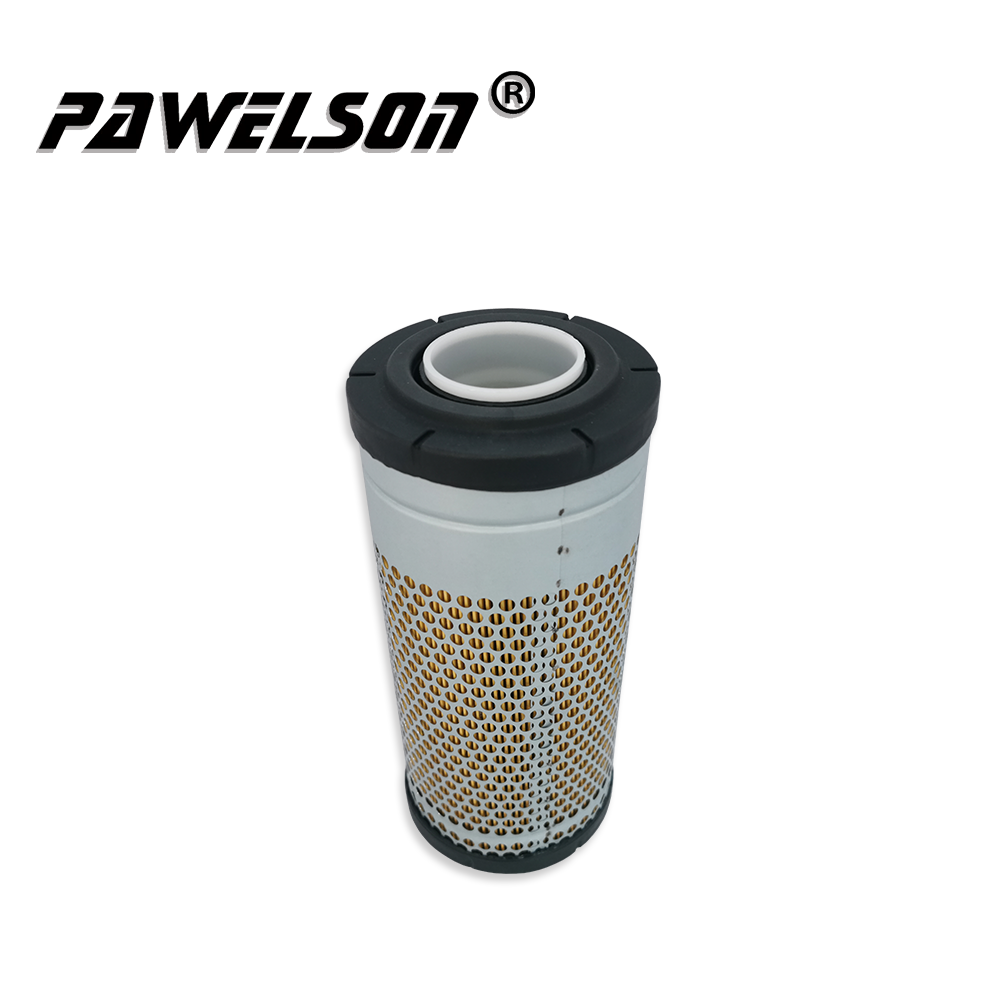

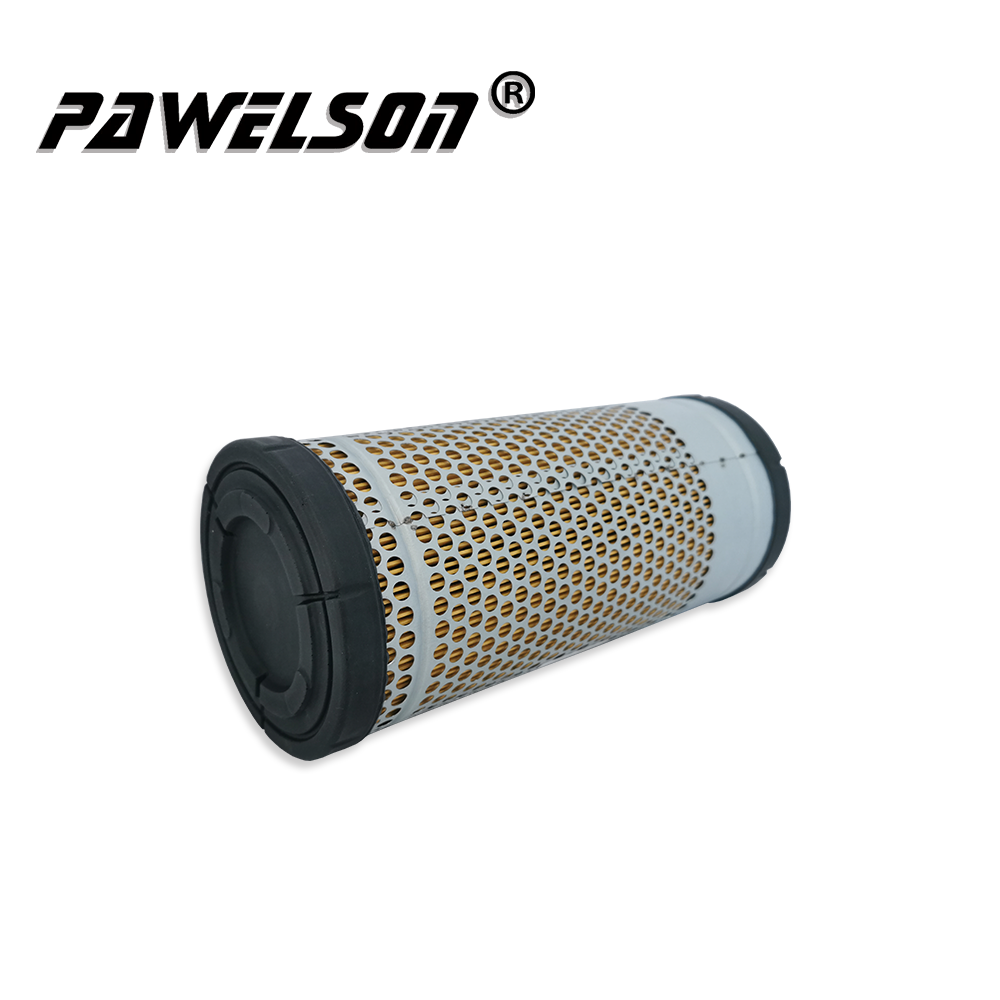

QS NO. | SK-1212A |
OEM NO. | HITACHI YD00001540 YANMAR 172B0311540 YANMAR 1A824005110 |
CROSS REFERENCE | P500279 AS-52220 |
APPLICATION | HITACHI (ZX55USR-5A、ZX55-5G) YANMAR tractor |
OUTER DIAMETER | 112 (MM) |
INNER DIAMETER | 63 (MM) |
OVERALL HEIGHT | 249/256 (MM) |

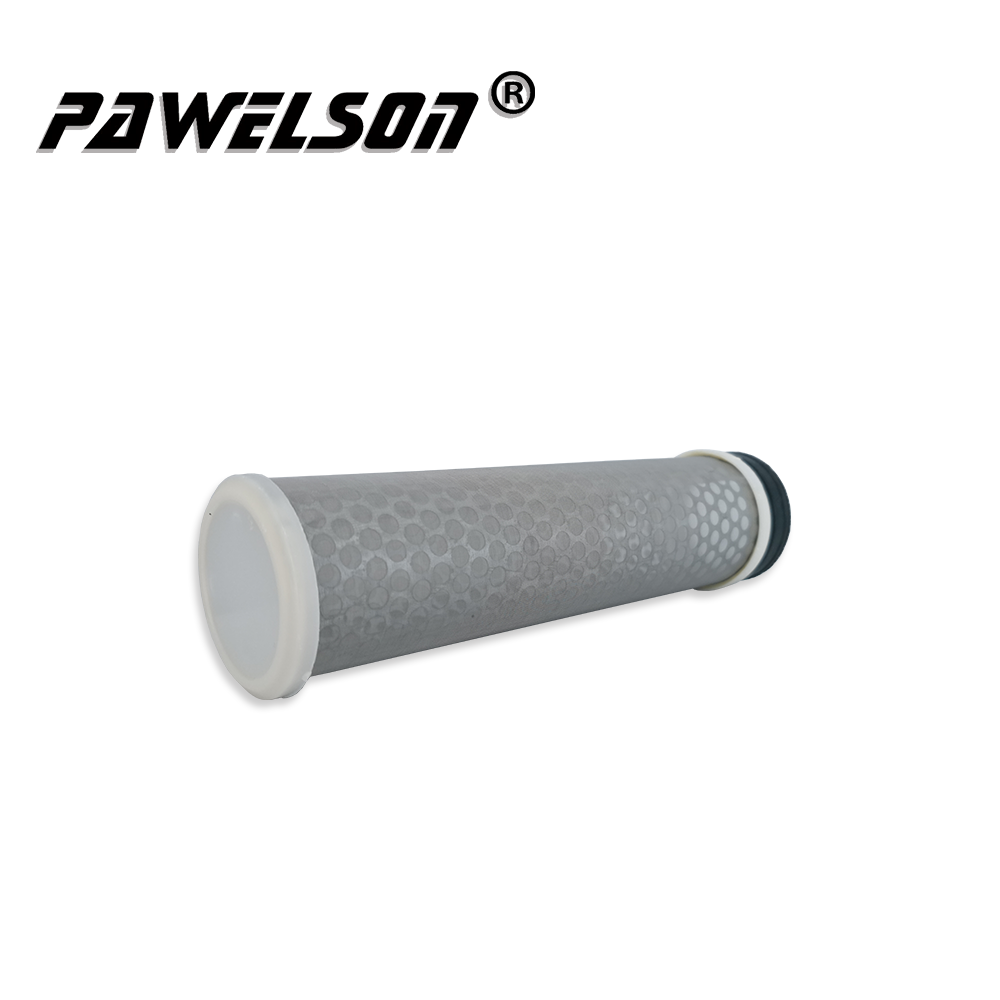

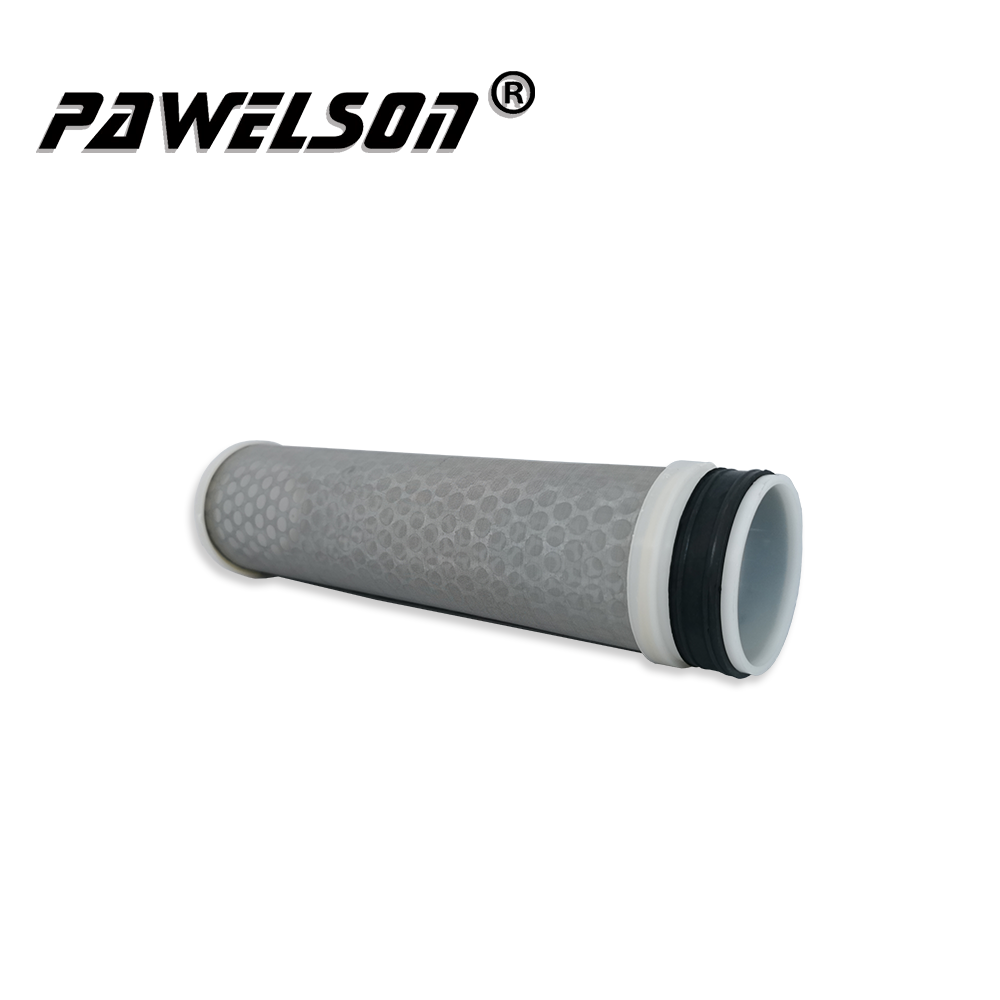

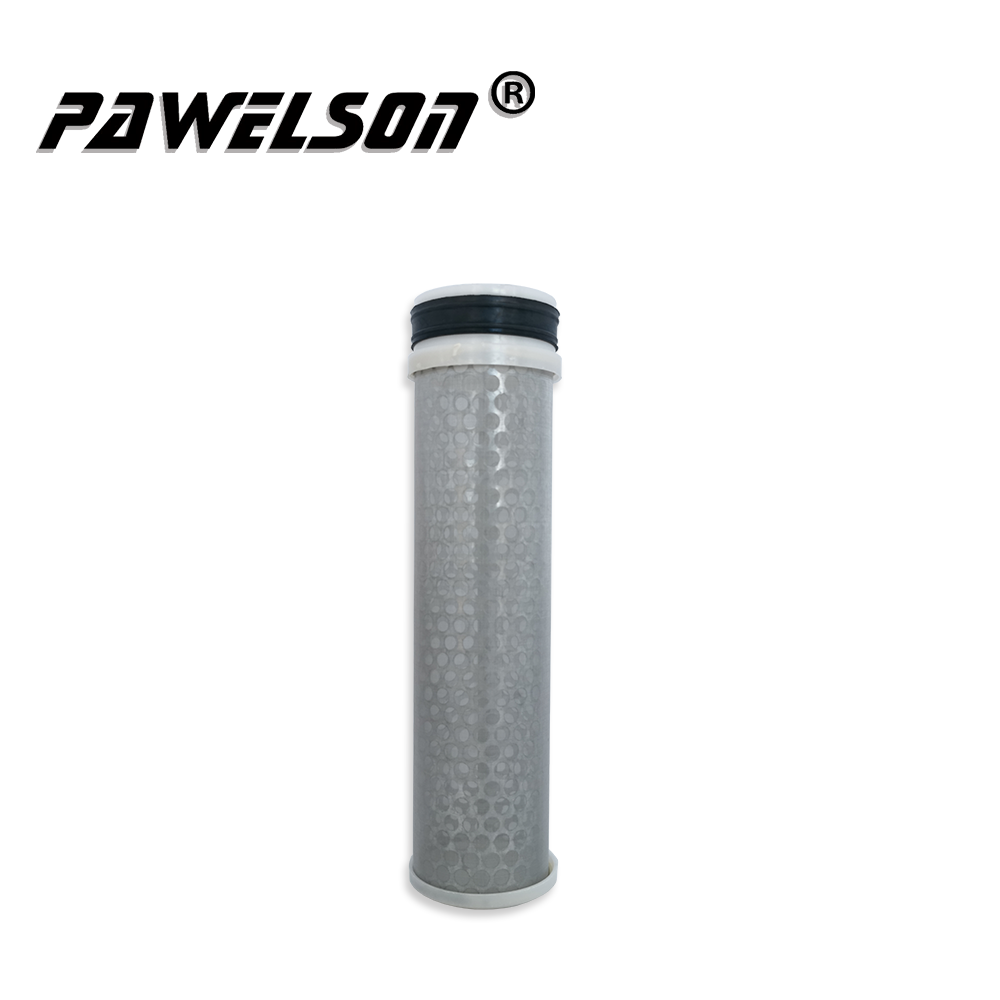

QS NO. | SK-1212B |
OEM NO. | |
CROSS REFERENCE | AS-52250 |
APPLICATION | HITACHI (ZX55USR-5A、ZX55-5G) YANMAR tractor |
OUTER DIAMETER | 62 (MM) |
INNER DIAMETER | 52 (MM) |
OVERALL HEIGHT | 238 (MM) |
