China Wholesale Drilling Rig Air Filter Manufacturers – C261100 CF1650 Air Cleaner & Filter fits IVECO SCANIA heavy truck – Qiangsheng Detail:

Product function

Block dust particles entering the engine air, purify the air that will enter the engine, purify the air in the combustion chamber, achieve the purpose of full combustion, reduce dust accumulation, prevent premature wear of engine parts, prevent black smoke, and ensure normal engine operation.

Air filter maintenance manual

1. The entire air filtration system is under negative pressure. Outside air will automatically enter the system, so except for the air filter inlet, all connections (pipes, flanges) are not allowed to have air leakage.
2. Before driving every day, check whether the air filter has a large amount of dust accumulation, clean it in time, and install it correctly.
3. When checking whether the air filter element is deformed or cannot be disassembled, please replace the air filter element under the guidance of maintenance personnel.

Good and bad filter tips

All filters are used to protect engine parts, clean up, and prolong the service life of the engine. From the surface of various filters and the length of time the filter is used, it is not correct to judge the quality of the filter. It is true to judge The quality of the filter must first consider the following aspects:

1. Quality of filter paper
Good quality filter paper and poor quality filter paper are almost the same on the surface, but the internal difference is very large. Only professional factory inspection equipment can make a significant difference. The quality of the filter paper is related to the efficiency of the filter, and good quality filter paper is filtered out. There are many impurities, iron and dust in the system. Inferior filter paper filters less impurities, iron, and dust, which can’t provide protection, and engine related parts are easy to wear.

product feature

1. The stainless steel filter element has a large flow per unit area;
2. Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
3. Stainless steel filter element, uniform and precise filtration accuracy;
4. Good filtration performance, uniform surface filtration performance for 2-200um filtration particle size
5. The stainless steel filter element is suitable for low temperature and high temperature environment; it can be used again after cleaning without replacement.

Application range

Water and oil filtration, petrochemical industry, oil field pipeline filtration;
Fuel filtration of refueling equipment and construction machinery and equipment;
Equipment filtration in water treatment industry;
Pharmaceutical and food processing fields;
Rotary vane vacuum pump oil filtration;

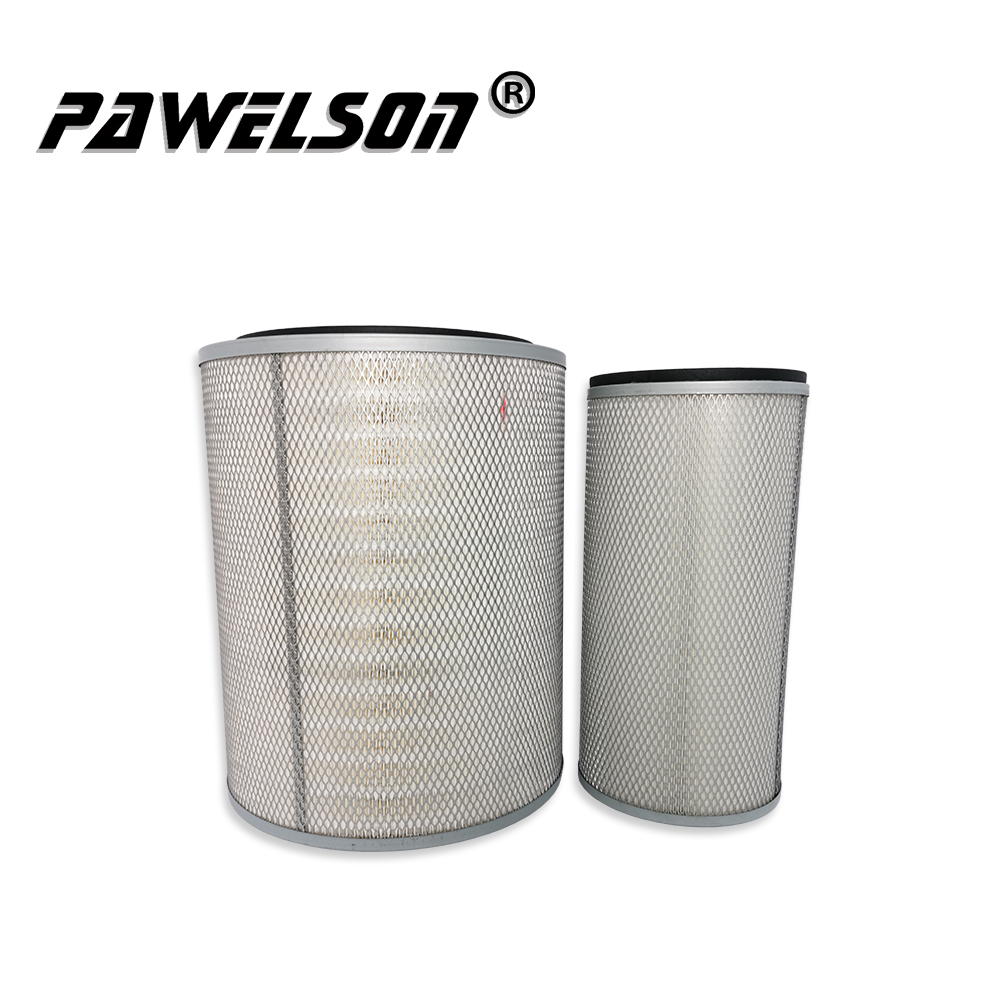

Product description

A:

QSNO. C261100 CF1650 (A)
CROSS REFERENCE MANN C261100, MANN 81.08405-0029, LIEBHERR 592299014, SCANIA 1510905, IVECO 500020002
DONALDSON P789377
FLEETGUARD AF26677
OUTER DIAMETER 254 250 (MM)
INNER DIAMETER 174/162 (MM)
OVERALL HEIGHT 492/528 (MM)

B:

QSNO. C261100 CF1650 (B)
CROSS REFERENCE MANN CF1650, MANN 81.08405-0027, SCANIA 1510942
DONALDSON P955466
FLEETGUARD AF26678
OUTER DIAMETER 154 150 (MM)
INNER DIAMETER 137/131 (MM)
OVERALL HEIGHT 504 (MM)
