China Wholesale Outer Air Filter Manufacturer – SK-1354A Generator sets air filter for VOLVO 15515589 220055099 C4000258 CATERPILLAR 7C8309 CASE 420051C1 IVECO 5000824511 – Qiangsheng

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

We take pleasure in an extremely fantastic standing among the our prospects for our great product top quality, competitive cost and the finest support for Auto Air Filters, China Air Filter, Heavy Duty Truck Air Filter, Now now we have recognized steady and long organization relationships with customers from North America, Western Europe, Africa, South America, extra than 60 countries and regions.
China Wholesale Outer Air Filter Manufacturer – SK-1354A Generator sets air filter for VOLVO 15515589 220055099 C4000258 CATERPILLAR 7C8309 CASE 420051C1 IVECO 5000824511 – Qiangsheng Detail:

How to maintain the diesel engine air filter?

How to maintain the diesel engine air filter?

The engine generally needs 14kg/air for every 1kg/diesel combustion. If the dust entering the air is not filtered out, the wear of the cylinder, piston and piston ring will be greatly increased. According to the test, if the air filter is not used, the wear rate of the above-mentioned parts will be increased by 3-9 times. When the pipe or filter element of the diesel engine air filter is blocked by dust, it will lead to insufficient intake air, which will cause the diesel engine to make a dull noise when accelerating, run weakly, increase the water temperature, and the exhaust gas becomes gray and black. Improper installation, the air containing a lot of dust will not pass through the filter surface of the filter element, but will directly enter the engine cylinder from the bypass. In order to avoid the above phenomena, daily maintenance must be strengthened.

Tools/Materials:

Soft brush, air filter, equipment diesel engine

Method/step:

1. Always remove the dust accumulated in the dust bag of the coarse filter, the blades and the cyclone pipe;

2. When maintaining the paper filter element of the air filter, the dust can be removed by gently vibrating, and the dust can be removed with a soft brush along the direction of the folds. Finally, the compressed air with a pressure of 0.2~0.29Mpa is used to blow from the inside to the outside;

3. The paper filter element should not be cleaned in oil, and it is strictly forbidden to contact with water and fire;

The filter element should be replaced immediately in the following situations: (1) The diesel engine reaches the specified operating hours; (2) The inner and outer surfaces of the paper filter element are gray-black, which have been aged and deteriorated or have been infiltrated by water and oil, and the filtration performance has deteriorated; (3) The paper filter element is cracked, perforated, or the end cap is degummed.

Product description

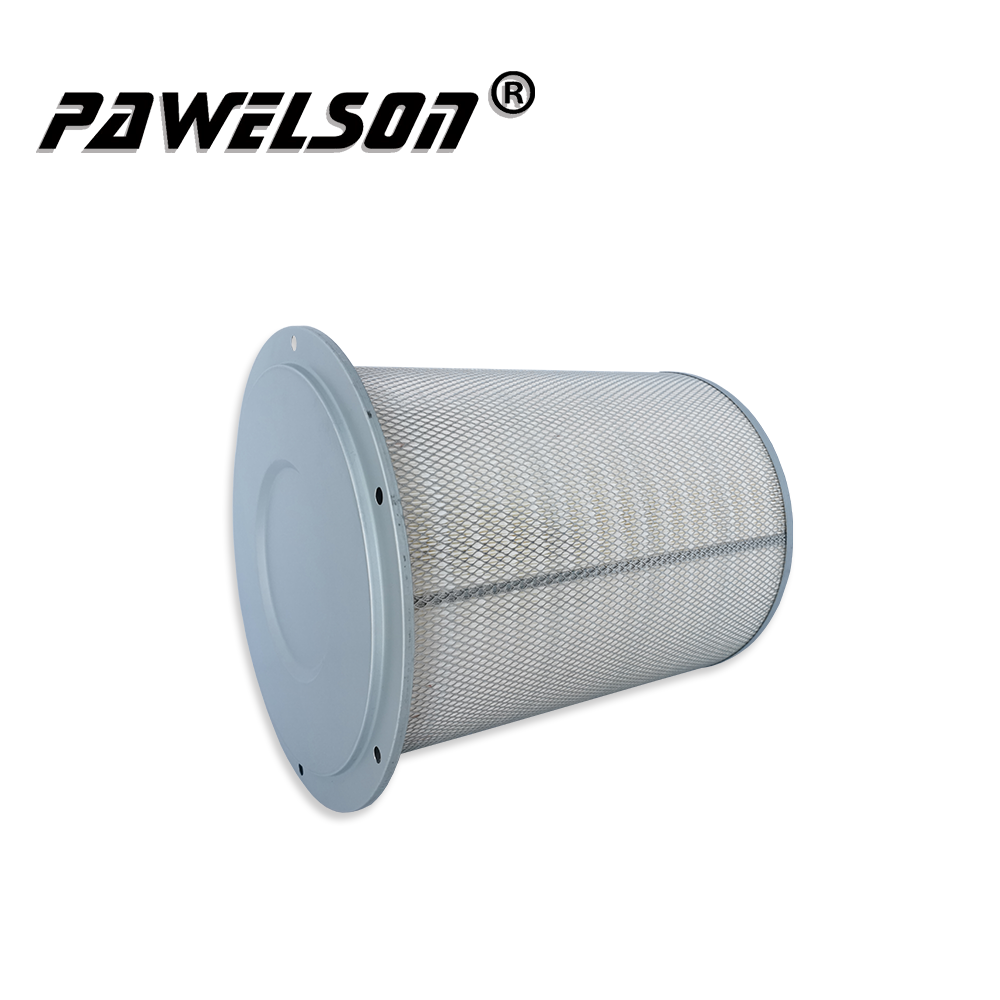

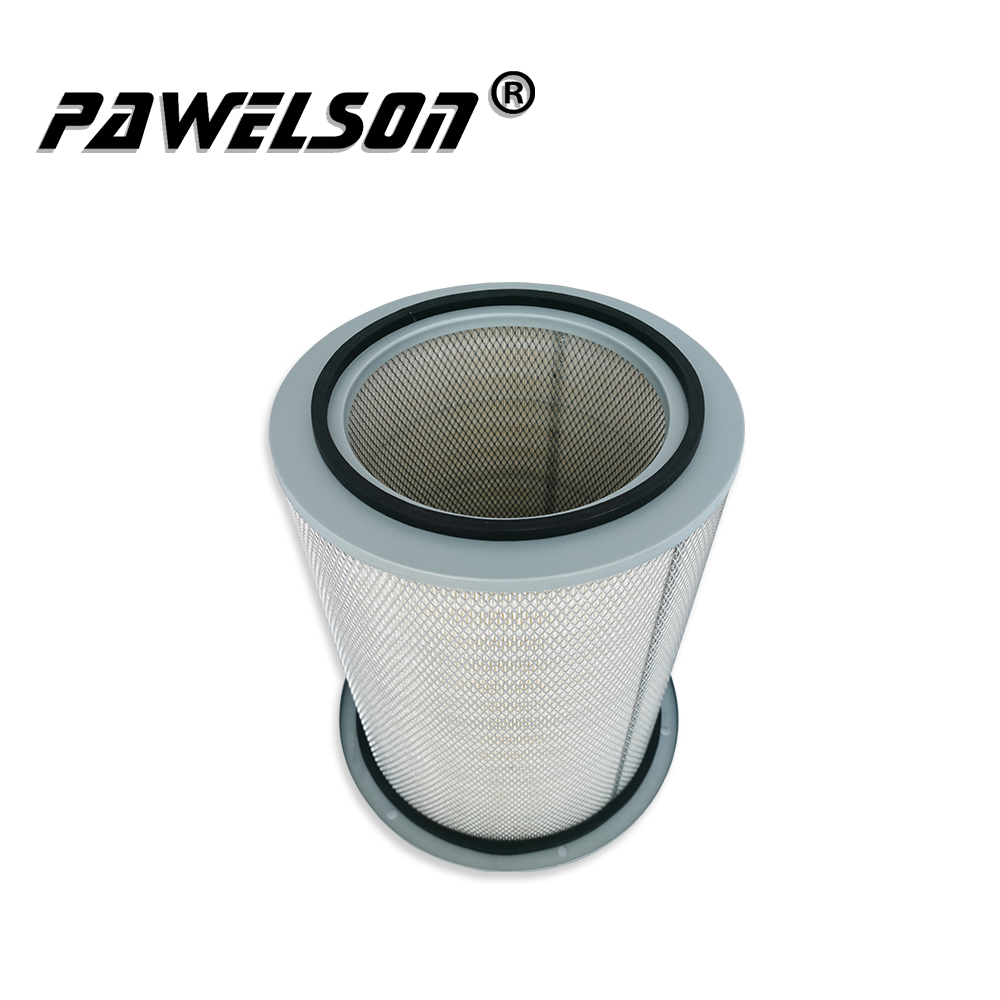

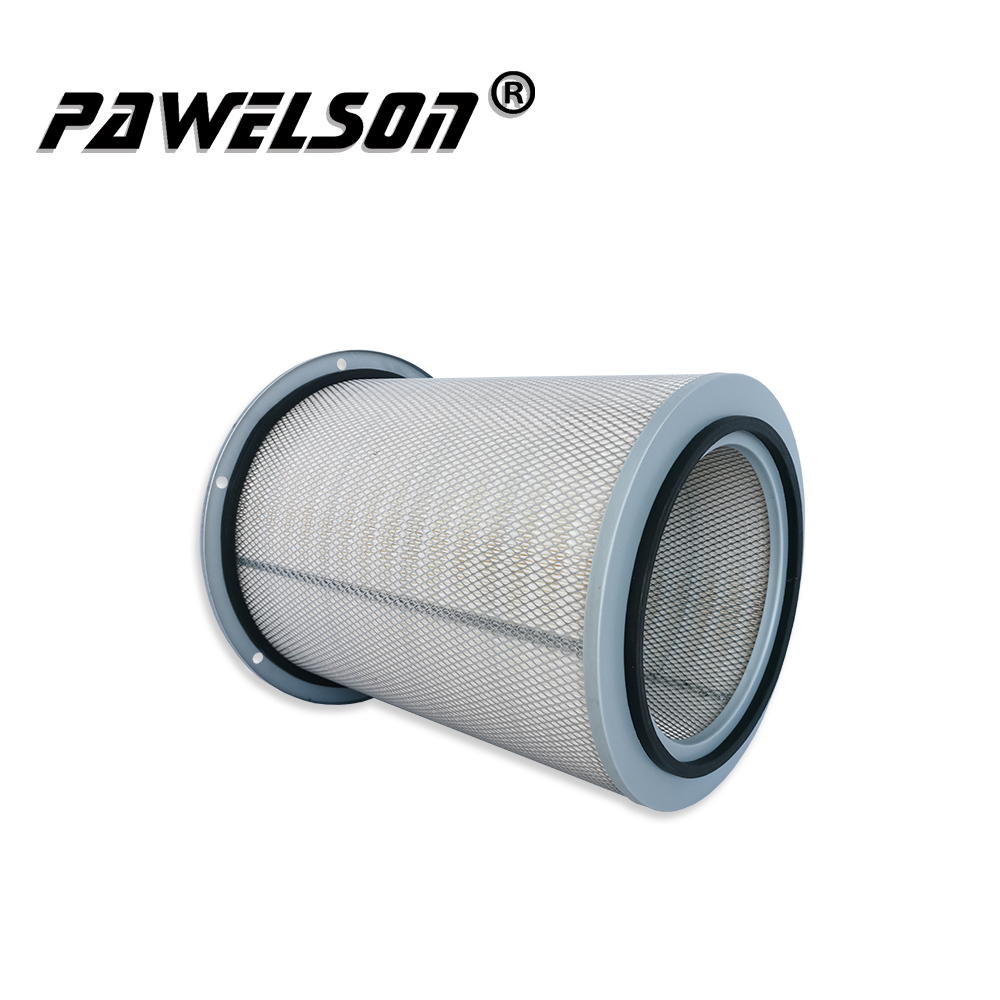

SK-1354A Generator sets air filter for VOLVO 15515589 220055099 C4000258 CATERPILLAR 7C8309 CASE 420051C1 IVECO 5000824511

A:

QS NO. SK-1354A
OEM NO. VOLVO 15515589 IVECO 5000824511 VOLVO 220055099 VOLVO C4000258 CATERPILLAR 7C8309 CASE 420051C1
CROSS  REFERENCE P182099 P185099 P181099 AF872M AH19327 1100686S01 AF872 AF1836M AF4871M PA2333 LL2333
APPLICATION Generator sets
OUTER DIAMETER 350/419/412 (MM)
INNER DIAMETER 239 (MM)
OVERALL HEIGHT 448/457/467 (MM)
