The engine needs to suck in a lot of air during the working process. If the air is not filtered, the dust suspended in the air will be sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious “pulling the cylinder”, which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or intake pipe to filter out dust and sand in the air, ensuring that sufficient and clean air enters the cylinder
According to the filtration principle, air filters can be divided into filter type, centrifugal type, oil bath type and composite type.
During maintenance, the paper filter element must not be cleaned in oil, otherwise the paper filter element will fail, and it is easy to cause a speeding accident. During maintenance, only the vibration method, the soft brush removal method (to brush along the wrinkle) or the compressed air blowback method can only be used to remove the dust and dirt attached to the surface of the paper filter element. For the coarse filter part, the dust in the dust collecting part, the blades and the cyclone pipe should be removed in time. Even if it can be carefully maintained every time, the paper filter element cannot fully restore its original performance, and its air intake resistance will increase. Therefore, generally, when the paper filter element needs to be maintained for the fourth time, it should be replaced with a new filter element. If the paper filter element is cracked, perforated, or the filter paper and end cap are degummed, they should be replaced immediately.

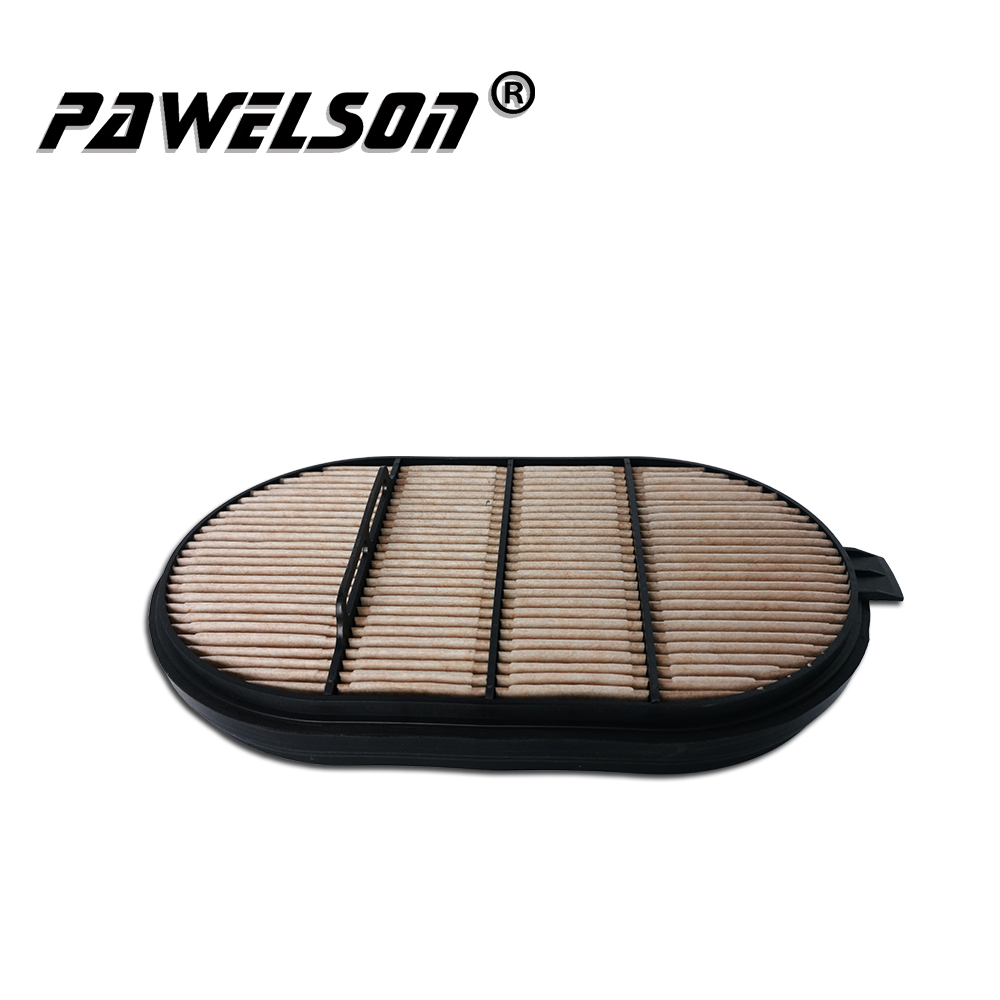

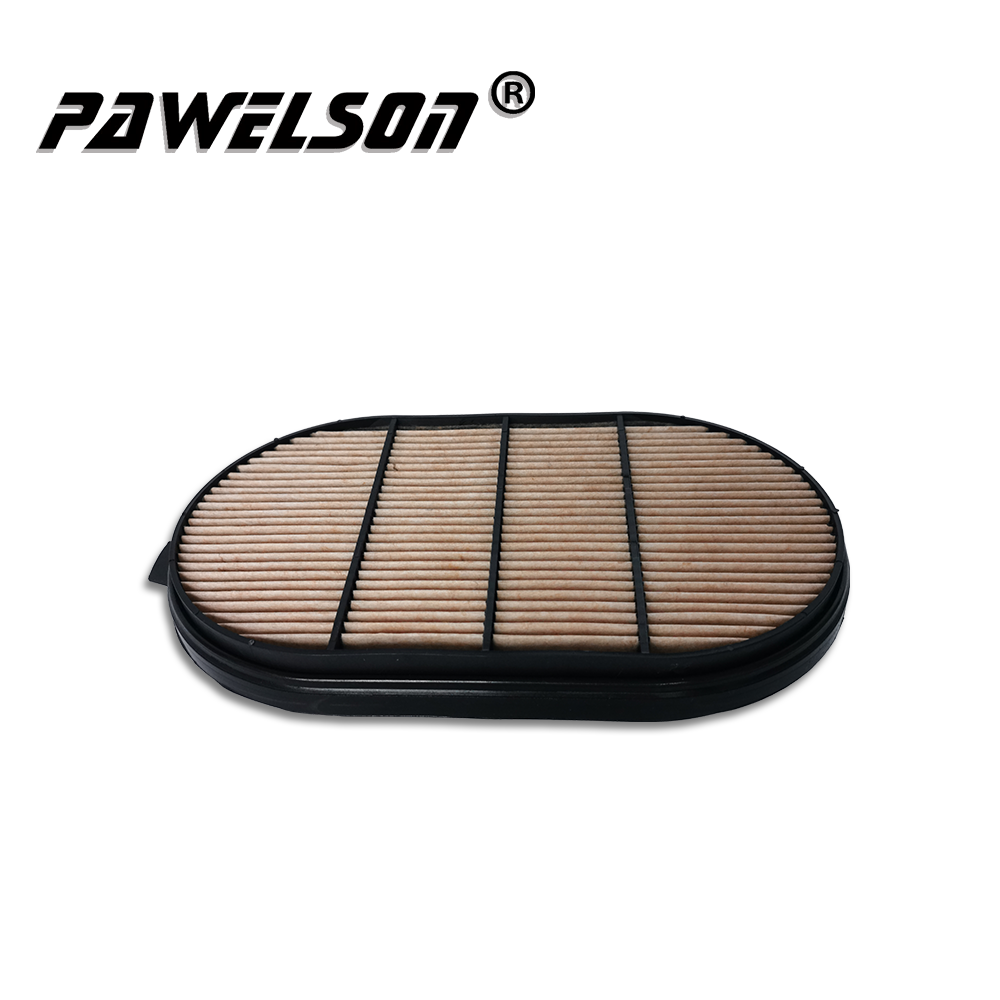

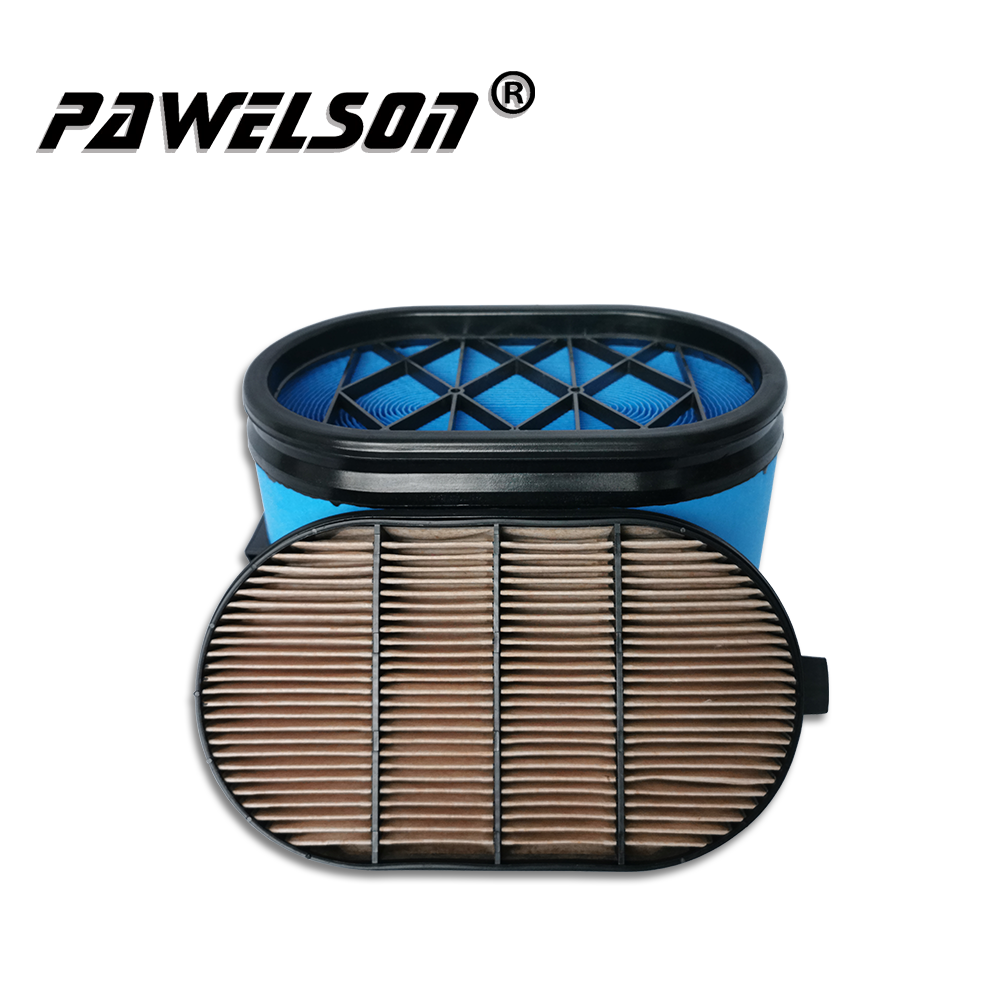

QSNO. | SK-1269A |
OEM NO. | FORD : 7C4Z9601AA FORD OTOSAN : CC469601CA FREIGHTLINER : P617499 IVECO : 5801647688 IVECO : 5801699113 MAN : 05P608666 MERCEDES-BENZ : A0040944904 RENAULT TRUCKS : 7422314538 RENAULT TRUCKS : AQ88324001 VAN HOOL : 11008426 |
CROSS REFERENCE | BALDWIN : CA5514 DONALDSON : P608666 FLEETGUARD : AF27876 MANN-FILTER : CP34360 WIX FILTERS : 49666 WIX FILTERS : 549666 |
APPLICATION | MASSEY FERGUSON MF 6400 7400 SERIES VALTRA T SERIES FENDT 700 800 SERIES TRACTOR |
LENGTH | 331/298 (MM) |
WIDTH | 205 (MM) |
OVERALL HEIGHT | 187 (MM) |

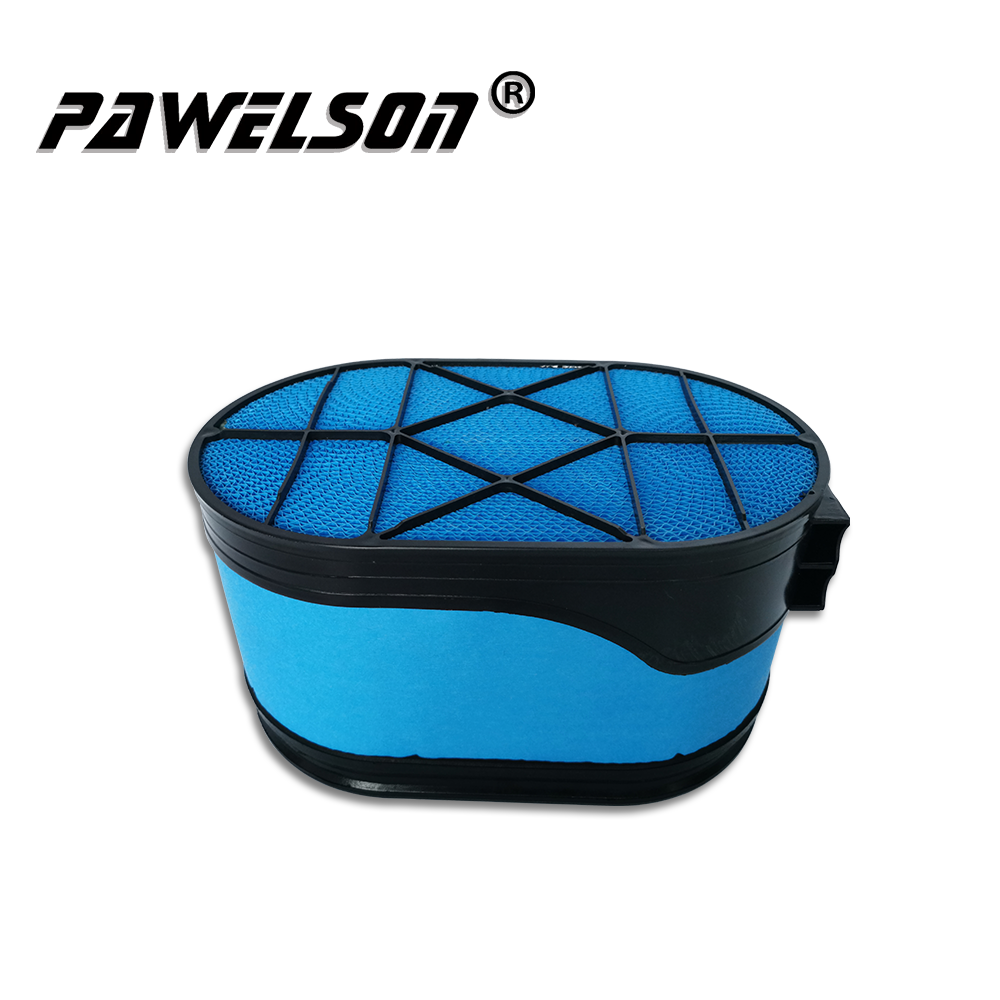

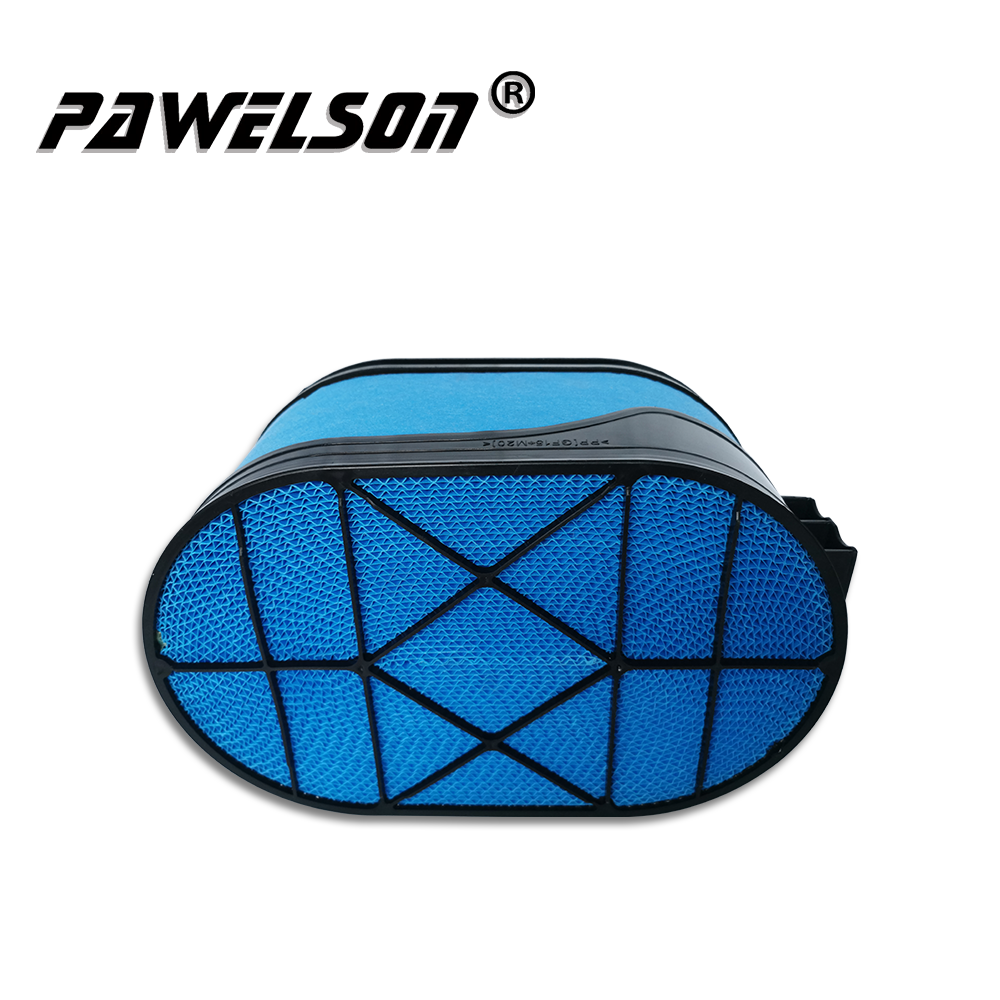

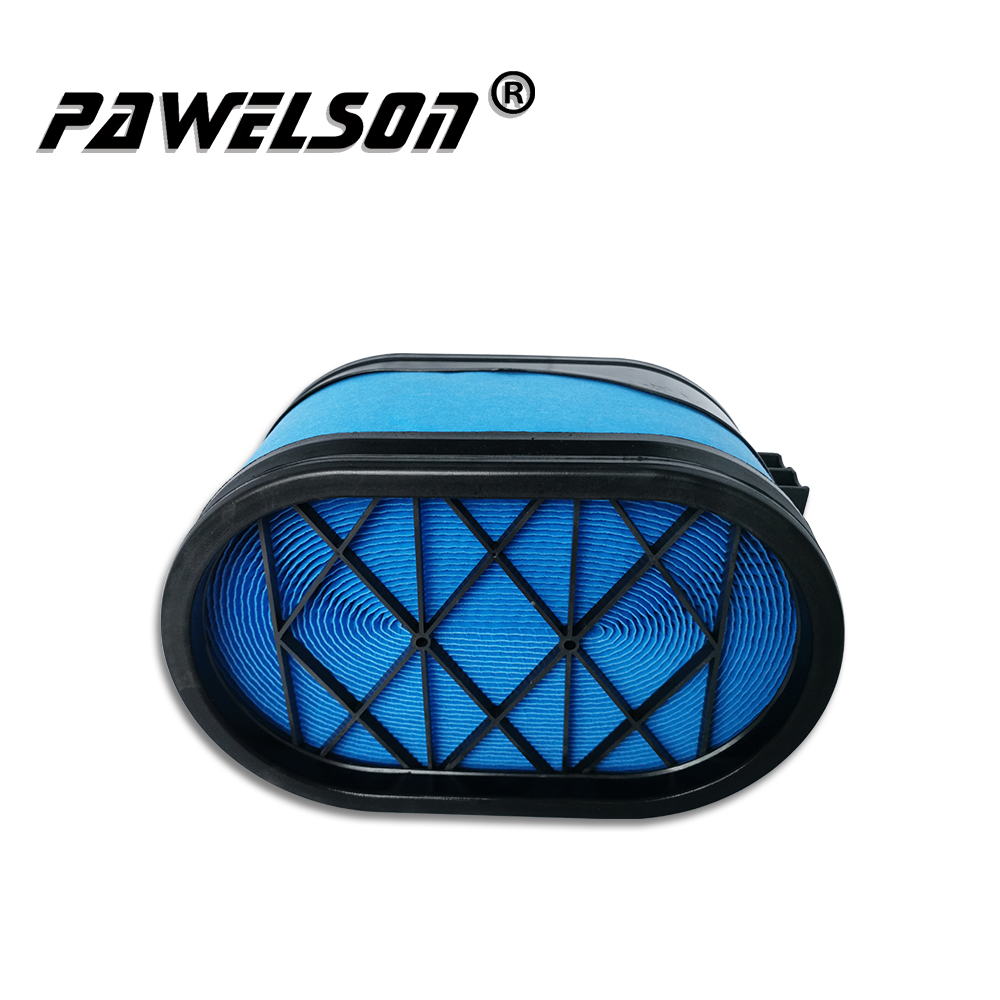

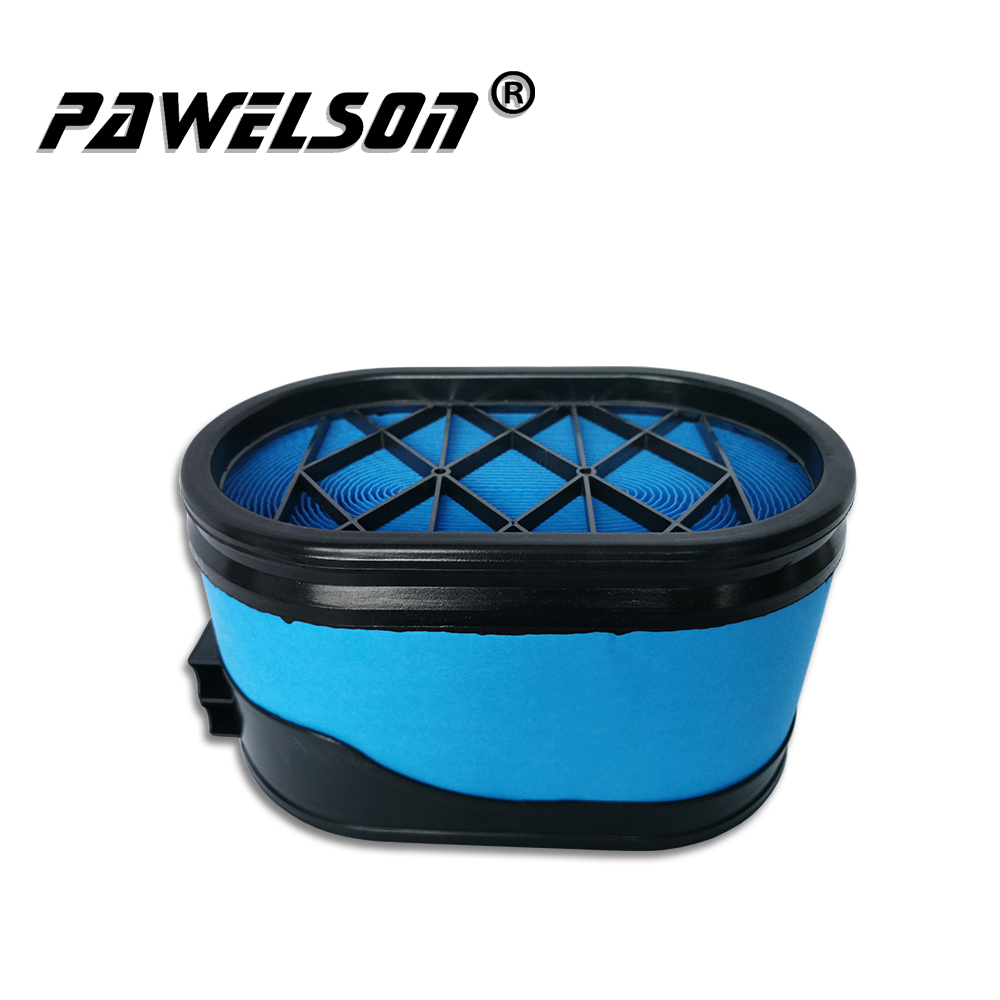

QSNO. | SK-1269B |
OEM NO. | JOHN DEERE F071151 IVECO 5801699114 MAN 4504057100 LIEBHERR 10294939 MASSEY FERGUSON 4286474M1 |
CROSS REFERENCE | AF4199 P601560 CF3240 |
APPLICATION | MASSEY FERGUSON MF 6400 7400 SERIES VALTRA T SERIES FENDT 700 800 SERIES TRACTOR |
LENGTH | 332.5/317/310 (MM) |
WIDTH | 188/181 (MM) |
OVERALL HEIGHT | 40/43/59 (MM) |
