Harvester Hydraulic Oil Filter Manufacturer – SY-2217 SUNWARD excavator hydraulic oil filter element 730403000028 for SUNWARD 50/60/65/70/80 – Qiangsheng Detail:

Processing Standard and Quality Control of Hydraulic Oil Filter

The liquid filter element makes the liquid (including oil, water, etc.) clean the contaminated liquid to the state required for production and life, that is, to make the liquid reach a certain degree of cleanliness. When the fluid enters the filter element with a certain size filter screen, its impurities are blocked, and the clean fluid flows out through the filter element. So what are the industry standards for the processing of hydraulic oil filter elements, and how to control and ensure the quality of the filter element?

Processing Standard and Quality Control of Hydraulic Oil Filter



Processing method of hydraulic oil filter

1. The processing steps of the filter element are: blanking, folding, creasing, edge clamping, assembly, bonding, and packaging. When the precision is high, a bubbling test must be done, and special structures or materials need to be cured.



2. The processing steps of the separation filter element are: cutting, wrapping, clamping, assembling, bonding and packaging.



3. The processing steps of coalescing filter element are: blanking, winding, folding, curing, edge clamping, assembly, bonding and packaging. (Industrial coalescing filters do not need to be folded)



4. The processing steps of the adsorption filter element are: cutting, winding, assembling, curing, bonding and packaging.



Filter Quality Control

In terms of quality of hydraulic filter elements, the first inspection and mutual inspection are implemented (the next process is inspected in the previous process), and the unqualified will not be accepted.



1. When unloading, pay attention to whether the filter material support screen is selected correctly, whether the filter material model is consistent with the drawing requirements, the filter material should be free of contamination, and the spray layer should be uniform (no damage to the ring).



2. For the folding type, pay attention to the in and out oil surface of the filter material, and strictly control the folding height and folding number. The number of folds should be 1-3 folds more than the drawing, the folding height is uniform, the folding line transition is smooth, the folding peaks are parallel, no dead folding and damage to the filter layer are allowed, and the filter layers of each layer are aligned on both sides.



3. Plant fiber paper contains 15%-20% resin, which needs to be cured in place in order to improve its strength and stiffness.



4. The clamping tools are flat nose pliers and wire engraving pliers. When clamping the edge, the force should be uniform, the filter material should not be damaged, the overlapping of the clamping edge should not be dislocated, the fold spacing should be uniform, the clamping edge should be firm, the edge of the trimmed filter material should be free of burrs, and the number of trimming folds should be the number required in the drawing.



5. The glue seam is required to be uniform. Degumming is strictly prohibited, the glue is not allowed to flow beyond the lap joint, and the glue is not allowed to have air bubbles in the lap joint. The glue must be completely cured. After the glue is cured, clean up the excess metal mesh head .



6. When assembling, select the skeleton, the glue peak should be aligned with the skeleton welding and overlapping, remove the excess metal wire, and keep its appearance beautiful.



7. End caps need to be selected for bonding. End caps with uneven coating are not allowed to be used. Pay attention to whether the glue sticks the end cap skeleton filter material firmly. The outflow glue should be wiped clean, and there should be no degumming to keep the end face and worktable clean. . After the glue is fully cured, the next process can be carried out. After bonding, the verticality and parallelism of the filter element must meet the requirements of the drawing.



8. Check the quality of the filter element before packaging, and then select the seals, packaging bags, and packaging boxes according to the requirements of the drawings. During the packaging process, the packaging bag is not allowed to be damaged, and the packaging box and the filter element are marked with clear and beautiful handwriting before they can be packaged and put into storage (handle with care during operation to avoid bumping).



Hydraulic filter industry standard

JB-T 7218-2004 Cartridge type pressurized liquid filter element



JB-T 5087-1991 Internal combustion engine oil filter paper filter element



GBT 20080-2006 Hydraulic filter element



HG/T 2352-1992 Wire-wound filter element for magnetic pulp filtration HY/T 055-2001 Pleated cylindrical microporous membrane filter element



JB/T 10910-2008 Oil and gas separation filter element for general oil-injection rotary air compressor JB/T 7218-1994 Cartridge type pressurized filter element



JB/T 9756-2004 Internal combustion engine air filter paper filter element

Product description

QS NO. SY-2217
CROSS REFERENCE 730403000028
DONALDSON
FLEETGUARD
ENGINE SUNWARD 50/60/65/70/80
VEHICLE SUNWARD excavator hydraulic filter
LARGEST OD 120(MM)
OVERALL HEIGHT 197 (MM)
INTRNAL DIAMETER 58M12*1.75 (MM)



Our Workshop

workshop
workshop

Packing & Delivery

Packing
Packing

Our Exhibition

workshop

Our service

workshop

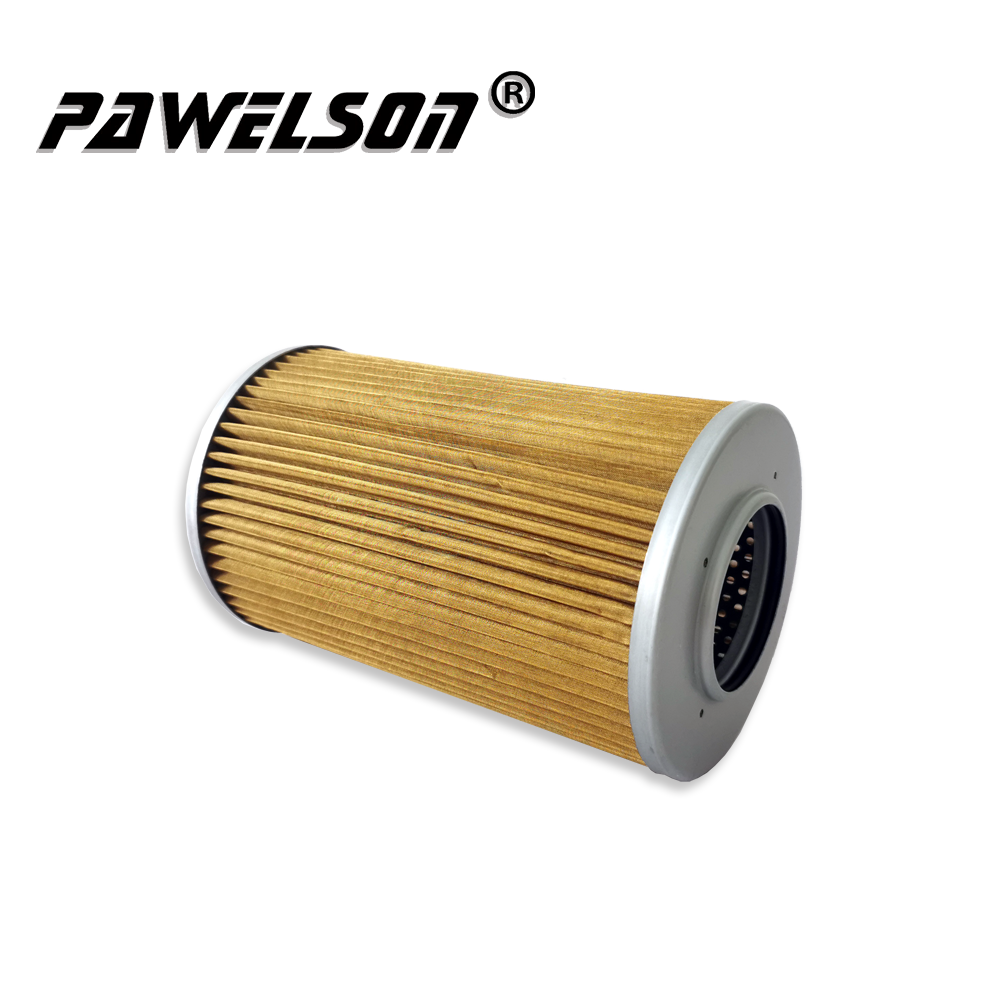

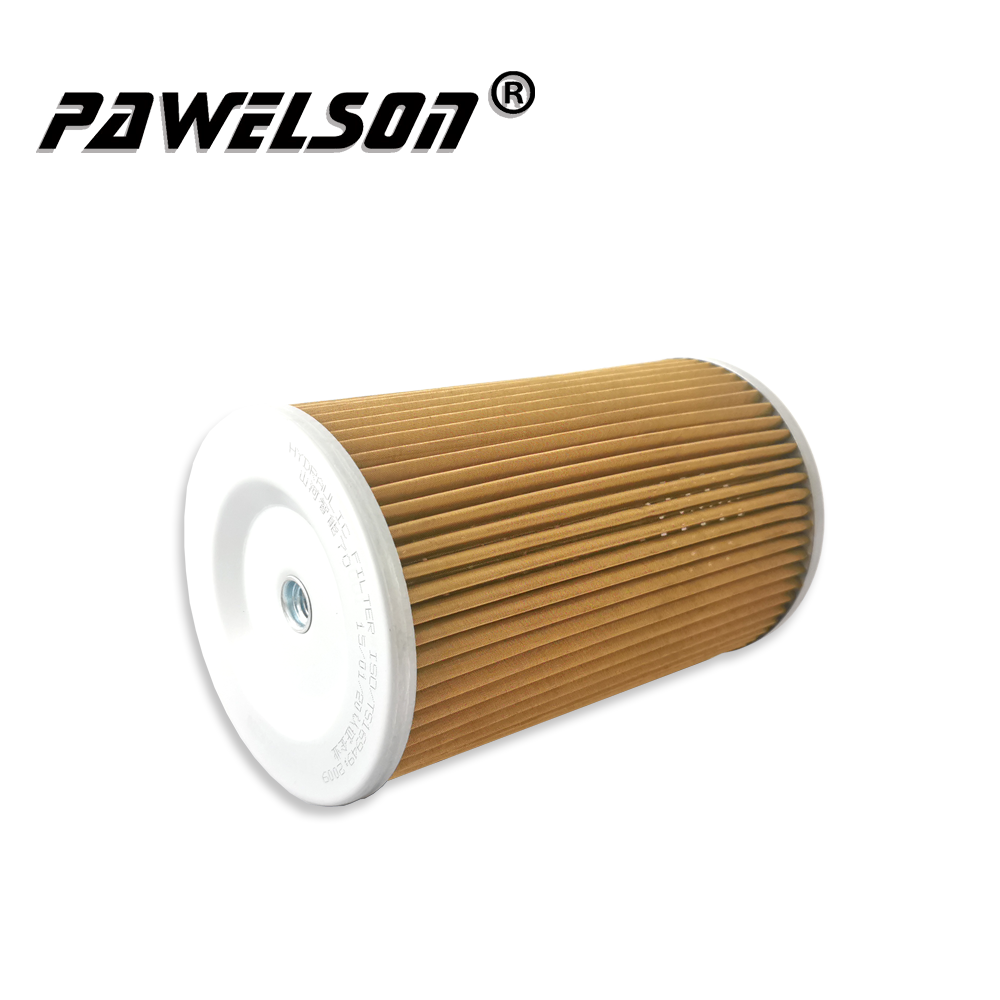

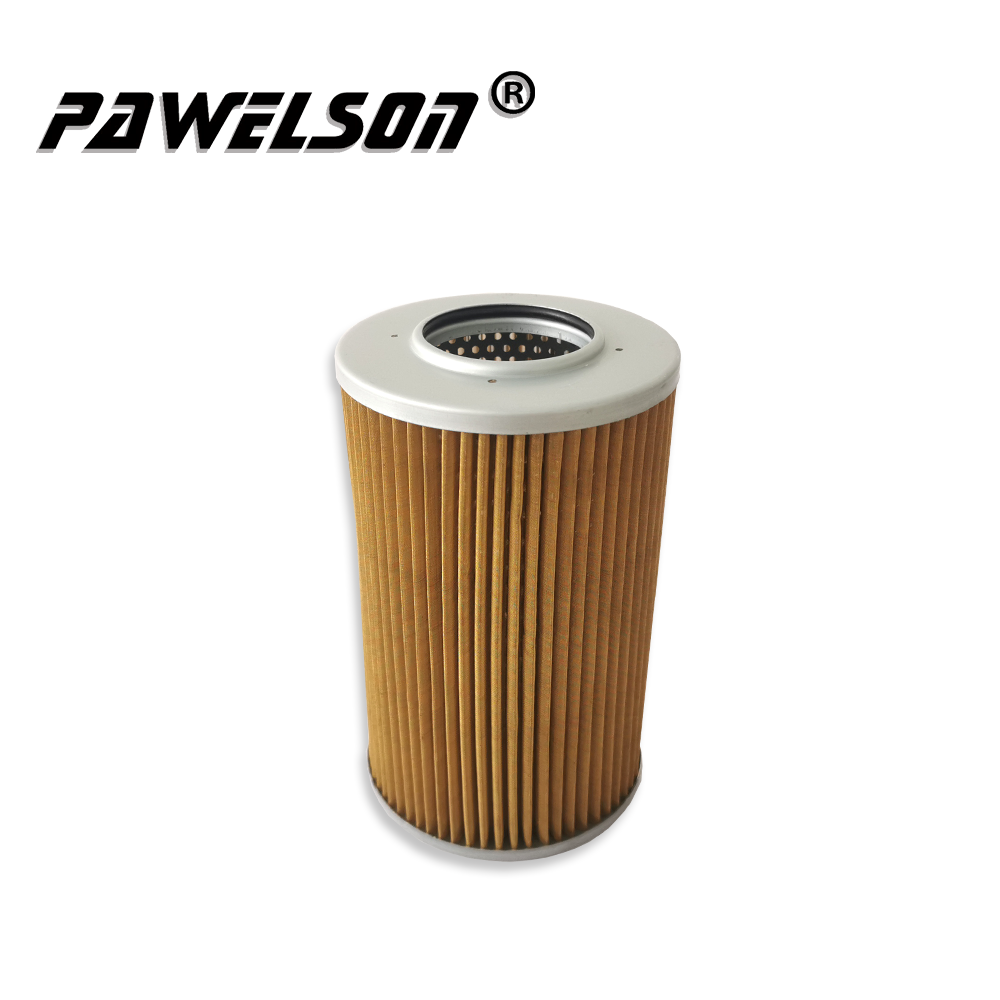

Product detail pictures:

Harvester Hydraulic Oil Filter Manufacturer –  SY-2217 SUNWARD excavator hydraulic oil filter element 730403000028 for SUNWARD 50/60/65/70/80 – Qiangsheng detail pictures

Harvester Hydraulic Oil Filter Manufacturer –  SY-2217 SUNWARD excavator hydraulic oil filter element 730403000028 for SUNWARD 50/60/65/70/80 – Qiangsheng detail pictures

Harvester Hydraulic Oil Filter Manufacturer –  SY-2217 SUNWARD excavator hydraulic oil filter element 730403000028 for SUNWARD 50/60/65/70/80 – Qiangsheng detail pictures

Harvester Hydraulic Oil Filter Manufacturer –  SY-2217 SUNWARD excavator hydraulic oil filter element 730403000028 for SUNWARD 50/60/65/70/80 – Qiangsheng detail pictures
