OEM High Quality Air Filter Replace Manufacturers – SK-1053AB CATERPILLAR excavator air filter for CAT 1063969 1327168 1063973 AF25263 P533884 CF23398 – Qiangsheng
OEM High Quality Air Filter Replace Manufacturers – SK-1053AB CATERPILLAR excavator air filter for CAT 1063969 1327168 1063973 AF25263 P533884 CF23398 – Qiangsheng Detail:
Caterpillar Air Filter Replacement Maintenance
Caterpillar Excavator Diesel Filter Replacement Procedure
1. Prepare special tools for easy disassembly
2. Remove the excavator diesel filter counterclockwise
3. Fill the new diesel filter element with diesel oil and replace it
4. Pump oil to exhaust air
Caterpillar Air Filter Replacement Maintenance Interval
The Cat air filter should be replaced or cleaned at least every 2000 hours or when the warning light is on. The outer filter element can be cleaned up to 6 times and then must be replaced. The inner filter element is a one-time item, which cannot be cleaned and should be replaced directly. If the filter is damaged, it must also be replaced. Use clean, dry compressed air with a maximum pressure of 5 BAR for compressed air. Do not bring the nozzle closer to 3–5 cm. Blow the filter clean from the inside along the pleats.
Common models of Caterpillar filter elements:
1R-0716, 1R-0762, 1R-0770, 1R-0769, 1R-0751, 1R-0749, 1R-0741, 1R-0739, 1R-0756, 1R-0726, 4N-0015,4P0711,4P0710,142-1339,142-1404,131-8822,
131-8821,6I2505,6I2506,6I2503,6I2504,5I8670,5I7951,6T5068,6T0988,4N8216,4N8220,9L6639,4N6373,5H73714N8221,4W0752,2S5218,8N6700,
8N6717,7E4841, 5L7425,4L6060,6N6652,6N6655,2S2743,9L6647,9L6643,9L6648,2W2622,1W1801,7E4609,6N9915,7S8809,9Y9804,
4W5374,5I7739,4N5893,5S5918,1152367,1W3860,7E4609,2W2243,5I7738,1018314,1061111, 1051779.
Caterpillar Filter Features:
1. High-quality filter paper, high filtration efficiency and large ash capacity.
2. The number of folds of the filter element meets the service life requirements.
3. The first and last folds of the filter element are connected by clips or special glue.
4. The material of the central tube is excellent, and it is processed into a spiral shape, which is not easy to deform.
5. High-quality filter glue, so that the filter paper and the end cap are well sealed.
Caterpillar filter element involves: Caterpillar oil filter element, Caterpillar diesel filter element, Caterpillar air filter element, Caterpillar hydraulic oil filter element, Caterpillar oil-water separator filter element and other types of filter elements, ensuring low price, fast supply and excellent quality in the comparison of the same industry in my country.
Product description

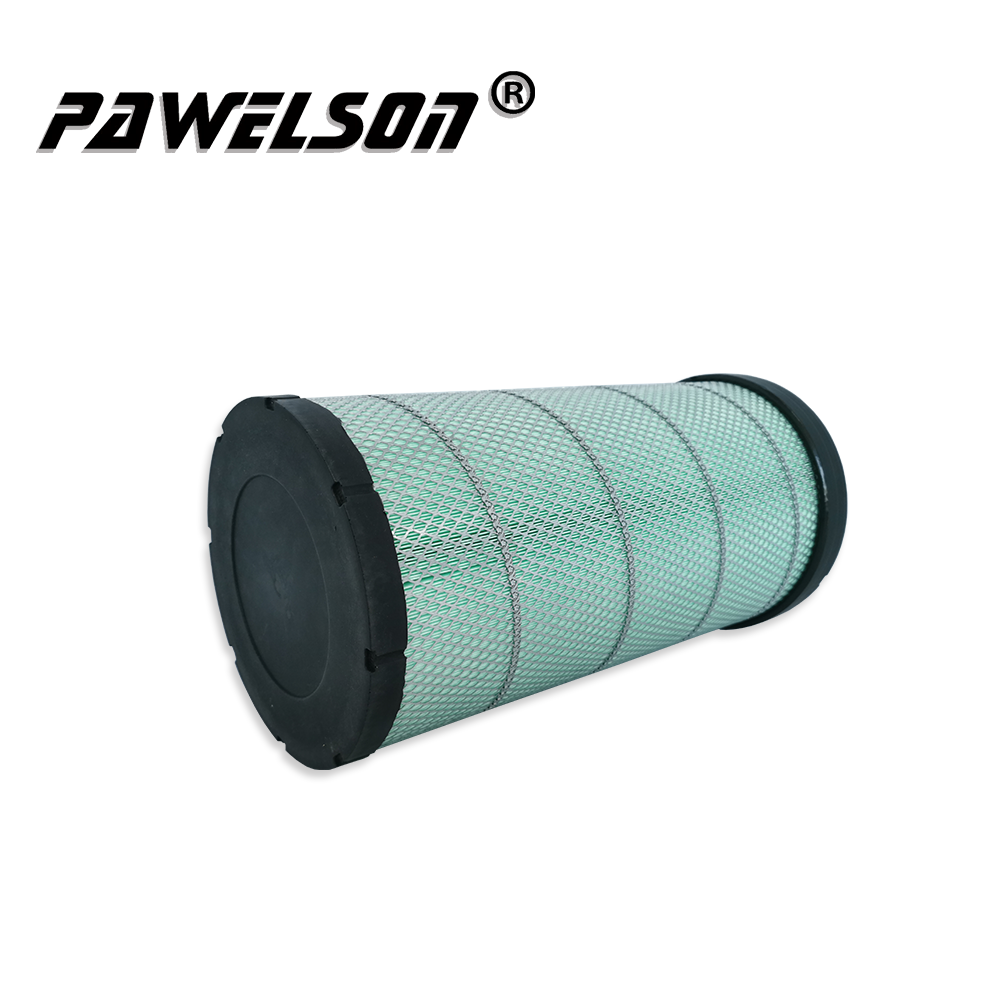

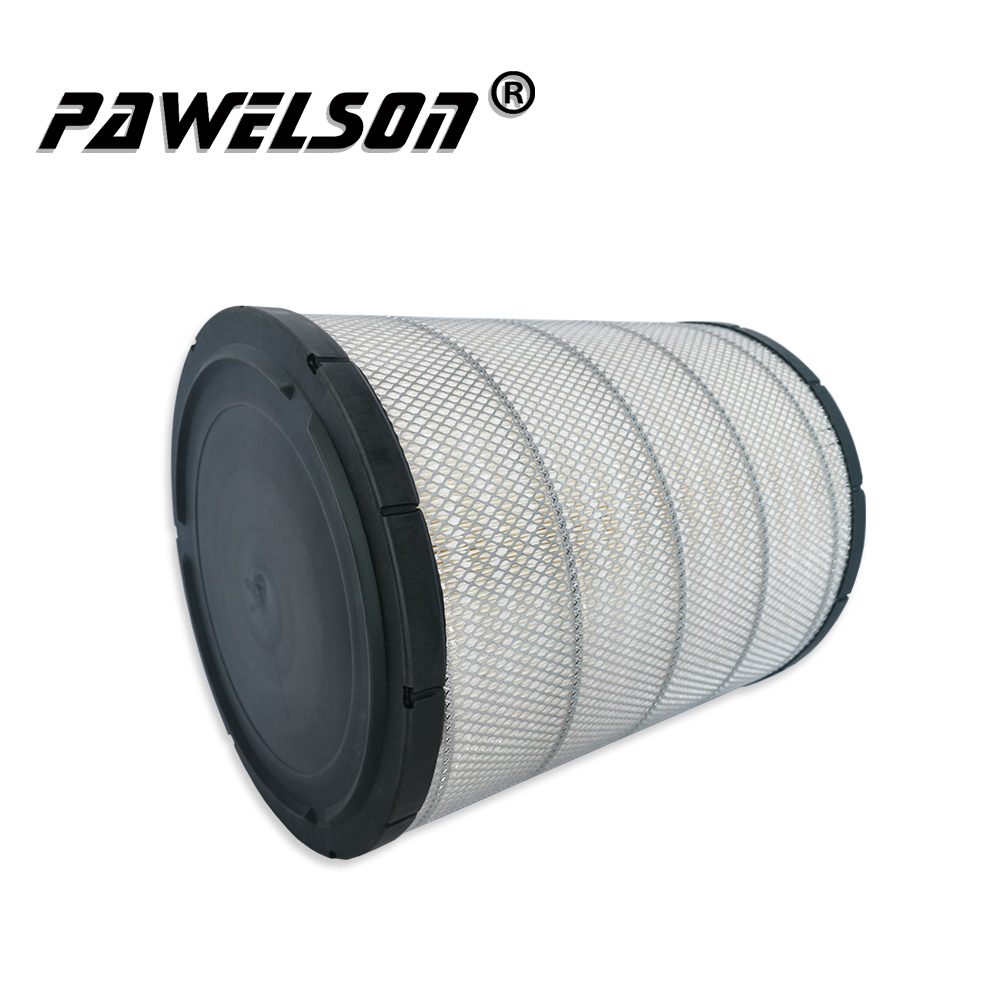

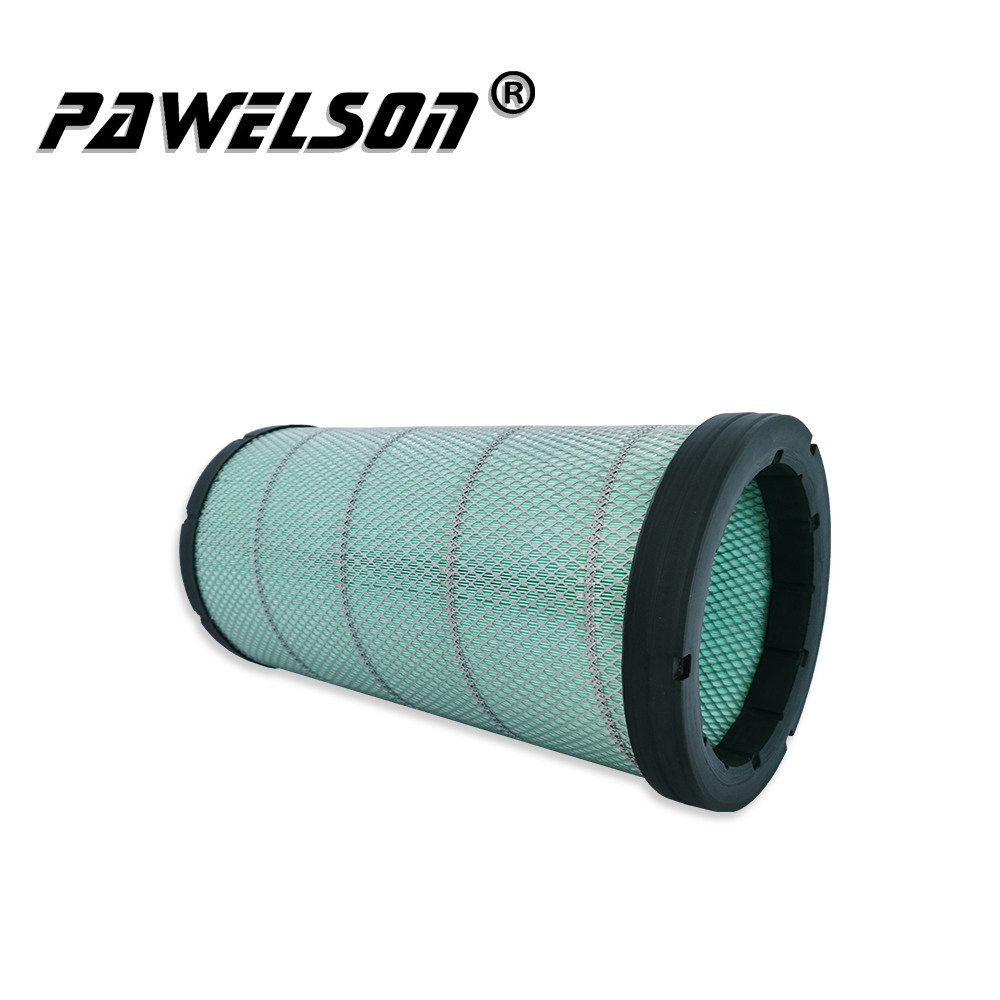

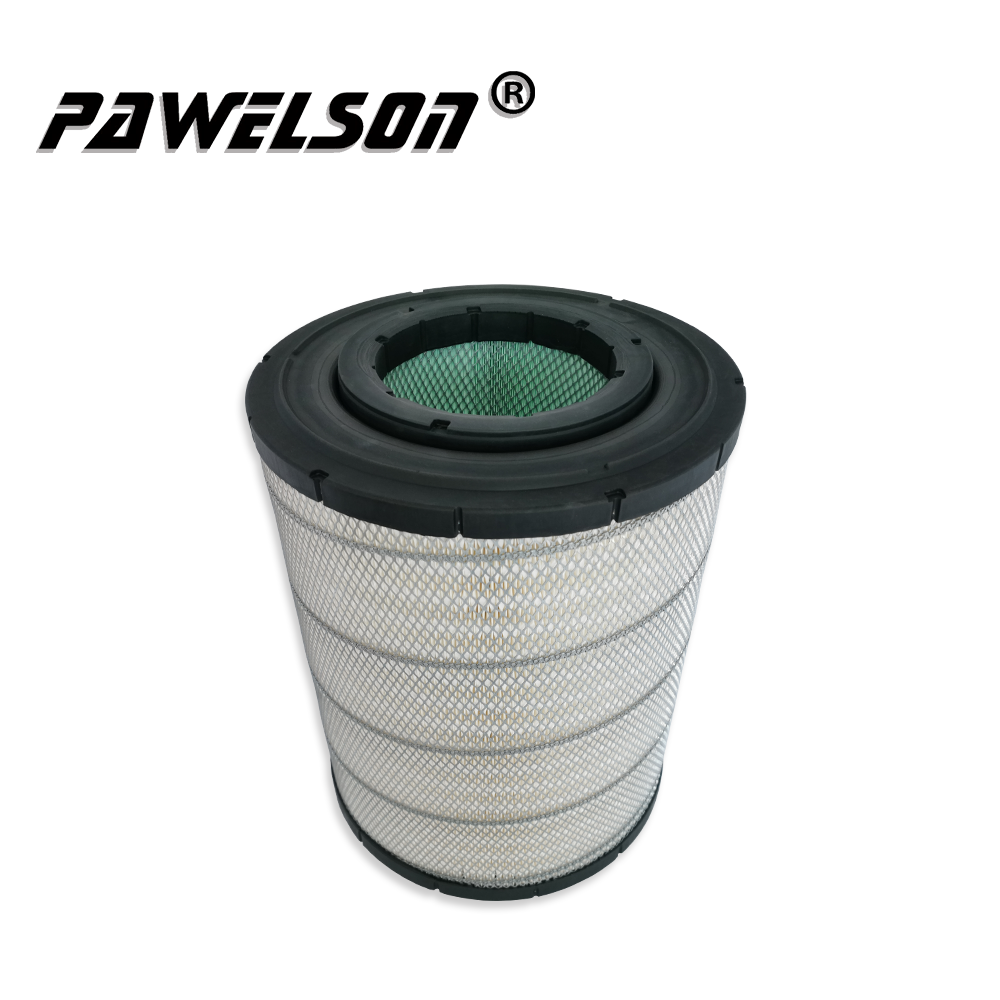

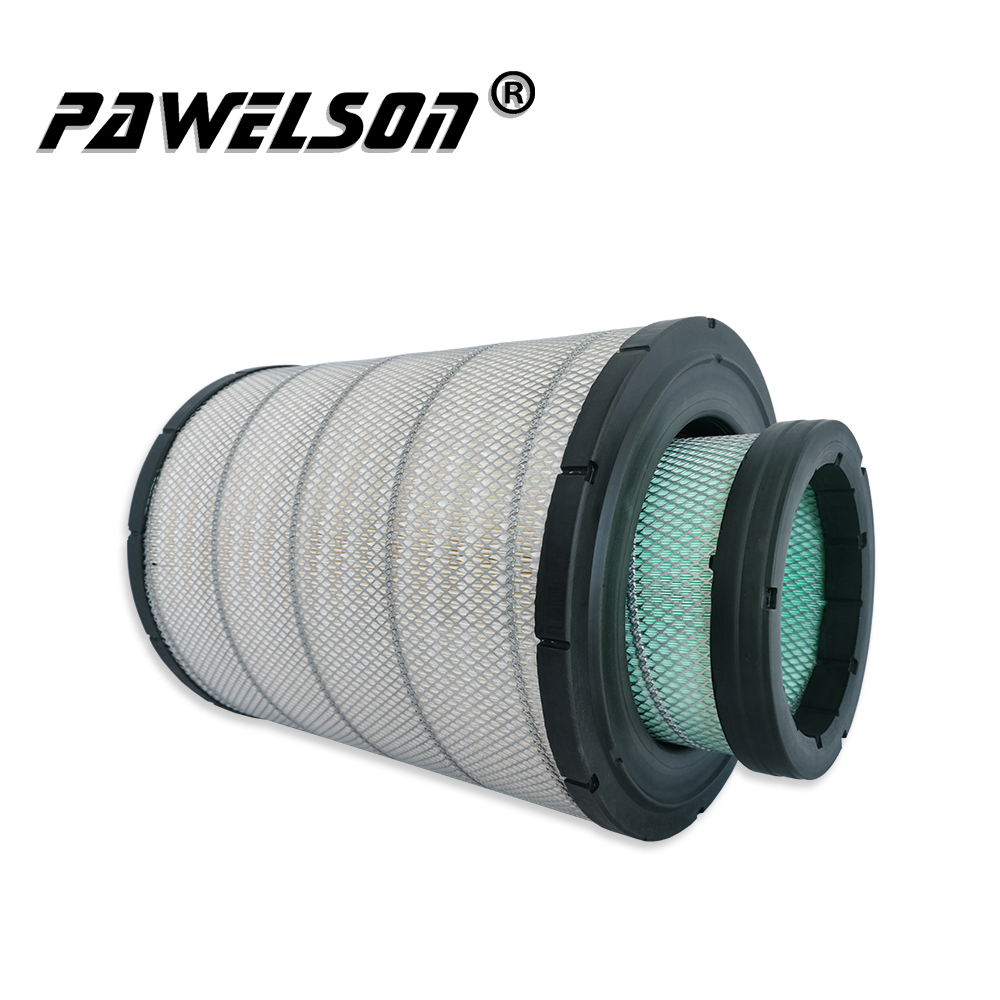

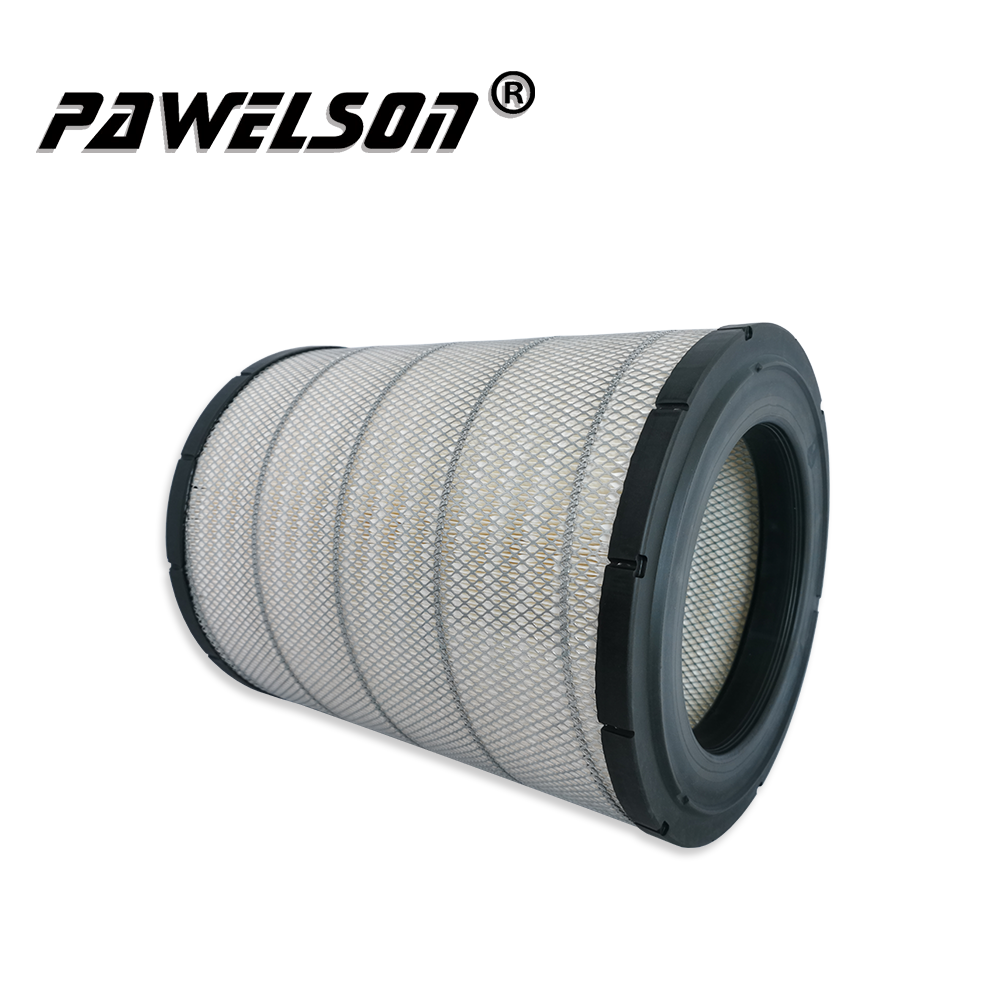

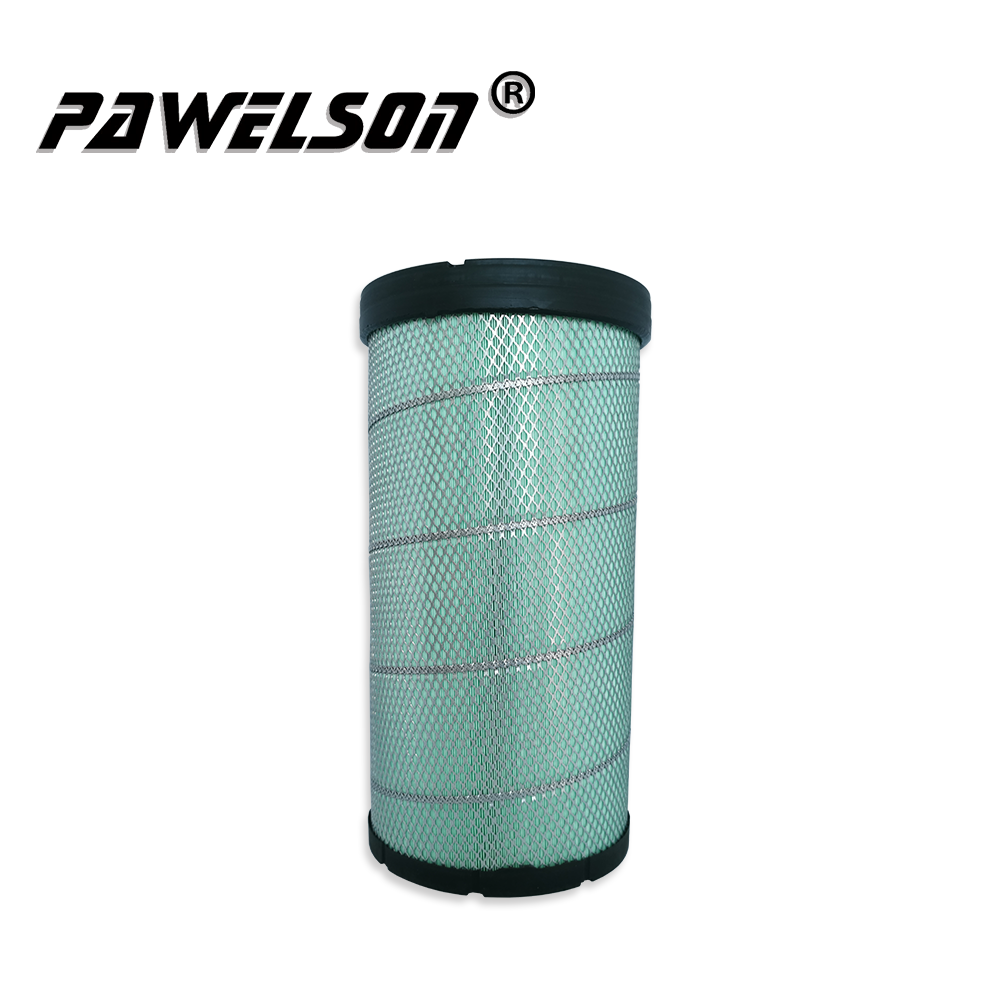

SK-1053AB CATERPILLAR excavator air filter for CAT 1063969 1327168 1063973 AF25263 P533884 CF23398
A:
| QS NO. | SK-1053A |
| OEM NO. | CATERPILLAR 1063969 CATERPILLAR 1327168 |
| CROSS REFERENCE | AF25262 P533882 C371930 |
| APPLICATION | CAT (345DL、349D2L、365C、374DL、390D、390F） |
| OUTER DIAMETER | 359 (MM) |
| INNER DIAMETER | 228 (MM) |
| OVERALL HEIGHT | 444/455 (MM) |
B:
| QS NO. | SK-1053B |
| OEM NO. | CATERPILLAR 1063973 |
| CROSS REFERENCE | AF25263 P533884 CF23398 |
| APPLICATION | CAT (345DL、349D2L、365C、374DL、390D、390F） |
| OUTER DIAMETER | 229/219 (MM) |
| INNER DIAMETER | 175 (MM) |
| OVERALL HEIGHT | 439 (MM) |
Our Workshop
Packing & Delivery
Our Exhibition
Our service
Product detail pictures:
