OEM High Quality Engine Air Filter Supplier – SK-1305AB – Qiangsheng

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

To create extra value for customers is our enterprise philosophy; buyer growing is our working chase for Cummins Air Filter, Air Filter Factories, Aftermarket Air Filter, We have extensive goods supply and the price is our advantage. Welcome to inquire about our products.
OEM High Quality Engine Air Filter Supplier – SK-1305AB – Qiangsheng Detail:

Features

(1) Suitable for the filtration of many kinds of dust in polishing, sand blasting and welding fumes , and powder dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Air Filter Elements

1.Using imported high quality materials, high precision, high dust holding capacity, good permeability, stable performance.Special filter paper embossing technology, fold uniformly, vertically and smoothly, more folds, more filter area increases.
2.With pioneered net lock technology, no burr, no rust; with thick net,so hardness is stronger, can effectively protect filter paper from Injury, and with grid smaller net, can effectively prevent particles to enter inside.
3.Using high-quality sealing tape, strong and flexible, not hard or bad;using AB glue, epoxy glue double paste, sealing performance enhanced.
4.Use high quality environmental friendly PU materials and molding technology, to ensure good end-elasticity, can against high pressure, and high or low temperature, seal firmly.

Function of air filter

Air filter refers to a device that removes particulate impurities in the air. When piston machinery (internal combustion engine, reciprocating compressor air filter, etc.) is working, if the inhaled air contains dust and other impurities, it will aggravate the wear of the parts, so an air filter must be installed. The air filter is composed of a filter element and a shell. The main requirements of air filtration are high filtration efficiency, low flow resistance, and continuous use for a long time without maintenance.

What are the advantages of an air filter?

The engine needs to suck in a lot of air during the working process. If the air is not filtered, the dust suspended in the air will be sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious “pulling the cylinder”, which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or intake pipe to filter out dust and sand in the air, ensuring that sufficient and clean air enters the cylinder
According to the filtration principle, air filters can be divided into filter type, centrifugal type, oil bath type and composite type.
During maintenance, the paper filter element must not be cleaned in oil, otherwise the paper filter element will fail, and it is easy to cause a speeding accident. During maintenance, only the vibration method, the soft brush removal method (to brush along the wrinkle) or the compressed air blowback method can only be used to remove the dust and dirt attached to the surface of the paper filter element. For the coarse filter part, the dust in the dust collecting part, the blades and the cyclone pipe should be removed in time. Even if it can be carefully maintained every time, the paper filter element cannot fully restore its original performance, and its air intake resistance will increase. Therefore, generally, when the paper filter element needs to be maintained for the fourth time, it should be replaced with a new filter element. If the paper filter element is cracked, perforated, or the filter paper and end cap are degummed, they should be replaced immediately.

Honeycomb filter performance advantages

The filter element is a key component for filtration products and equipment, and even directly related to the filtration effect in various application scenarios. Although there are relatively many types of filter elements to choose from, not all filter elements can meet the requirements of industry applications. , It is necessary to reasonably distinguish the functional types of the filter element in order to make the best use of it. In fact, the performance of the honeycomb filter element is very advantageous. As a small-sized filter consumable, the stability provided by the filter can be very good. The filtration problem of the oil system, so the honeycomb filter element has been widely used in vehicles such as logistics trucks.
It is undeniable that the demand for filtration products and consumables is relatively large today. Only in the field of logistics and transportation, the air intake system and oil system of logistics vehicles such as logistics trucks, light trucks, and container heavy trucks are dependent on high-quality filter elements. , but in the actual application process, you will find that the honeycomb filter element is relatively mature in all aspects of filtration, and can effectively filter the particulate impurities in the engine intake air and oil, so it will be used in various complex vehicle conditions. Give full play to the advantages of stable and reliable performance.
Of course, trucks are often faced with various complex road conditions during driving, so only a single mode and a filter element with conventional functions are not fully competent. Regardless of the air intake system or the oil system, a little carelessness will be due to particulate impurities. Pollution leaves hidden safety hazards. At this time, the installation and application of the truck air filter can enhance the filtration capacity invisibly. In this way, neither the air nor the oil products will be polluted and cause safety hazards. Therefore, for the air filter There is no room for sloppy application of filtering.
It can be seen that although there are differences in specifications and models on the surface of the filter element, as long as it can play its due role in the matching application scenario, especially the truck air filter, it can affect the engine oil and air intake system. If the logistics vehicle maintenance engineers can pay attention to the regular maintenance and maintenance of the truck filter system, it can virtually reduce the driving safety hidden danger of logistics vehicles.

Product description

A:

QS NO.  SK-1305A
CROSS  REFERENCE  K2741
DONALDSON  P628866
LARGEST OD  272/253(MM)
INTRNAL DIAMETER  146(MM)
OVERALL HEIGHT  412/422(MM)

B:

QS NO.  SK-1305B
DONALDSON  P628862
LARGEST OD  145/138(MM)
INTRNAL DIAMETER  110(MM)
OVERALL HEIGHT  373/377(MM)

Our Workshop

workshop
workshop

Packing & Delivery

Packing
Packing

Our Exhibition

workshop

Our service

workshop

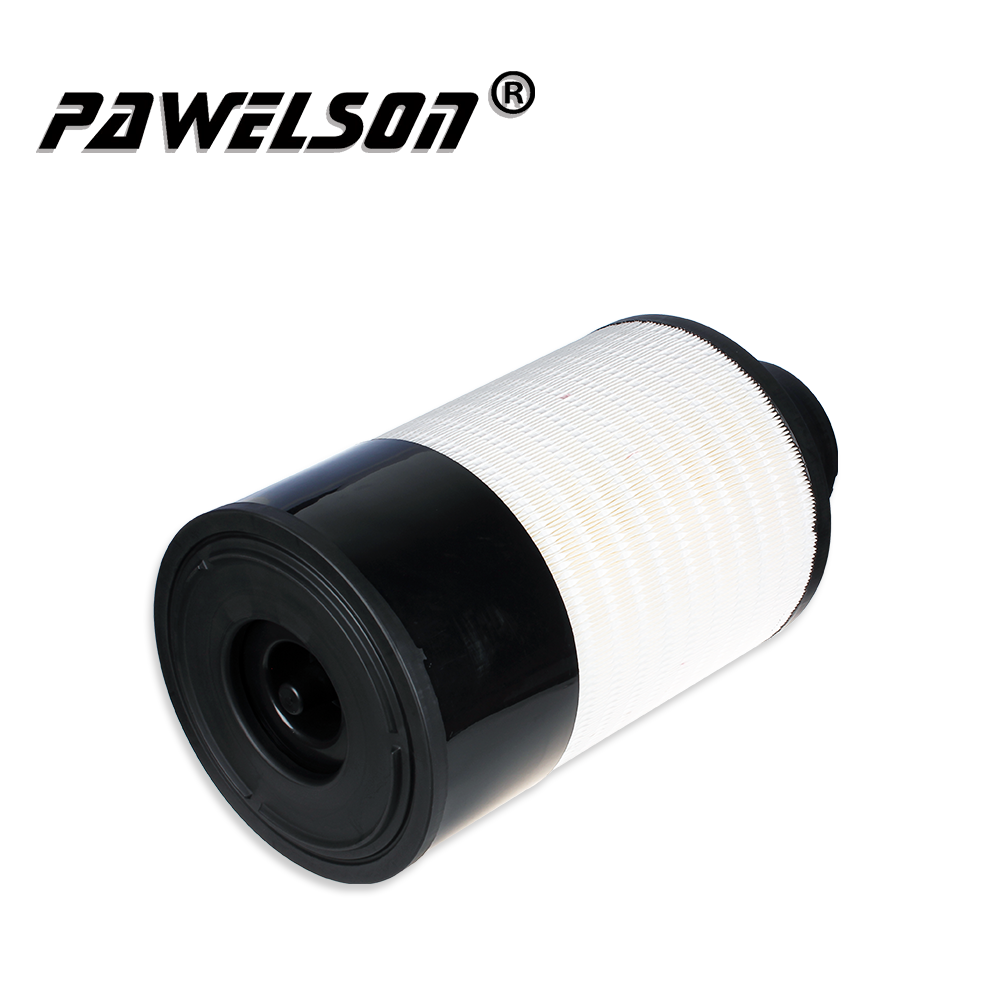

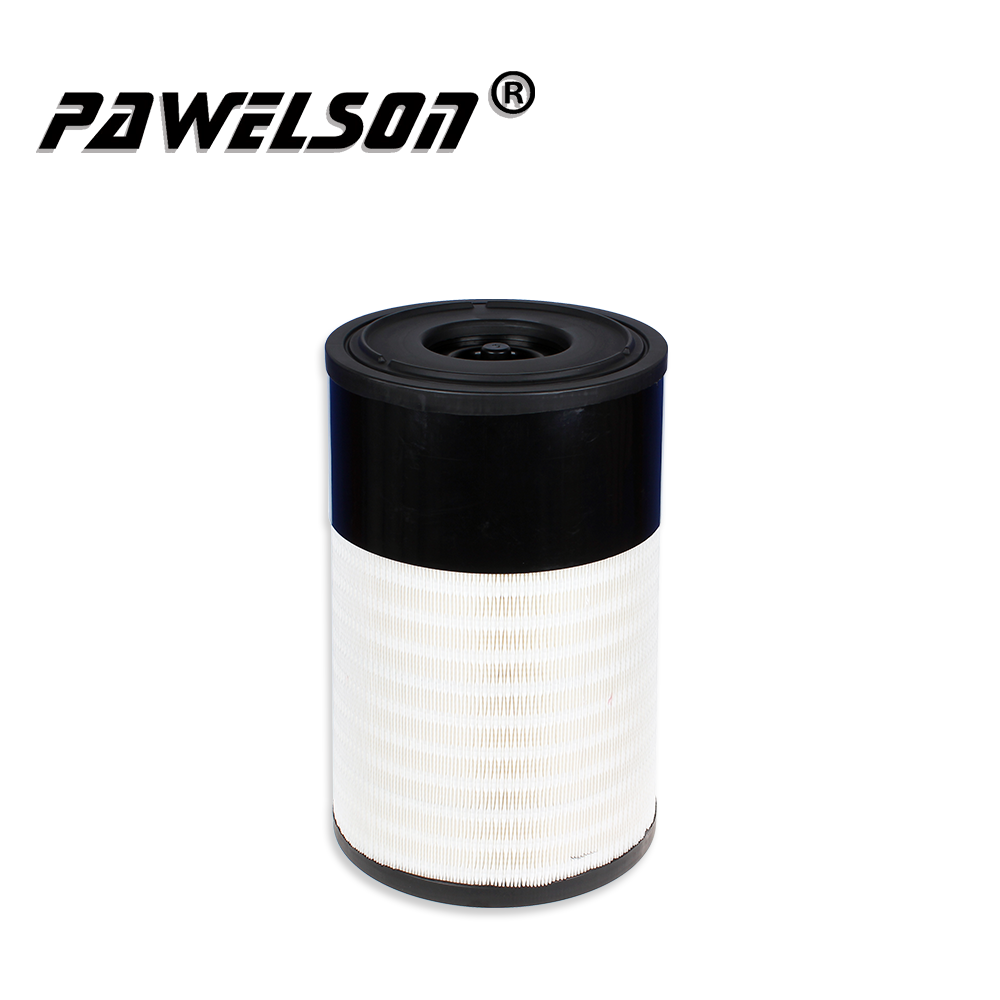

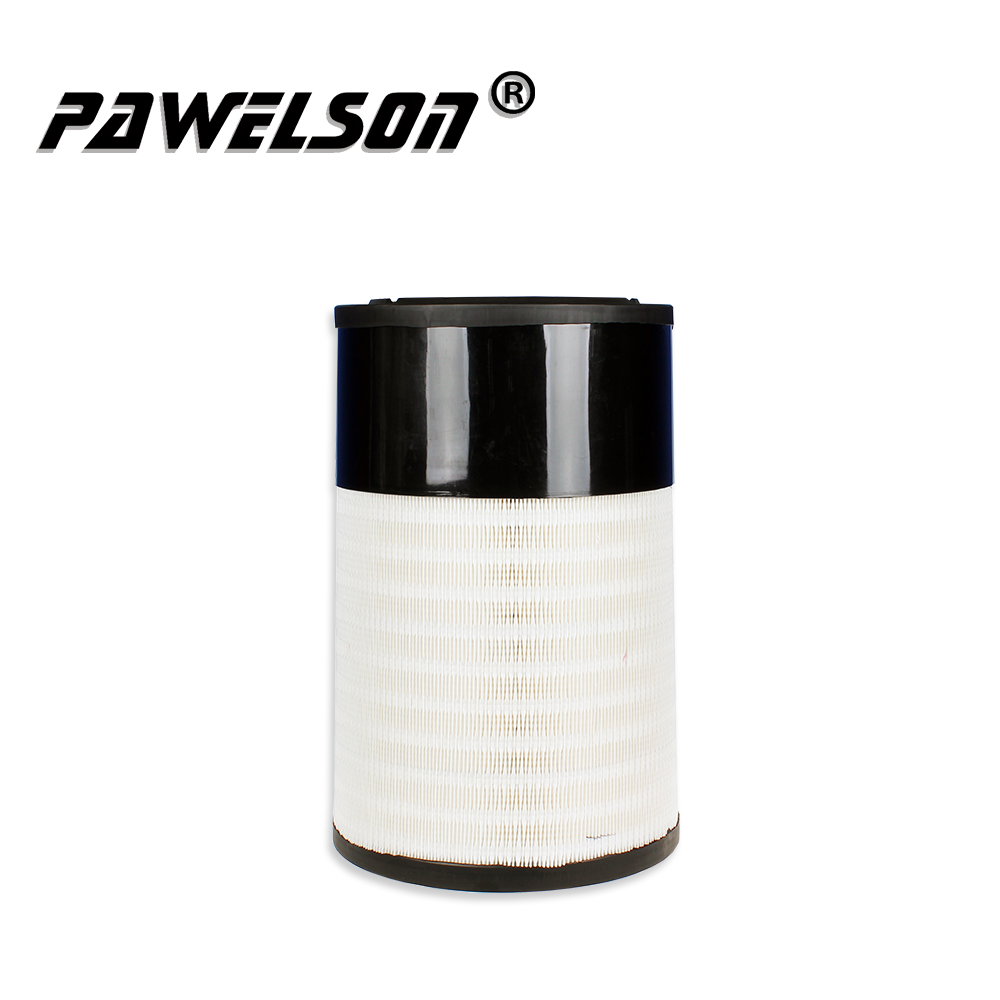

Product detail pictures:

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures

OEM High Quality Engine Air Filter Supplier –  SK-1305AB – Qiangsheng detail pictures
