OEM High Quality High Performance Air Filter Manufacturers – SK-1253A – Qiangsheng
OEM High Quality High Performance Air Filter Manufacturers – SK-1253A – Qiangsheng Detail:
Replace Kobelco excavator filter element
Kobelco excavator filter element matching models are available from stock: Kobelco oil filter element, Kobelco diesel filter element, Kobelco air filter element, Kobelco hydraulic oil filter element, Kobelco oil-water separator filter element and other types of filter elements, ensuring low prices in the industry comparison , Fast delivery and excellent quality.
Kobelco SK130/SK135/SK140-8 excavator filter element factory direct sales spot supply / low price and high quality
Air filter: YY11P00008S0003
Oil filter: VA32G4001100
Diesel filter element: VA3436204100
Gas oil filter element: VA32G6200100
Gas oil filter element: YN21P01068R100
Hydraulic oil return filter element YN52V01016R610
Kobelco SK200-8/SK210-8 excavator filter element price spot supply / low price and high quality
Air filter: YY1100034S001
Oil filter element: VH15613-E0120
Diesel filter element: VH23390-E0500
Gas oil filter element: YN21P01068R100
Hydraulic oil return filter element YN52V01016R610
Maintenance and maintenance of Kobelco excavator filter elements
1. Daily maintenance: check, clean or replace the air filter element; clean the inside of the cooling system; check and tighten the track shoe bolts; check and adjust the back tension of the track; check the excavator air intake heater; replace the bucket teeth; adjust the excavator shovel Bucket clearance; check the front window cleaning fluid level; check and adjust the excavator air conditioner; clean the floor in the cab; replace the crusher filter element (optional).
2. After the new excavator works for 250 hours, the fuel filter element and the additional fuel filter element should be replaced; check the clearance of the excavator engine valve.
3. When cleaning the inside of the cooling system, after the engine is fully cooled, slowly loosen the water injection port cover to release the internal pressure of the water tank, and then water can be discharged; do not clean the engine while the engine is working, the high-speed rotating fan will cause danger; when cleaning or When replacing the coolant, the machine should be parked on a level surface; the coolant and corrosion inhibitor should be replaced according to the table.
Precautions for installing filter elements in Kobelco excavators
1. Before installation, check whether the filter element is damaged and whether the O-ring is in good condition.
2. When installing the filter element, keep your hands clean, or wear clean gloves.
3. Before installation, apply Vaseline on the outside of the O-ring to facilitate installation.
4. When installing the filter element, do not remove the packaging plastic bag. Pull the plastic bag backwards. After the upper head is leaked out, hold the lower head of the filter element with the left hand and the filter element body with the right hand, and put the filter element into the filter element seat of the tray. , press down firmly, remove the plastic bag after installation.
Kobelco excavator air conditioner filter element should be replaced every 1000 hours or 5 months of operation. If the air filter is clogged, the air intake will be reduced and the cooling/heating capacity will be reduced. Therefore, it should be cleaned or replaced regularly (some brands of air conditioner filters are located at the bottom of the rear of the cab).
Use clean, dry compressed air with a maximum pressure of 5 BAR for compressed air. Do not bring the nozzle closer to 3 – 5 cm. Blow the filter clean from the inside along the pleats.
Kobelco excavator filter adapter models:
SK350LC-10 SK75-8 SK60-8 SK60-10 SK130-8 SK130 SK130LC-11 SK140LC-8 SK140SRLC-7 SK200 SuperX SK210D-10SK210D-10 SK210LC-10 SK210LC SuperX SK220XD-10 SK250-10 SK250 SuperX SK260LC-10 SK260LC SuperX SK270XD-10 SK330-10 SK330 SuperX SK350LC SuperX SK380XD-10 SK460-8 SK480LC-8 SK495D-8 SK495D SuperX
Kobelco Excavator Filter Features:
1. High-quality filter paper, high filtration efficiency and large ash capacity.
2. The number of folds of the filter element meets the service life requirements.
3. The first and last folds of the filter element are connected by clips or special glue.
4. The material of the central tube is excellent, and it is processed into a spiral shape, which is not easy to deform.
5. High-quality filter glue, so that the filter paper and the end cap are well sealed.
Kobelco filter element involves: Kobelco oil filter element, Kobelco diesel filter element, Kobelco heavy industry air filter element, Kobelco hydraulic oil filter element, Kobelco oil-water separator filter element and other types of filter elements, ensuring low price and fast supply in the industry comparison. Excellent quality.
Product description
| QS NO. | SK-1253 |
| DONALDSON | P776158 |
| FLEETGUARD | AF1811 |
| LARGEST OD | 178/152(MM) |
| INTRNAL DIAMETER | 92(MM) |
| OVERALL HEIGHT | 392/384(MM) |
| MOUNTING HOLES | 16(MM) |
Our Workshop
Packing & Delivery
Our Exhibition
Our service

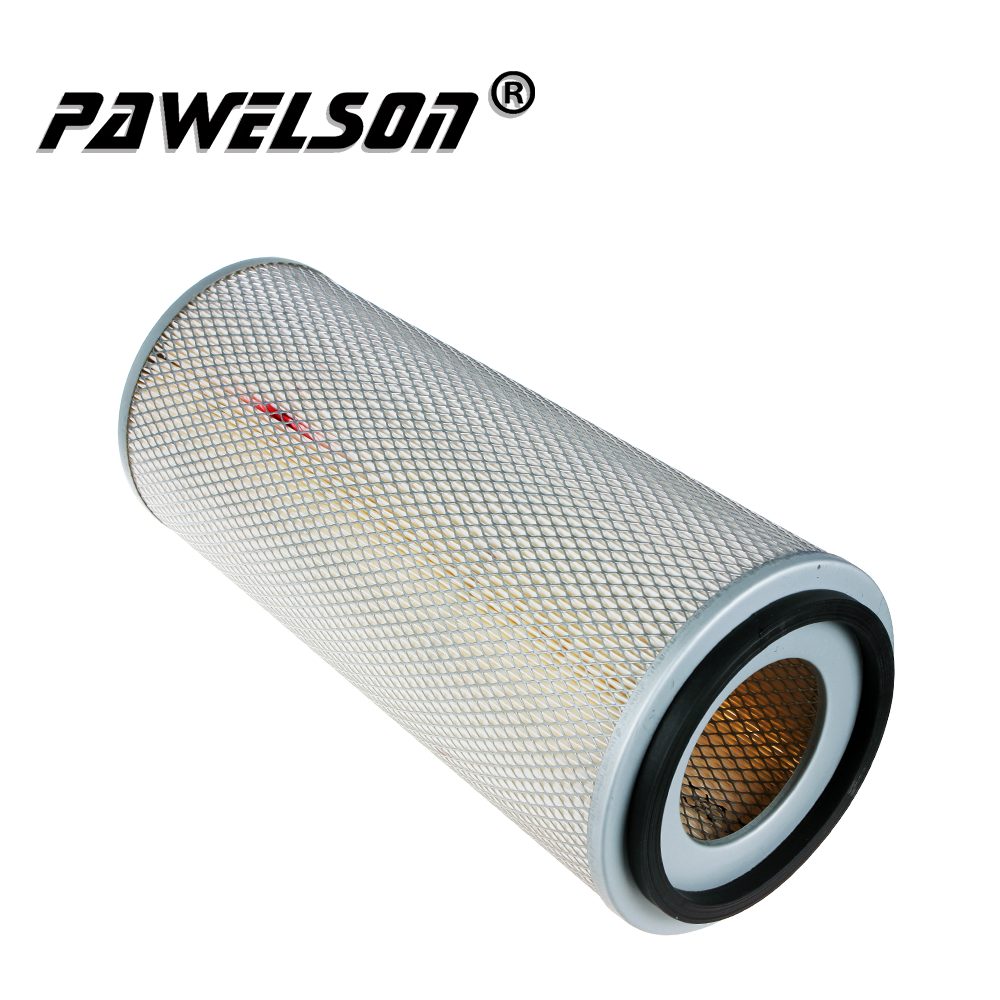

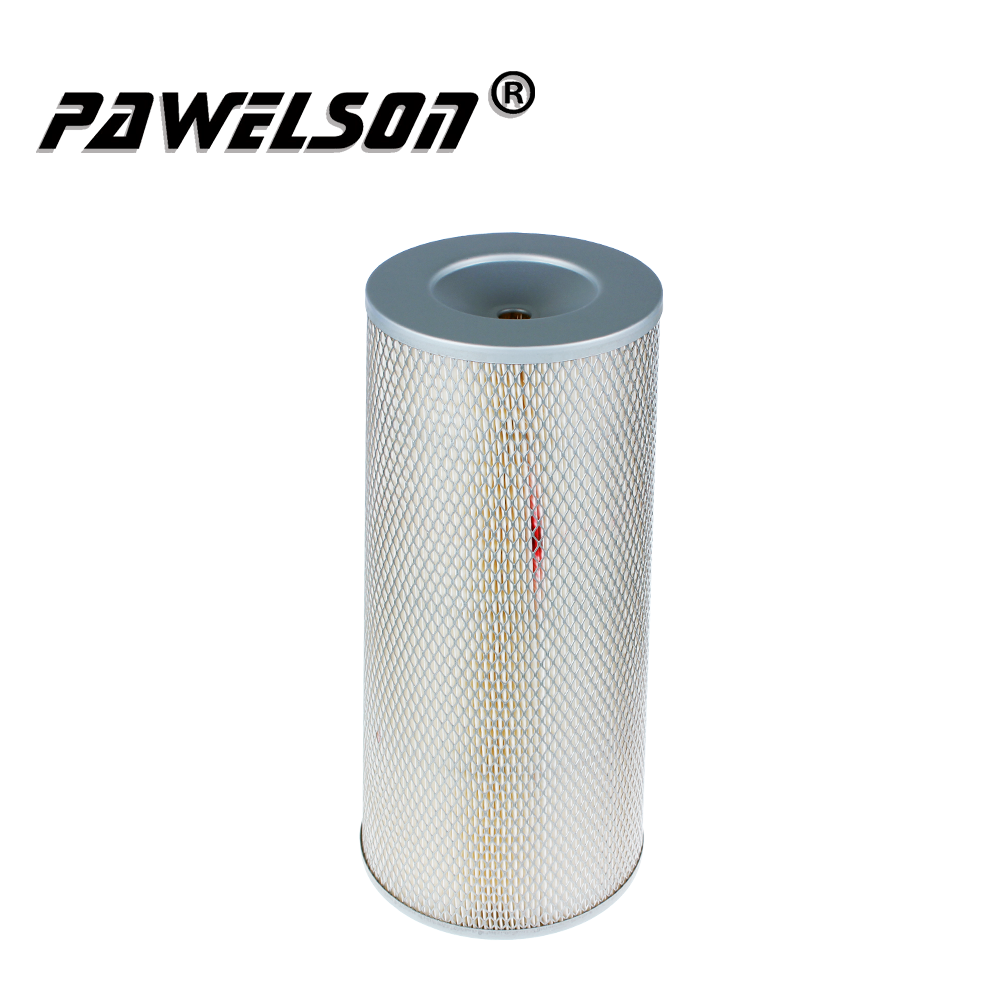

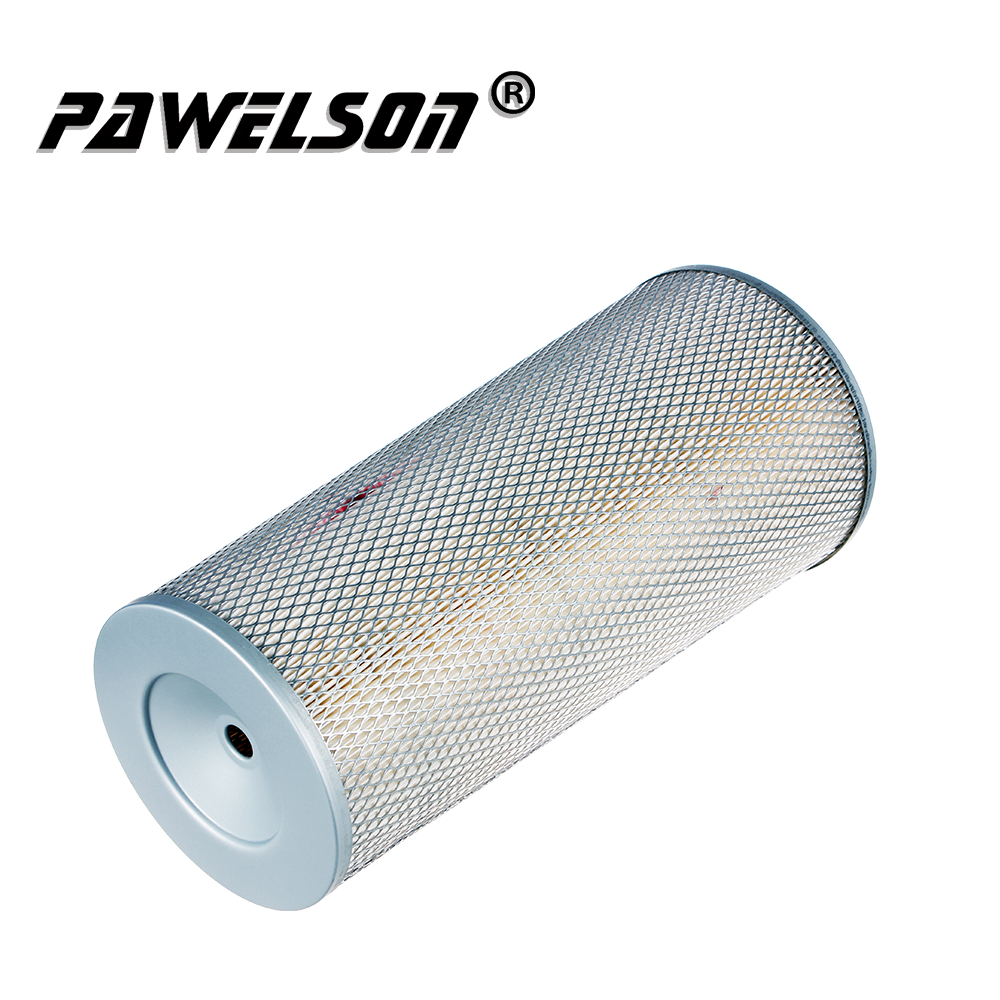

Product detail pictures:
