Filter elements are the first choice for most liquid and gas filtration. Hydraulic Oil Filter Ultrafine Fiberglass Filters provide additional protection for your filtration system with increased dirt absorption capacity and particle capture efficiency. The fibers in high-quality hydraulic oil filters produced by Vanno Filters are generally small and uniform in size. This keeps contaminants out of the system to extend system life and reduce downtime. The filter media conforms to the latest ISO16889 standard.
What is a hydraulic filter element?
A hydraulic filter element is a filtration product that is placed into the housing of the equipment to reduce contamination in the fluid to a desired value, and then maintain and stabilize that level throughout the operating time of the system.
At the heart of the filter is the filter element that performs the actual filtering and/or dewatering function in the housing. The filter element consists of several pleated filter and support layers, which are placed as cylinders around or inside a stabilizing support tube. These mesh packs are sealed by end caps. Depending on the type of filter, the flow through the filter element is from outside to inside or from inside to outside. Depending on the filter material, the filter screen pack is wrapped in an additional outer plastic wrap.
Here are some performance characteristics of high-quality hydraulic filter elements:
High particle separation through wide particle size and differential pressure range
High contamination retention capacity
High pressure stability and low pressure loss
Various filter levels to choose from
Wide range of applications
Extensive model range
The best filter material for a specific application
How to choose a high-quality hydraulic oil filter?
Choose a higher filter level
We recommend that you be aware that the components in the hydraulic or lubrication circuit that are most susceptible to contamination determine the oil cleanliness level and thus the filtration level of the entire system. In critical applications, we recommend that you separate hydraulic or lubrication circuits.
Choose your filter material
Due to the different filter substances and the variety of hydraulic filter element applications, there are different filter elements on the market that are filtered for corresponding filter conditions.
The above are the selection criteria for high-quality hydraulic oil filter elements. After selecting the hydraulic oil filter element, it is necessary to ensure that the hydraulic filter element is regularly maintained during its use and has been replaced in time.

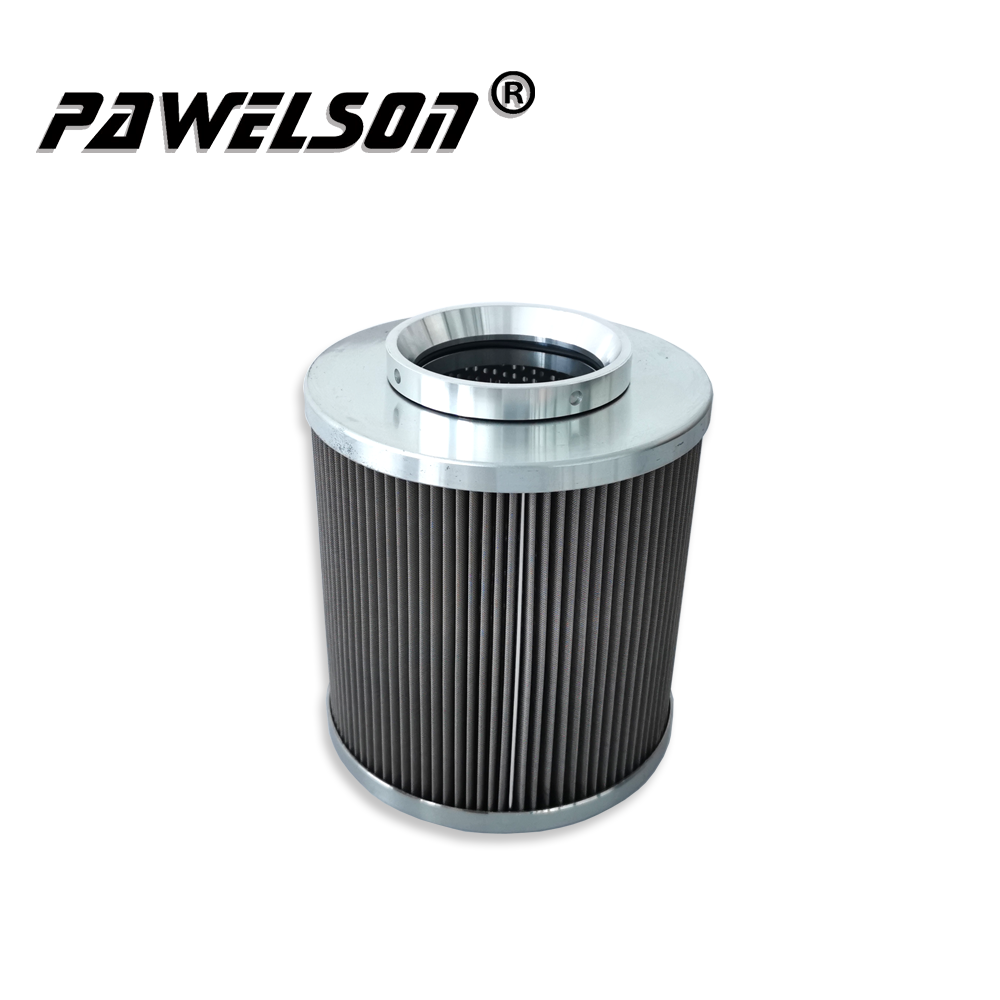

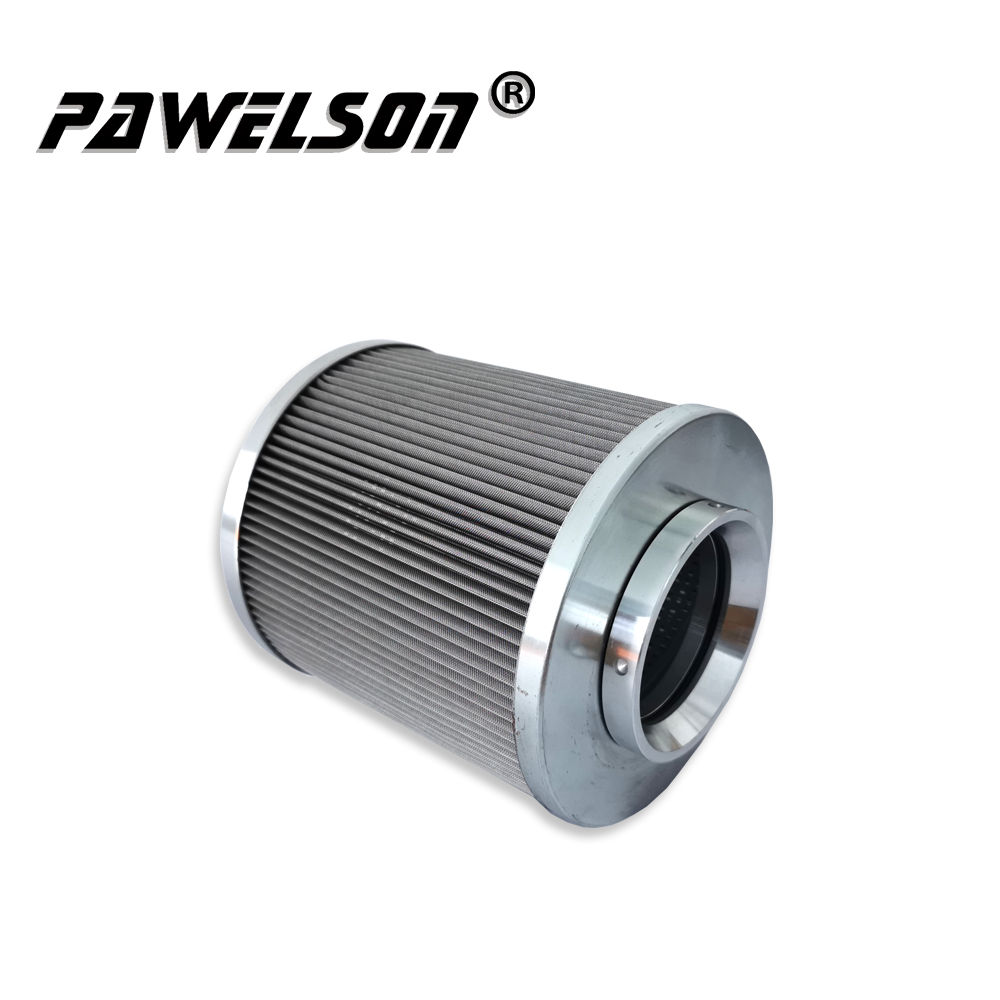

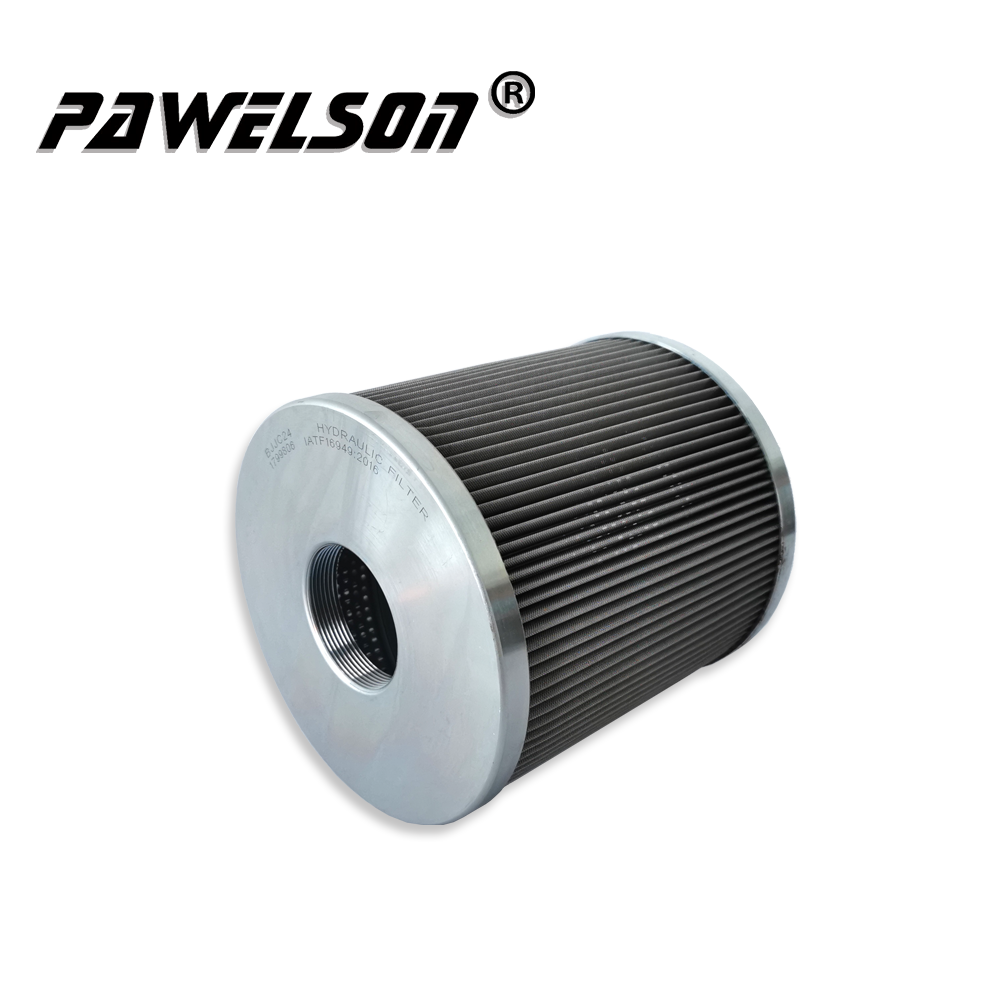

QS NO. | SY-2274 |
CROSS REFERENCE | 1799806 |
DONALDSON | |
FLEETGUARD | |
ENGINE | XCMG XE150/XE210 suction filter |
VEHICLE | XCMG suction filter |
LARGEST OD | 180(MM) |
OVERALL HEIGHT | 203/188 (MM) |
INTRNAL DIAMETER | 85 M62*2 (MM) |
