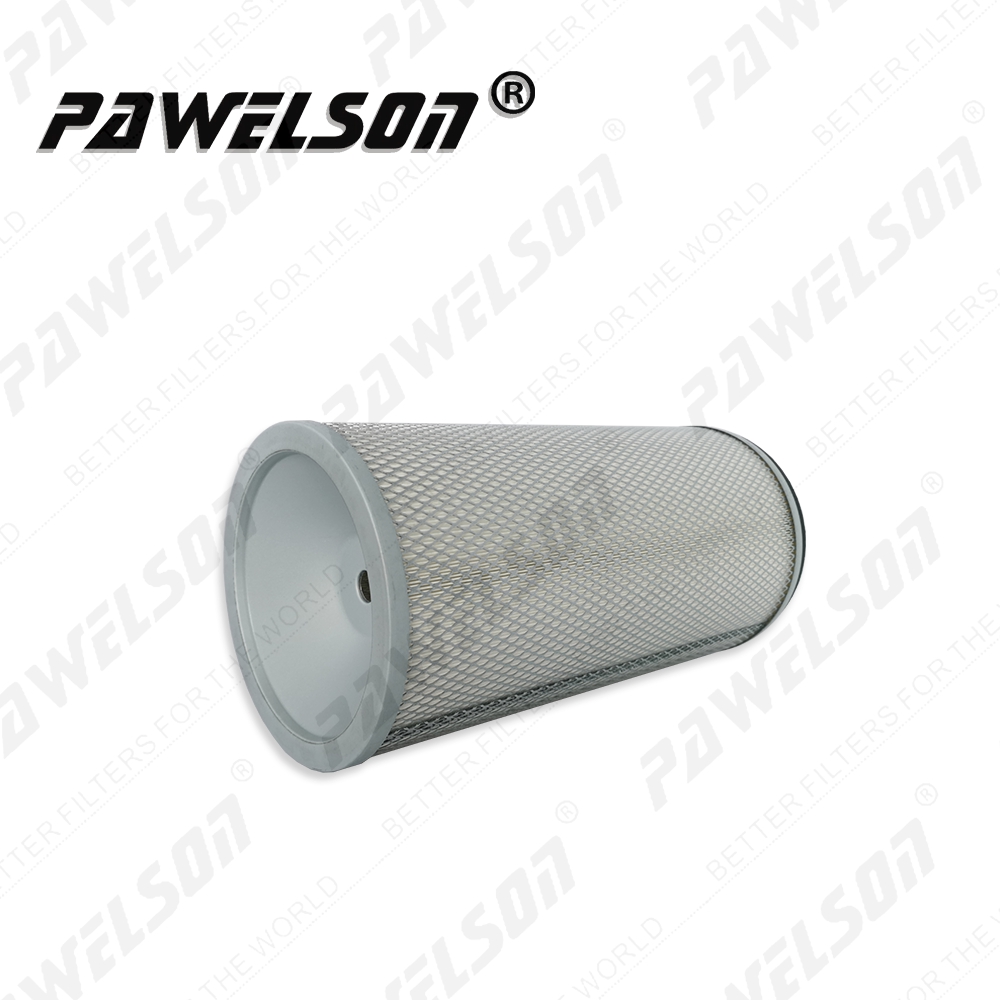

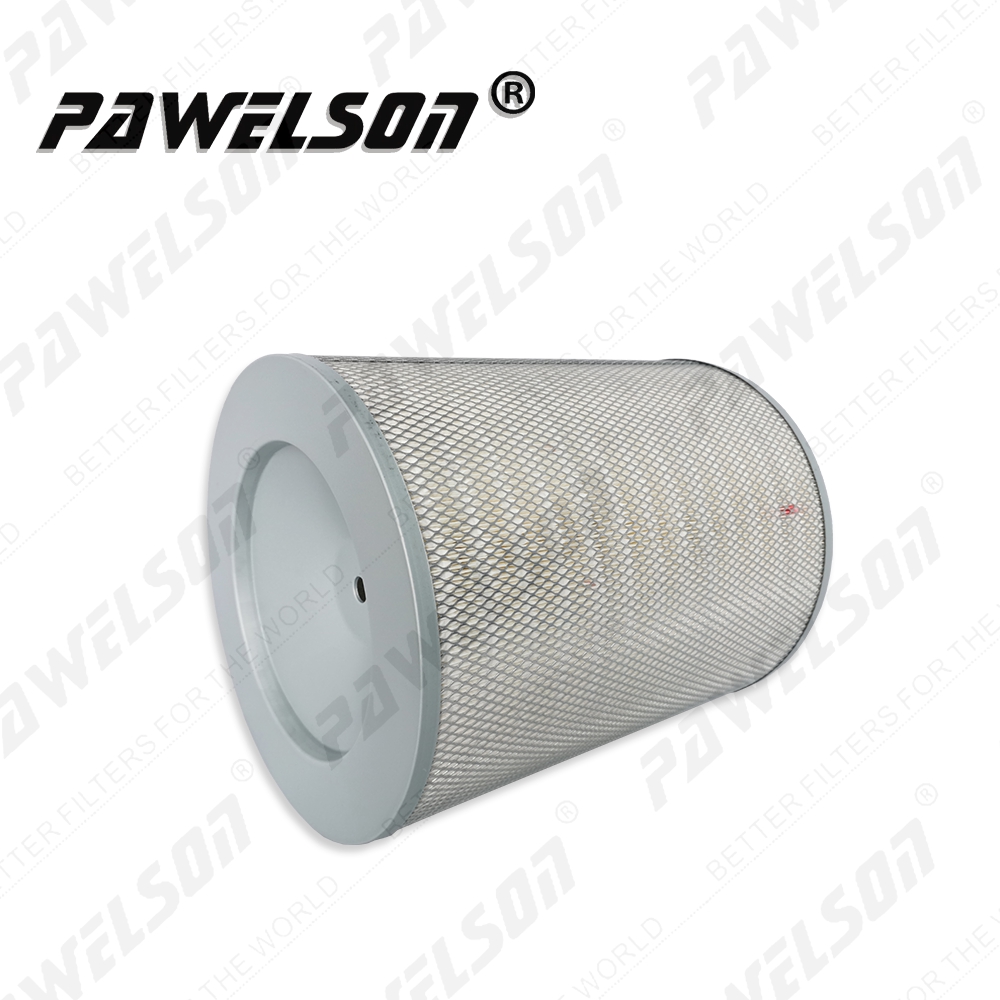

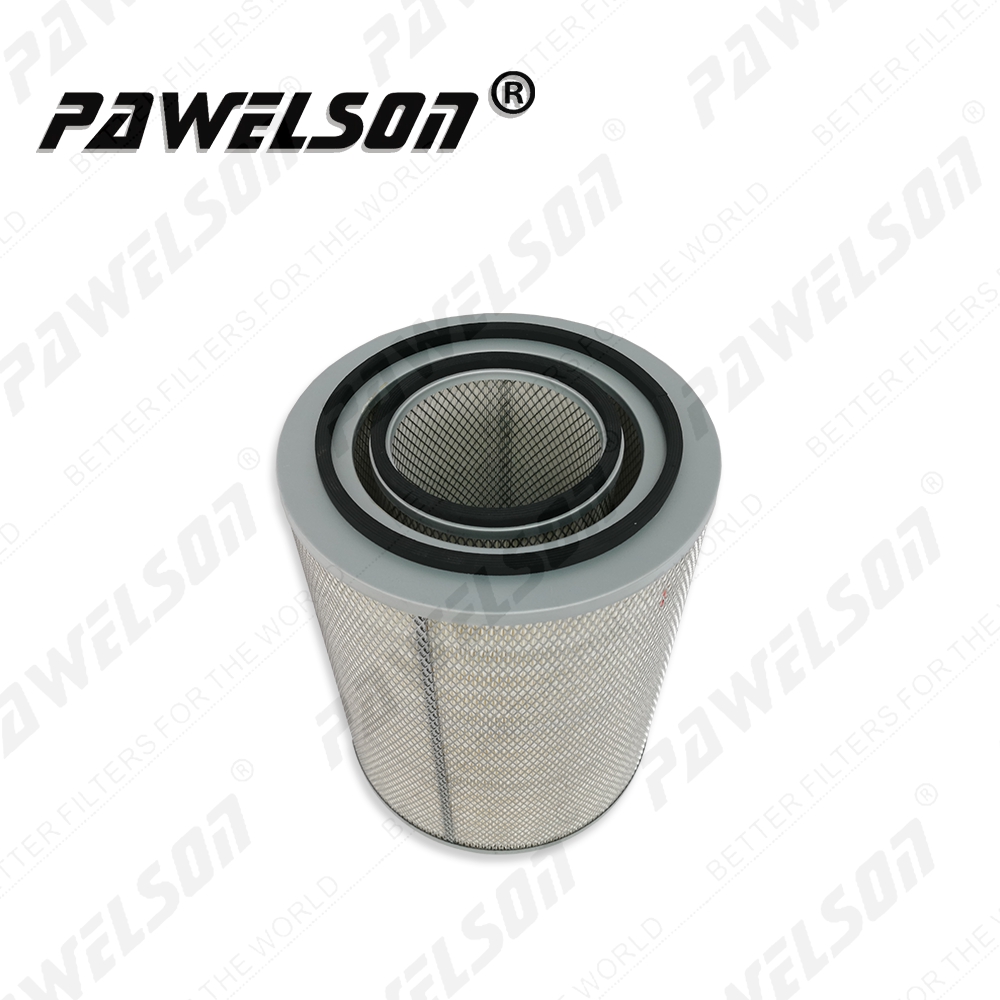

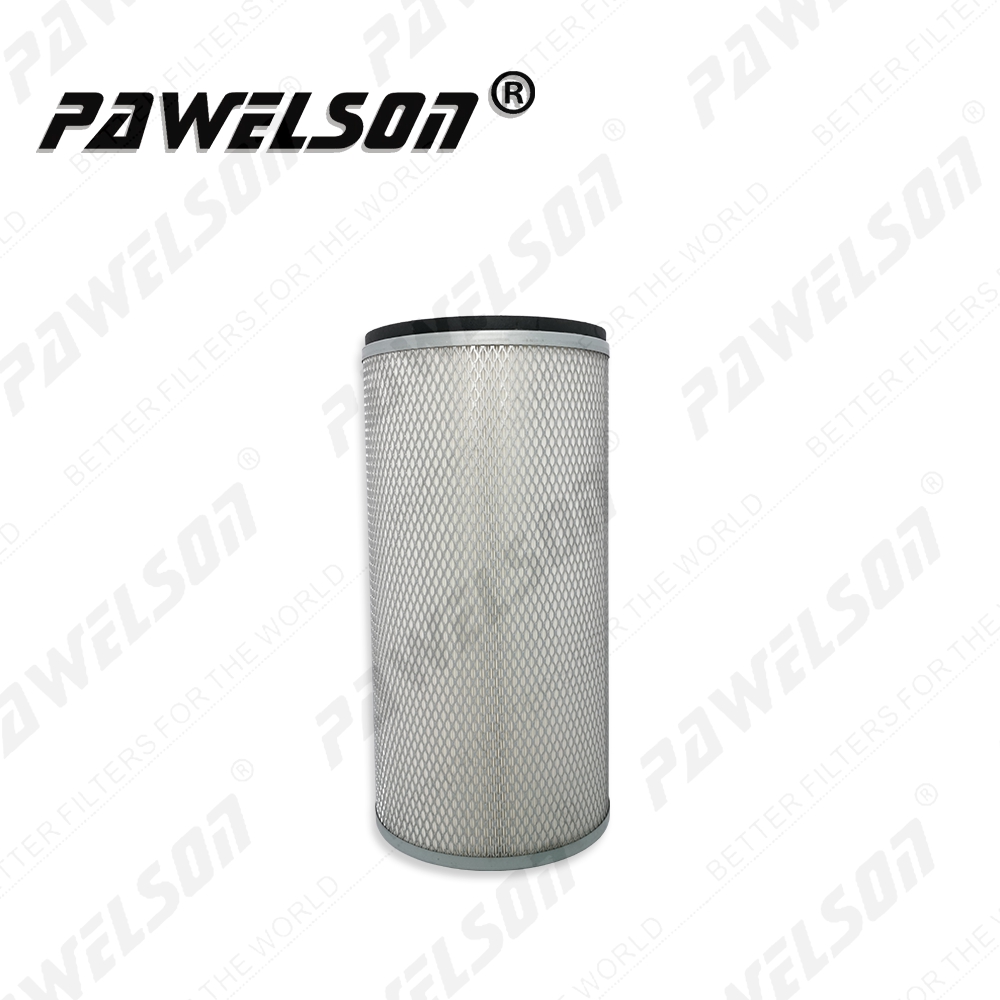

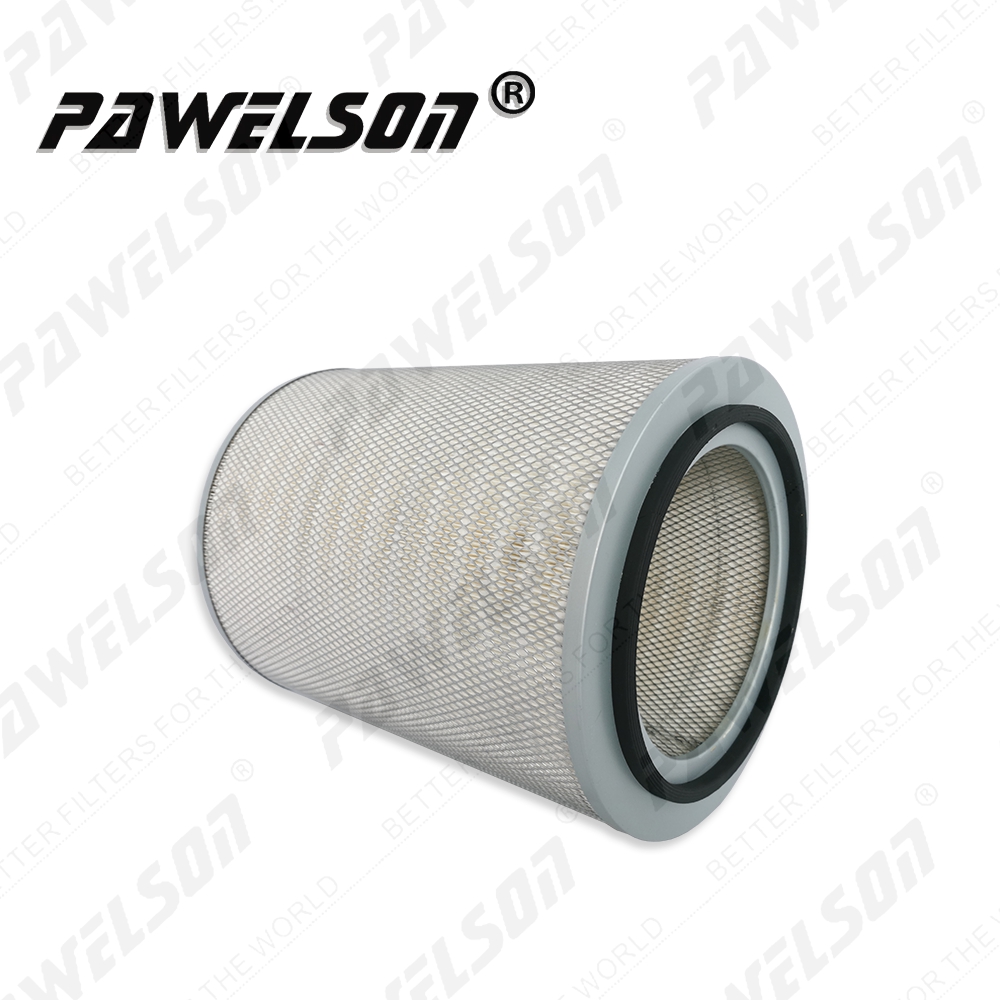

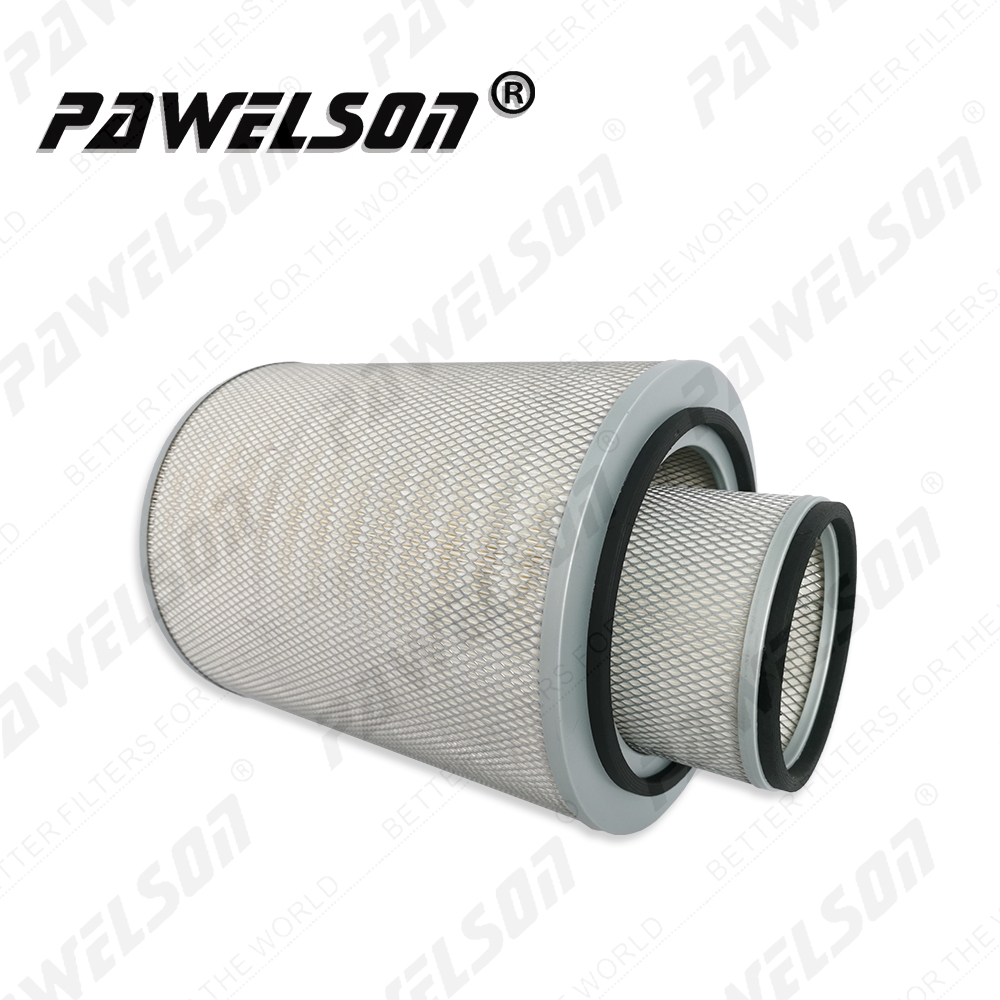

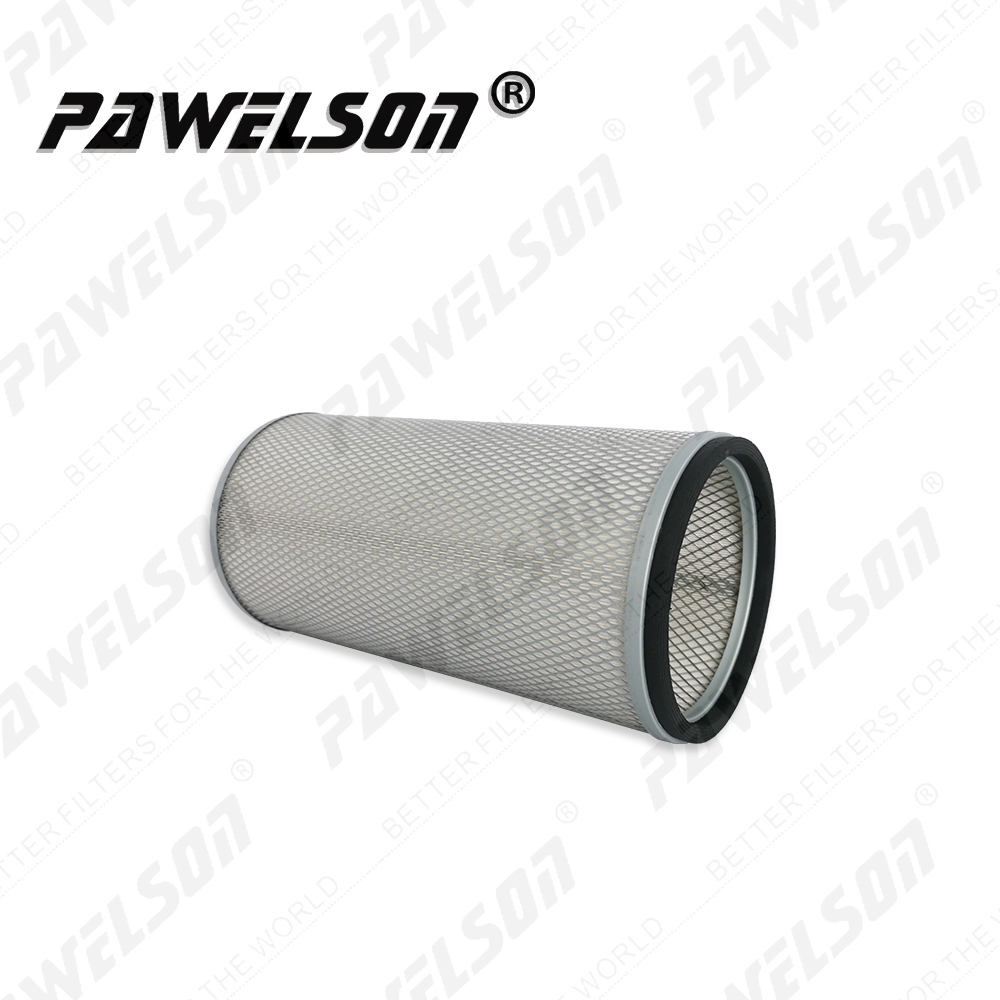

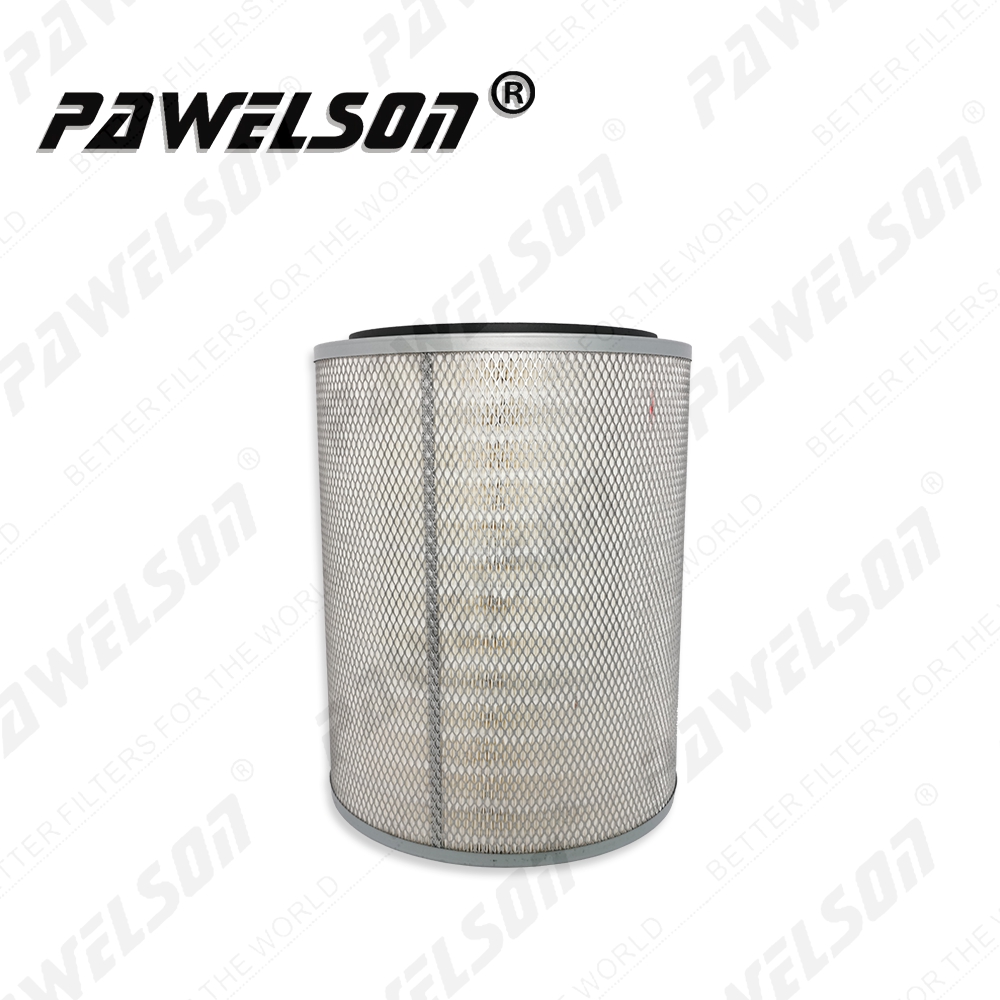

SK-1364AB HINO 700 pump truck air filter assembly use for 178013470 17801E0060 S178013530 17801EW070 P500240 PA5701

Short Description:

QS NO.: SK-1364A

OEM NO. : HINO 178013470 HINO 17801E0060 HINO S178013530 HINO 17801EW070

CROSS  REFERENCE: P500240 PA5701

APPLICATION:  HINO 700 truck PROFIA SS 13000 SH 13000

OUTER DIAMETER: 327 (MM)

INNER DIAMETER:  214/18 (MM)

OVERALL HEIGHT: 401/411 (MM)



QS NO.: SK-1364B

OEM NO. : HINO 178013480 HINO 17801EW080 HINO S178013540

CROSS  REFERENCE: P500241 PA5702

APPLICATION: HINO 700 truck PROFIA SS 13000 SH 13000

OUTER DIAMETER: 190 (MM)

INNER DIAMETER: 156.5/18 (MM)

OVERALL HEIGHT: 371  (MM)


Product Detail

Product Tags

Pump truck filter assembly

Pump truck filter assembly maintenance:

1. Under normal circumstances, the main filter element should be maintained every 120-150 hours of work (8000-10000 kilometers of driving) or when the maintenance indicator shows a signal. In areas with poor roads or large sandstorms, the maintenance period should be shortened appropriately.

2. The maintenance method of the main filter element, gently take out the main filter element, (no dust should fall on the safety filter element), use compressed air to blow off the dust from all parts from the inside to the outside. (It is strictly forbidden to knock, collide or wash with water with heavy objects)

3. The safety filter element does not need maintenance. After the main filter element is maintained for five times, the main filter element and the safety filter element should be replaced in time.

If the main filter element is found damaged during maintenance, the main filter element and the safety filter element should be replaced at the same time.

Product description

SK-1364AB HINO 700 pump truck air filter assembly use for 178013470 17801E0060 S178013530 17801EW070 P500240 PA5701

A:

QS NO. SK-1364A
OEM NO. HINO 178013470 HINO 17801E0060 HINO S178013530 HINO 17801EW070
CROSS  REFERENCE P500240 PA5701
APPLICATION HINO 700 truck PROFIA SS 13000 SH 13000
OUTER DIAMETER 327 (MM)
INNER DIAMETER 214/18 (MM)
OVERALL HEIGHT 401/411 (MM)

B:

QS NO. SK-1364B
OEM NO. HINO 178013480 HINO 17801EW080 HINO S178013540
CROSS  REFERENCE P500241 PA5702
APPLICATION HINO 700 truck PROFIA SS 13000 SH 13000
OUTER DIAMETER 190 (MM)
INNER DIAMETER 156.5/18 (MM)
OVERALL HEIGHT 371  (MM)
