How much do you know about air filters?
Air filter element is a type of filter, also known as air filter cartridge, air filter, air filter element, etc. Mainly used for air filtration in engineering locomotives, automobiles, agricultural locomotives.
Types of Air Filters
According to the filtration principle, the air filter can be divided into filter type, centrifugal type, oil bath type and compound type. The air filters commonly used in engines mainly include inertial oil bath air filters, paper dry air filters, and polyurethane filter element air filters.
The inertial oil bath air filter has undergone three-stage filtration: inertial filtration, oil bath filtration, and filter filtration. The latter two types of air filters are mainly filtered through the filter element. The inertial oil bath air filter has the advantages of small air intake resistance, can adapt to dusty and sandy working environment, and has a long service life.
However, this kind of air filter has low filtration efficiency, heavy weight, high cost and inconvenient maintenance, and has been gradually eliminated in automobile engines. The filter element of the paper dry air filter is made of resin-treated microporous filter paper. The filter paper is porous, loose, folded, has a certain mechanical strength and water resistance, and has the advantages of high filtration efficiency, simple structure, light weight and low cost. It has the advantages of low cost and convenient maintenance, etc. It is the most widely used air filter for automobiles at present.
Polyurethane filter element The filter element of the air filter is made of soft, porous, sponge-like polyurethane with strong adsorption capacity. This air filter has the advantages of a paper dry air filter, but has low mechanical strength and is used in car engines. more widely used.

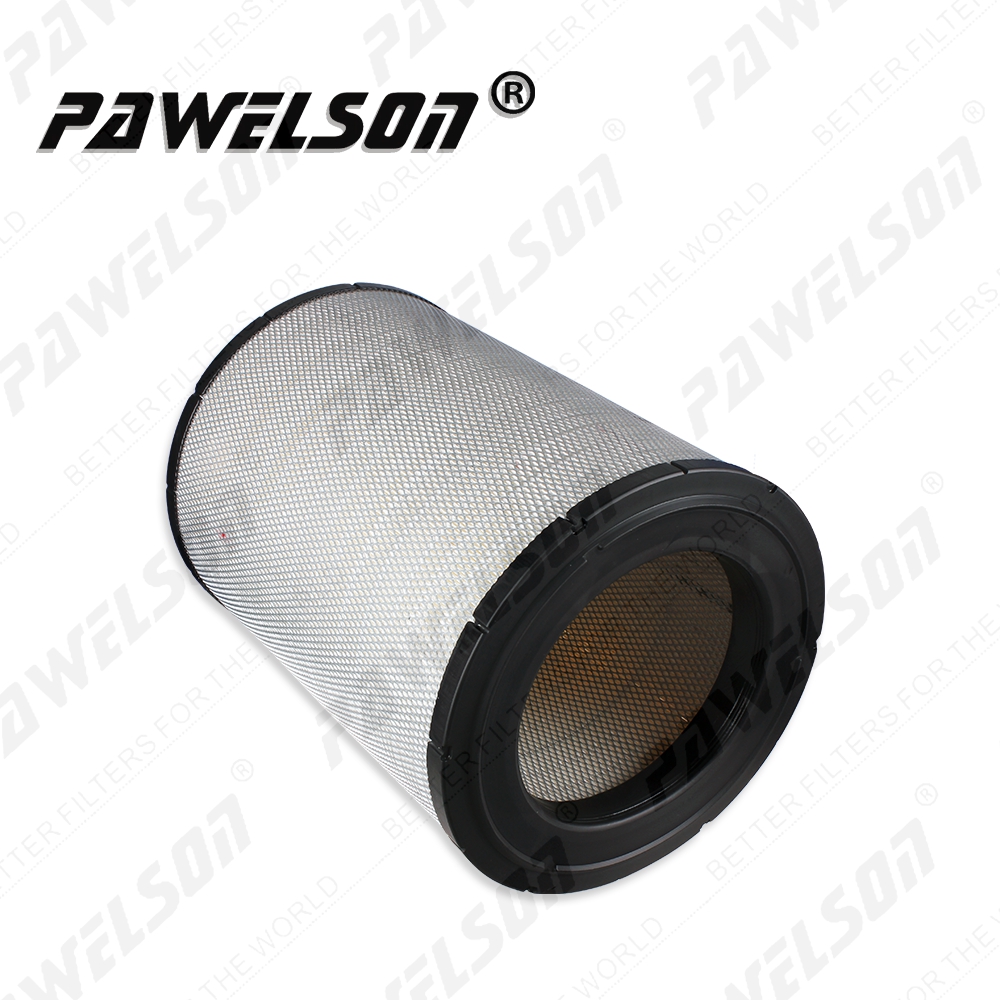

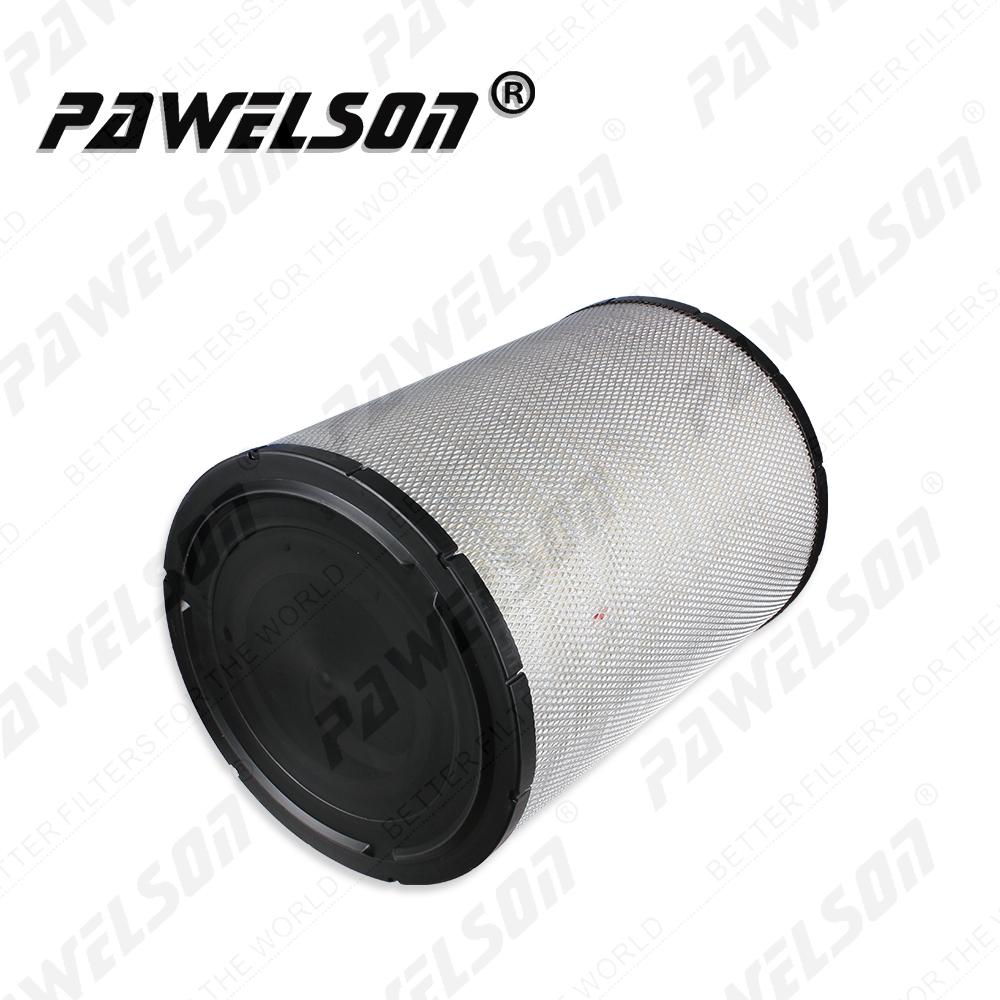

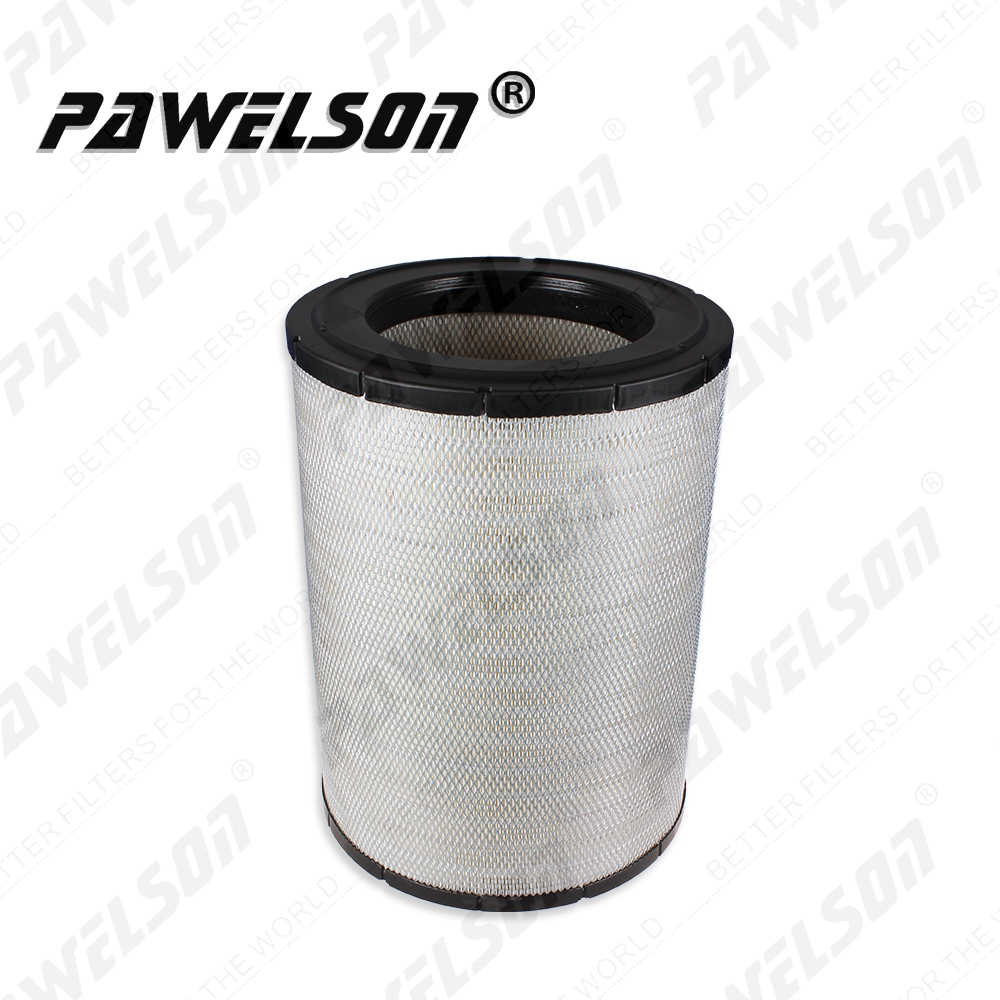

QS NO. | SK-1509A |
OEM NO. | ATLAS 3222188196 CLAAS 01421660 CLAAS 1421660 CASE 426020A1 VOLVO 11110217 |
CROSS REFERENCE | P781398 P784682 AF25830 |
APPLICATION | CLAAS 870 Silage machine |
OUTER DIAMETER | 360 (MM) |
INNER DIAMETER | 229 (MM) |
OVERALL HEIGHT | 479/490 (MM) |

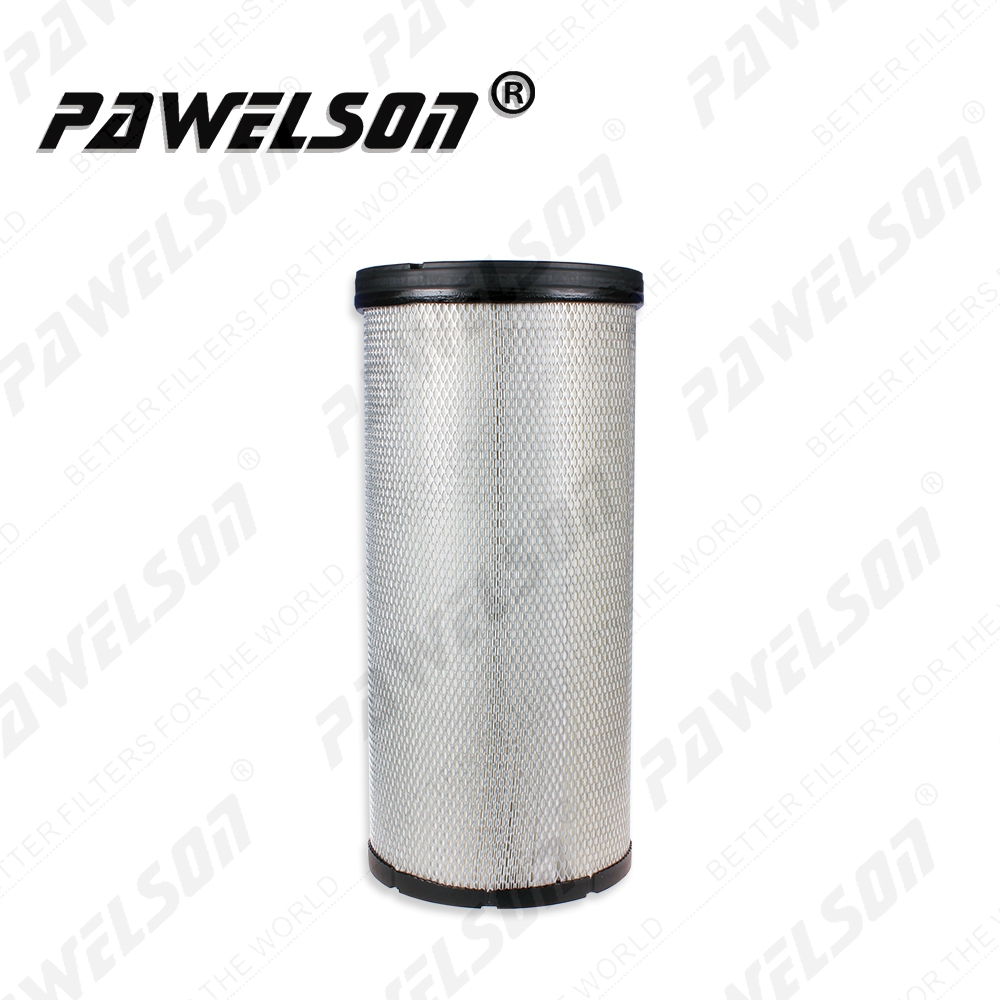

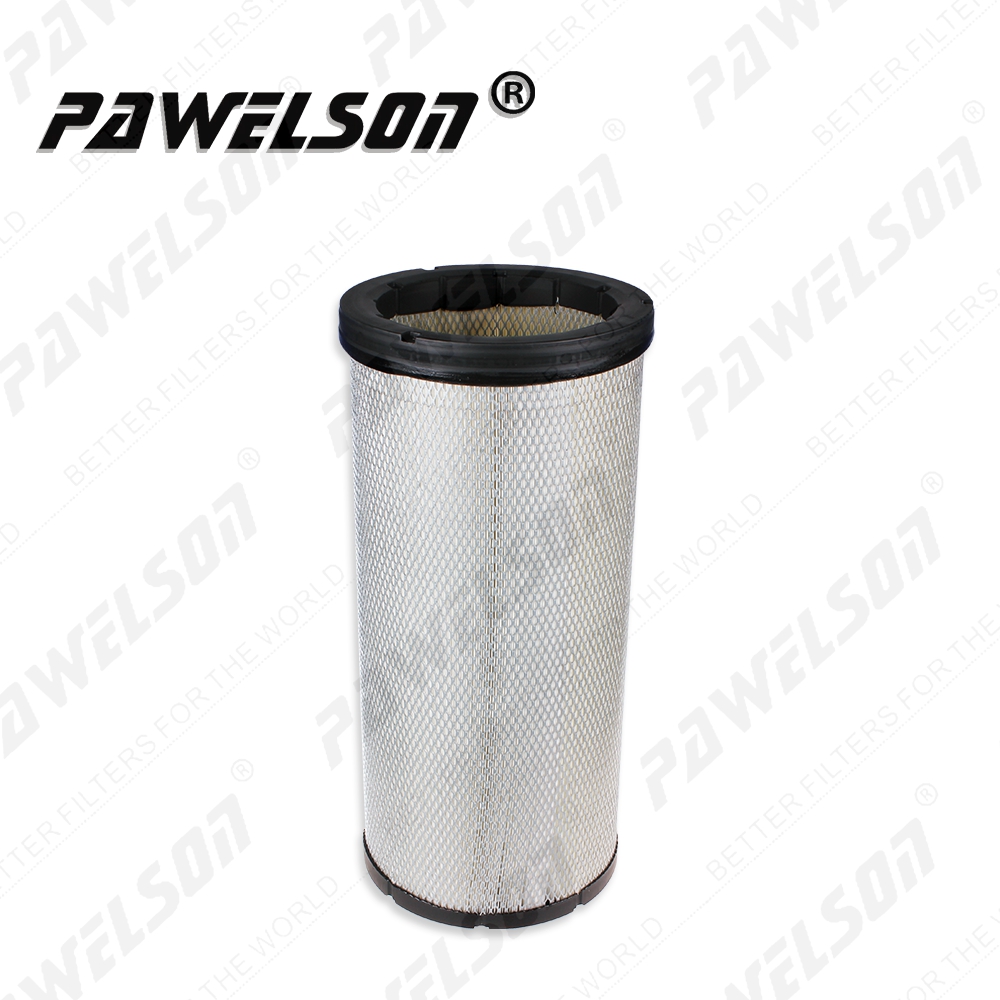

QS NO. | SK-1509B |
OEM NO. | VOLVO 11110218 CLAAS 01421670 LIEBHERR 10343996 CASE 426021A1 |
CROSS REFERENCE | P781399 AF25897 |
APPLICATION | CLAAS 870 Silage machine |
OUTER DIAMETER | 229 (MM) |
INNER DIAMETER | 175 (MM) |
OVERALL HEIGHT | 479 (MM) |
