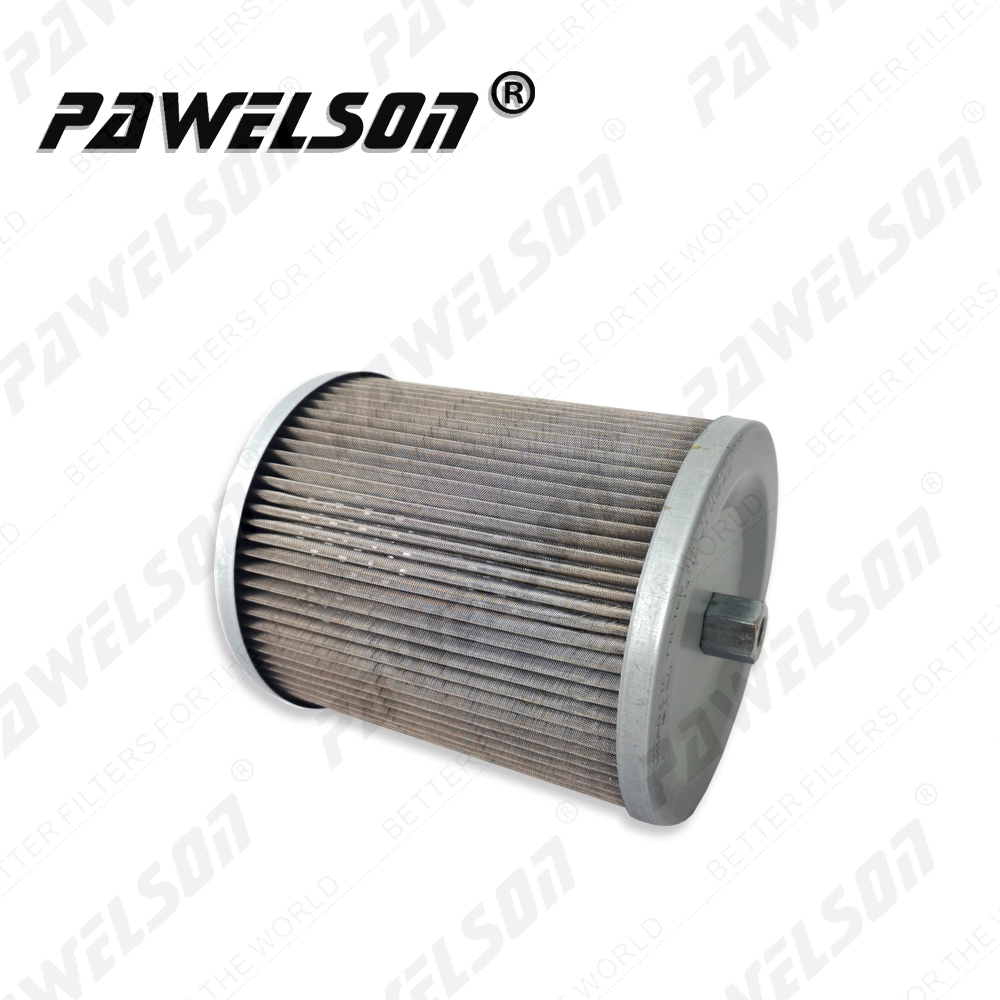

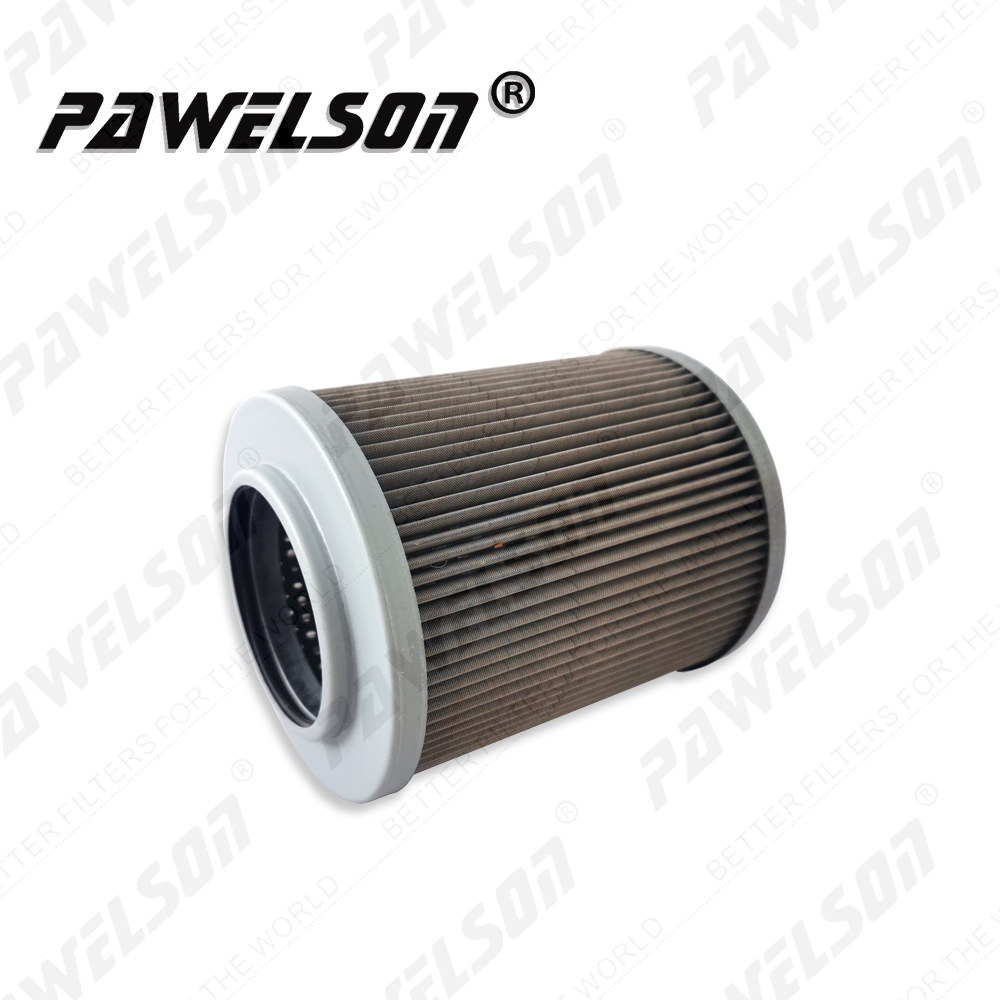

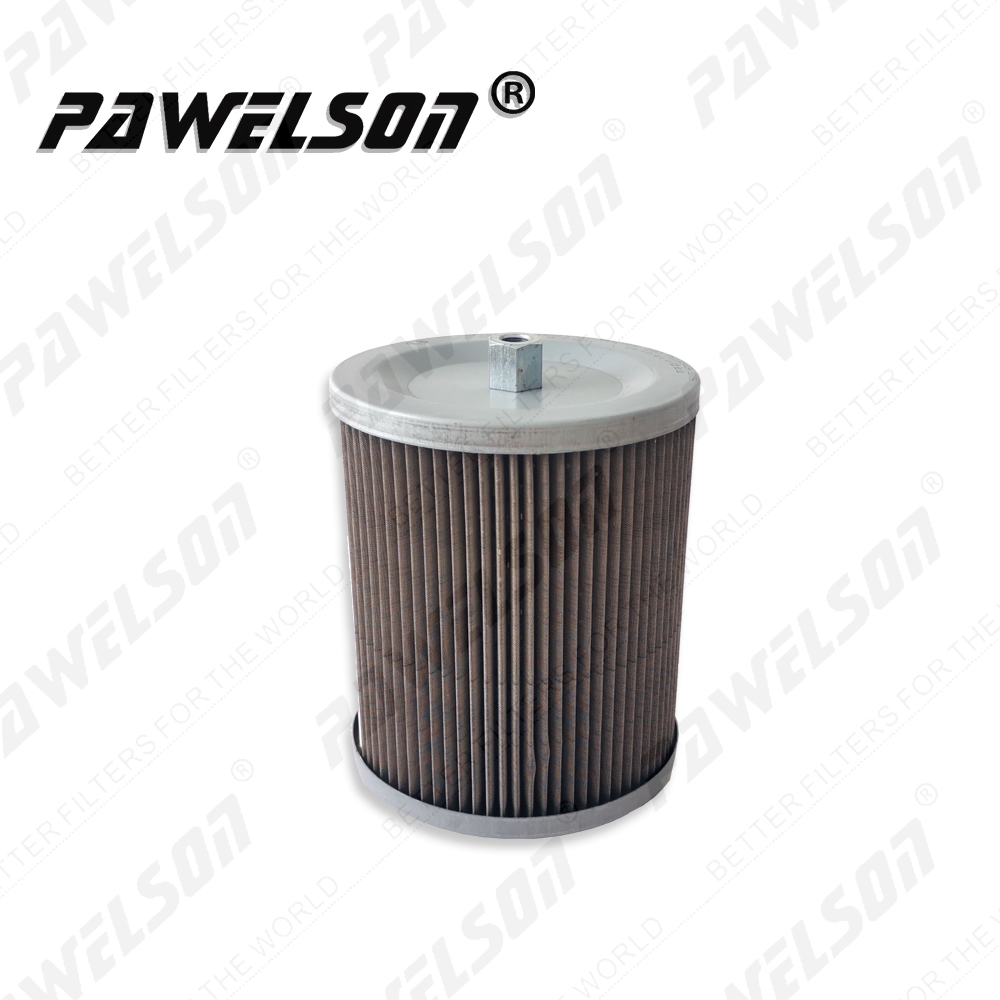

The hydraulic oil filter element is mainly used to filter oil in the hydraulic system, to remove the particulate debris and rubber impurities in the hydraulic system, to ensure the cleanliness of the hydraulic oil, so that the hydraulic system can operate normally. The pleated filter element has low differential pressure, strong dirt holding capacity and long service life. There are a variety of filtration precisions to choose from, with a wide range of applications. Good chemical compatibility, suitable for filtering strong acids, strong bases and organic solvents.

The pleated filter element is composed of polypropylene ultra-fine fiber membrane and polypropylene non-woven support diversion layer. Low differential pressure, strong dirt holding capacity and long service life. There are a variety of filtration precisions to choose from, with a wide range of applications. Good chemical compatibility, suitable for filtering strong acids, strong bases and organic solvents. Processed by hot melt welding technology, it does not contain any chemical adhesive, no leakage, and no secondary pollution.

Hydraulic oil filter

The hydraulic oil filter element is mainly used to filter oil in the hydraulic system, to remove the particulate debris and rubber impurities in the hydraulic system, to ensure the cleanliness of the hydraulic oil, so that the hydraulic system can operate normally.

Hydraulic oil return filter replacement steps

Relieve the pressure in the hydraulic tank and press and hold the vent valve until no gas is released.

Open the upper cover of the hydraulic oil tank, take out the oil return filter element and replace it, and carefully check whether there is metal powder or other impurities on the filter element, so as to understand the wear of the parts in the system.

Filter and oil change steps

Loosen the four bolts on the bottom cover directly below the engine; remove the bottom cover, and place a container under it to receive the drained oil, open the engine oil pan oil drain switch, and close the switch after draining the oil.

Use a belt wrench to unscrew the oil filter and replace the new oil filter. Please smear a thin amount of clean oil on the oil filter element sealing ring first, do not pre-fill oil in the new filter element.

To install the new filter, please turn it gently to the right by hand until the sealing ring is in contact with the filter element mounting seat, and then use the filter element wrench to tighten the filter element by three-quarters to one turn.
